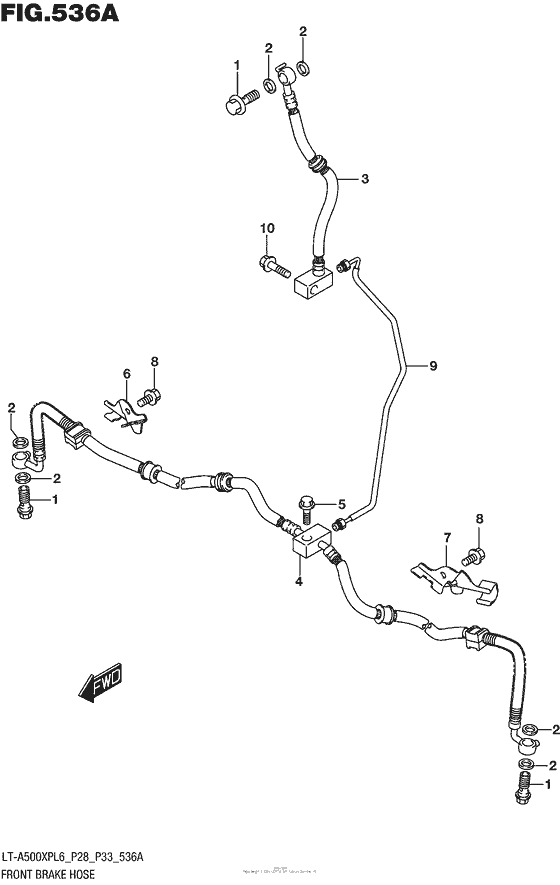

Front Brake Hose Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L6
- Engine Capacity
- 493
- Year
- 2016
- Sales region
- USA/Canada (P28/P33)
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10062-000 UNIONBolt, upper |
09360-10062-000 |
from US $4.64 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59480-31G30-000
HOSE,FR BRAKE NO.1
|
59480-31G30-000 |
— | ||
| replacement | |||||
|
3
|
3
59480-31G31-000 Hose |
59480-31G31-000 |
from US $57.04 |
||
|
4
|
4
59240-31G30-000
HOSE,FR BRAKE NO.2
|
59240-31G30-000 |
— | ||
| replacement | |||||
|
4
|
4
59240-31G31-000 Hose Comp,front Brake No.2 |
59240-31G31-000 |
from US $154.56 |
||
|
5
|
5
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
59261-31G00-000 CLAMP,FR BRAKE HOSE NO.2,R |
59261-31G00-000 |
US $6.04 |
||
|
7
|
7
59271-31G00-000 CLAMP,FR BRAKE HOSE NO.2,L |
59271-31G00-000 |
from US $6.04 |
||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
59250-31G10-000 PIPE,FR BRAKE |
59250-31G10-000 |
from US $9.68 |
||
|
10
|
10
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
