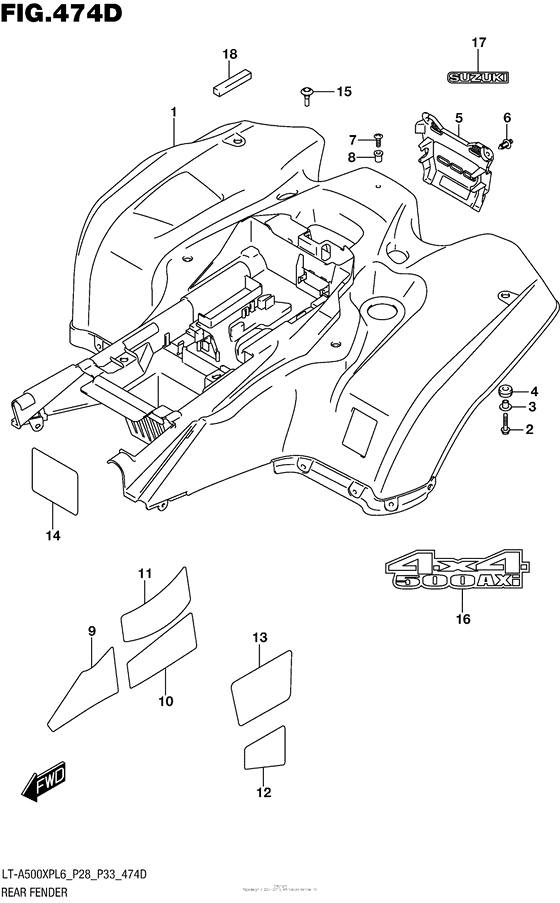

Rear Fender (Lt-A500Xpzl6 P33) Diagram Suzuki LT-A500 KingQuad 500AXi LE Power Steering
- Model code
- LT-A500XPZ L6
- Engine Capacity
- 493
- Year
- 2016
- Sales region
- USA/Canada (P28/P33)
- Model
- KingQuad 500 Power Steering
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-31G42-PHW FENDER,REAR |
63111-31G42-PHW |
from US $1,265.92 |
||
|
2
|
2
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
3
|
3
09169-06074-000 WASHERWasher |
09169-06074-000 |
from US $2.74 |
||
|
4
|
4
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
5
|
5
63251-31G00-000 COVER,RR |
63251-31G00-000 |
from US $14.53 |
||
|
6
|
6
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
7
|
7
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
8
|
8
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
9
|
9
63122-31G20-000 SHIELD,REAR FENDER |
63122-31G20-000 |
from US $30.89 |
||
|
10
|
10
63123-31G20-000 SHIELD,REAR FENDER |
63123-31G20-000 |
from US $26.93 |
||
|
11
|
11
63124-31G20-000 SHIELD,REAR FENDER |
63124-31G20-000 |
from US $19.87 |
||
|
12
|
12
63128-31G20-000
SHIELD,REAR FENDER
|
63128-31G20-000 |
— | ||
|
13
|
13
63126-31G20-000 SHIELD,REAR FENDER |
63126-31G20-000 |
from US $14.89 |
||
|
14
|
14
63127-31G20-000 SHIELD,REAR FENDER |
63127-31G20-000 |
from US $14.89 |
||
|
15
|
15
93115-03G00-000 PLUG,RR BOXPlug |
93115-03G00-000 |
US $6 |
||
|
16
|
16
68171-31GF0-JLJ
EMBLEM,RR FENDER
|
68171-31GF0-JLJ |
— | ||
| replacement | |||||
|
16
|
16
68171-31GF1-JLJ Emblem,rr Fender |
68171-31GF1-JLJ |
from US $15.09 |
||
|
17
|
17
68171-31GA0-1ZZ
EMBLEM,SUZUKI
|
68171-31GA0-1ZZ |
— | ||
| replacement | |||||
|
17
|
17
68171-31GA1-1ZZ Emblem,"suzuki" |
68171-31GA1-1ZZ |
from US $3.90 |
||
|
18
|
18
47437-31GA0-000
CUSHION,TOOL
|
47437-31GA0-000 |
— | ||
