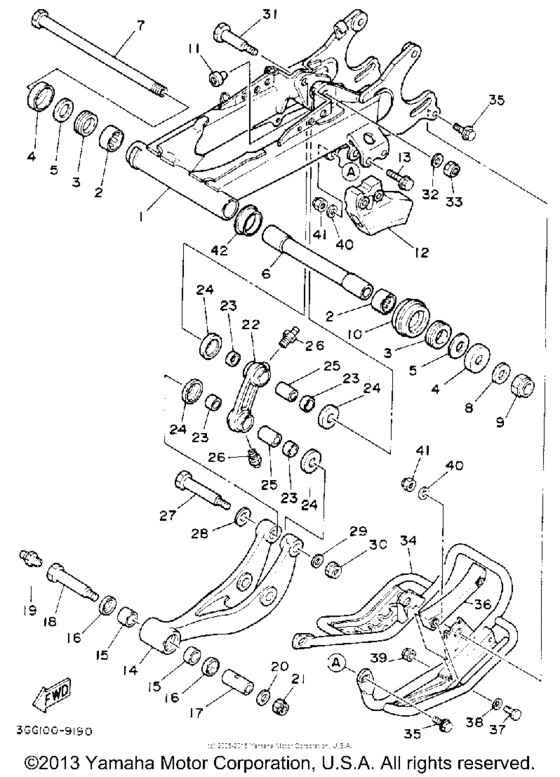

Swing arm Diagram Yamaha BANSHEE Banshee
- Model code
- YFZ350D MN
- Engine Capacity
- 347
- Year
- 1992
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Banshee
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3GG-22110-00-35 Rear Arm Comp |
3GG-22110-00-35 |
from US $629.35 |
||
| replacement | |||||
|
1
|
1
3GG-22110-00-P0 Rear Arm Comp |
3GG-22110-00-P0 |
from US $757.68 |
||
|
2
|
2
933-17322-31-00 Bearing |
933-17322-31-00 |
from US $24.48 |
||
|
3
|
3
93108-35004-00 Oil Seal (35-41-8)35-41-8 |
93108-35004-00 |
from US $7.37 |
||
|
4
|
4
2K6-22128-01-00 Cover, Thrust 1 |
2K6-22128-01-00 |
from US $29.19 |
||
|
5
|
5
90201-244A9-00 Washer, Plate |
90201-244A9-00 |
from US $7.37 |
||
| replacement | |||||
|
5
|
5
90201-247L2-00 Washer, Plate |
90201-247L2-00 |
from US $7.37 |
||
|
6
|
6
2GU-22184-00-00 Bush |
2GU-22184-00-00 |
from US $49.46 |
||
|
7
|
7
2GU-22141-00-00 Shaft, Pivot |
2GU-22141-00-00 |
from US $49.46 |
||
|
8
|
8
902-01160-F6-00 Washer, Plate |
902-01160-F6-00 |
from US $7.37 |
||
|
9
|
9
90185-16127-00 Nut, Self-Locking |
90185-16127-00 |
from US $6.38 |
||
| replacements | |||||
|
9
|
9
90185-16002-00 Nut, Self-Locking |
90185-16002-00 |
from US $6.38 |
||
|
9
|
9
95617-16100-00 Nut, U |
95617-16100-00 |
from US $13.88 |
||
|
10
|
10
2GU-22151-10-00 Seal, Guard |
2GU-22151-10-00 |
from US $13.90 |
||
|
11
|
11
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
12
|
12
5X4-22199-00-00 Support, Chain |
5X4-22199-00-00 |
from US $6.62 |
||
|
13
|
13
95811-08040-00 Bolt, Flange |
95811-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
14
|
14
1UY-2217A-00-00 Arm, Relay |
1UY-2217A-00-00 |
from US $372.37 |
||
|
15
|
15
90383-20033-00 Bush, Formed(1Rx) |
90383-20033-00 |
from US $4.96 |
||
|
16
|
16
931-09200-29-00
Oil Seal
|
931-09200-29-00 |
— | ||
| replacement | |||||
|
16
|
16
93109-20076-00 Oil Seal |
93109-20076-00 |
from US $1.98 |
||
|
17
|
17
90387-125N9-00 Collar |
90387-125N9-00 |
from US $9.21 |
||
| replacement | |||||
|
17
|
17
90387-12021-00 Collar |
90387-12021-00 |
from US $9.21 |
||
|
18
|
18
90109-10752-00 Bolt |
90109-10752-00 |
from US $19.27 |
||
|
19
|
19
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
20
|
20
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
21
|
21
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
22
|
22
3GG-2217F-00-00 Rod, Connecting 1 |
3GG-2217F-00-00 |
from US $65.35 |
||
|
23
|
23
90383-20032-00 Bush, Formed |
90383-20032-00 |
from US $4.53 |
||
|
24
|
24
55K-22129-00-00 Cover, Thrust 2 |
55K-22129-00-00 |
from US $7.79 |
||
|
25
|
25
90387-125N8-00 Collar |
90387-125N8-00 |
from US $9.63 |
||
|
26
|
26
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
27
|
27
90109-102A6-00 Bolt |
90109-102A6-00 |
from US $8.50 |
||
|
28
|
28
90201-120E6-00 Washer, Plate |
90201-120E6-00 |
from US $2.55 |
||
| replacement | |||||
|
28
|
28
90201-12027-00 Washer, Plate |
90201-12027-00 |
from US $2.32 |
||
|
29
|
29
90201-100E9-00 Washer, Plate |
90201-100E9-00 |
from US $2.55 |
||
| replacement | |||||
|
29
|
29
90201-10M05-00 Washer, Plate |
90201-10M05-00 |
from US $8.05 |
||
|
30
|
30
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
31
|
31
90109-10654-00 Bolt |
90109-10654-00 |
from US $7.65 |
||
|
32
|
32
90201-100F7-00 Washer (7A9) |
90201-100F7-00 |
from US $2.27 |
||
|
33
|
33
90185-10120-00 Nut, Self-Locking |
90185-10120-00 |
from US $3.83 |
||
|
34
|
34
3GG-2219X-00-00 Cover |
3GG-2219X-00-00 |
from US $166.30 |
||
|
35
|
35
958-21080-20-00
Bolt, Flange (95811-08020-00)
|
958-21080-20-00 |
— | ||
| replacement | |||||
|
35
|
35
958-17080-20-00 Bolt, Flange |
958-17080-20-00 |
from US $0.85 |
||
|
36
|
36
2GU-22153-00-00 Guard, Chain |
2GU-22153-00-00 |
from US $25.22 |
||
|
37
|
37
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
37
|
37
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
38
|
38
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
38
|
38
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
38
|
38
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
38
|
38
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
39
|
39
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
39
|
39
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
40
|
40
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
40
|
40
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
41
|
41
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
41
|
41
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
42
|
42
2GU-22155-00-00 Pipe |
2GU-22155-00-00 |
from US $10.48 |
||
