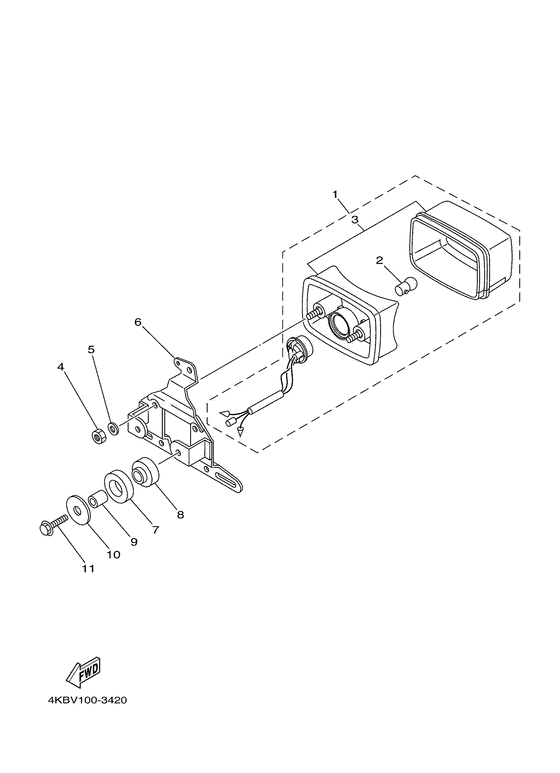

Taillight Diagram Yamaha BIG BEAR 400 Big Bear 400 4WD Professional
- Model code
- 4SHX
- Engine Capacity
- 386
- Year
- 2004
- Sales region
- Canada (010)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Big Bear 400 4WD Professional
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5KM-84710-00-00 Taillight Unit Assy |
5KM-84710-00-00 |
from US $48.08 |
||
| replacement | |||||
|
01
|
01
5KM-84710-01-00 Taillight Unit Assy |
5KM-84710-01-00 |
from US $42.42 |
||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
| replacement | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $4.96 |
||
|
03
|
03
5KM-8472C-10-00 Lens, Taillight |
5KM-8472C-10-00 |
from US $48.08 |
||
| replacement | |||||
|
03
|
03
5KM-84710-01-00 Taillight Unit Assy |
5KM-84710-01-00 |
from US $42.42 |
||
|
04
|
04
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
04
|
04
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
05
|
05
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
06
|
06
4KB-84702-00-00
Bracket, Taillight
|
4KB-84702-00-00 |
— | ||
|
07
|
07
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
08
|
08
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
09
|
09
90387-06595-00 Spacer |
90387-06595-00 |
from US $2.13 |
||
| replacement | |||||
|
09
|
09
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
10
|
10
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
11
|
11
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
11
|
11
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
11
|
11
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
