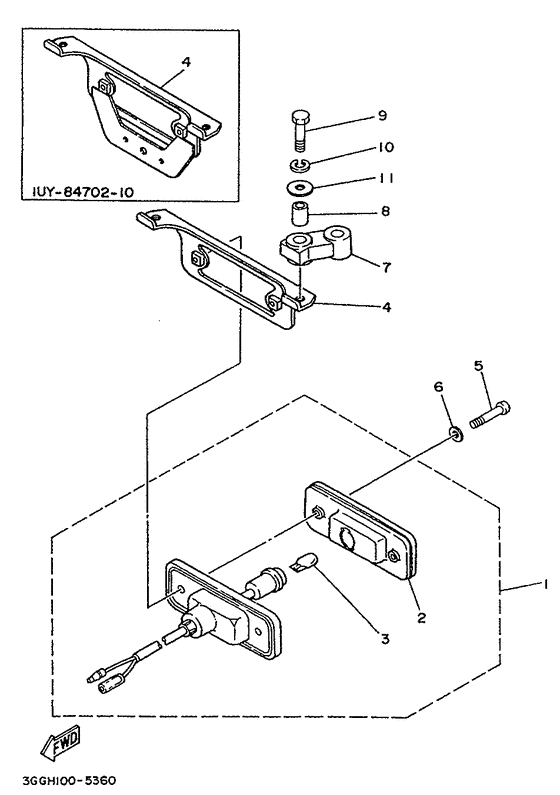

Taillight 1 (FOR USA,JAPAN.FRANCE) Diagram Yamaha BREEZE
- Model code
- 3FAH
- Engine Capacity
- 124
- Year
- 1997
- Sales region
- USA (010)
- Colour
- Yellowish Gray Solid 2 (YNS2; 0401)
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
38W-84710-00-00
Taillight Unit Assy
|
38W-84710-00-00 |
— | ||
|
02
|
02
38W-84721-00-00 Lens, Taillight |
38W-84721-00-00 |
US $13.36 |
||
|
03
|
03
3F9-84744-00-00 Bulb, Meter 12V 3.8W |
3F9-84744-00-00 |
from US $2.09 |
||
| replacement | |||||
|
03
|
03
3F9-84744-00-XX Bulb, Meter 12V3.8W |
3F9-84744-00-XX |
US $2.09 |
||
|
04
|
04
1UY-84702-00-00 Bracket, TaillightUr for usa, japan |
1UY-84702-00-00 |
US $35.93 |
||
| replacement | |||||
|
04
|
04
1UY-84702-10-00
Bracket, Taillight
Ur for usa, japan |
1UY-84702-10-00 |
— | ||
|
04
|
04
1UY-84702-10-00
Bracket, Taillight
Ur for france |
1UY-84702-10-00 |
— | ||
|
05
|
05
98507-04020-00 Screw, Pan Head |
98507-04020-00 |
from US $1.42 |
||
| replacement | |||||
|
05
|
05
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
06
|
06
92907-04600-00 Washer(Jf2) |
92907-04600-00 |
from US $1.07 |
||
|
07
|
07
38W-84736-00-00 Damper, Tail 1 |
38W-84736-00-00 |
from US $9.18 |
||
|
08
|
08
90387-06299-00 Collar |
90387-06299-00 |
from US $1.70 |
||
| replacements | |||||
|
08
|
08
903-87075-98-00 Collar (1T2) |
903-87075-98-00 |
from US $1.70 |
||
|
08
|
08
90387-06553-00 Collar (1M1) |
90387-06553-00 |
from US $1.98 |
||
|
09
|
09
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
10
|
10
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
11
|
11
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
11
|
11
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
11
|
11
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
