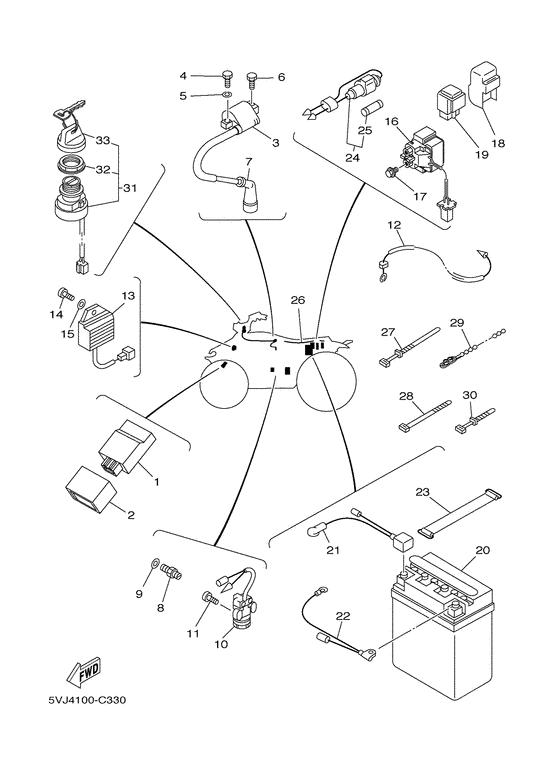

Electrical 1 Diagram Yamaha BREEZE
- Model code
- 5VJ4
- Engine Capacity
- 124
- Year
- 2004
- Sales region
- Japan (020)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3FA-85540-20-00 C.d.i. Unit Assy |
3FA-85540-20-00 |
from US $339.87 |
||
|
02
|
02
5HP-85546-00-00 Band |
5HP-85546-00-00 |
from US $10.20 |
||
|
03
|
03
4KJ-82310-10-00
Ignition Coil Assy
|
4KJ-82310-10-00 |
— | ||
| replacements | |||||
|
03
|
03
3KJ-82310-10-00
Ignition Coil Assy
|
3KJ-82310-10-00 |
— | ||
|
03
|
03
3KJ-82310-11-00
IGNITION COIL ASSY
|
3KJ-82310-11-00 |
— | ||
|
03
|
03
3KJ-82310-12-00 IGNITION COIL ASSY |
3KJ-82310-12-00 |
from US $50.67 |
||
|
03
|
03
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
03
|
03
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
03
|
03
3KJ-82310-13-00 IGNITION COIL ASSY |
3KJ-82310-13-00 |
from US $56.83 |
||
|
04
|
04
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
04
|
04
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
05
|
05
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
06
|
06
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
07
|
07
1UY-82370-20-00 Plug Cap Assy |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
07
|
07
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $23.82 |
||
|
07
|
07
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $19.69 |
||
|
08
|
08
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
08
|
08
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
09
|
09
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
10
|
10
3FA-82627-00-00 Switch |
3FA-82627-00-00 |
from US $78.34 |
||
|
11
|
11
90149-05283-00 Screw |
90149-05283-00 |
from US $2.55 |
||
|
12
|
12
3FA-82541-00-00 Wire, Lead |
3FA-82541-00-00 |
from US $11.76 |
||
|
13
|
13
5TH-81960-01-00 Rectifier & Regulator Assy |
5TH-81960-01-00 |
from US $119.78 |
||
|
14
|
14
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
16
|
16
3MW-81940-00-00 Starter Relay Assy |
3MW-81940-00-00 |
from US $60.21 |
||
| replacement | |||||
|
16
|
16
3MW-81940-01-00 Starter Relay Assy (Ms5E-661) |
3MW-81940-01-00 |
from US $93.17 |
||
|
17
|
17
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
18
|
18
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $34.06 |
||
|
19
|
19
2NL-81950-92-00 Relay Assy (2Nl-92) |
2NL-81950-92-00 |
from US $46.15 |
||
|
20
|
20
90793-25032-00
Battery Assy (Gs 12Cz-4A-2)
|
90793-25032-00 |
— | ||
|
21
|
21
3FA-82115-00-00 Wire, Plus Lead |
3FA-82115-00-00 |
from US $36.06 |
||
| replacement | |||||
|
21
|
21
1YW-82115-00-00 Wire, Plus Lead |
1YW-82115-00-00 |
from US $36.06 |
||
|
22
|
22
3FA-82116-00-00
Wire, Minus Lead
|
3FA-82116-00-00 |
— | ||
| replacements | |||||
|
22
|
22
1VJ-82116-00-00
Wire, Minus Lead
|
1VJ-82116-00-00 |
— | ||
|
22
|
22
3SX-82116-00-00
Wire, Minus Lead
|
3SX-82116-00-00 |
— | ||
|
23
|
23
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
24
|
24
3GB-82150-00-00 Fuse Holder Assy |
3GB-82150-00-00 |
from US $28.05 |
||
|
25
|
25
3GB-82151-00-00 Fuse |
3GB-82151-00-00 |
from US $1.78 |
||
| replacement | |||||
|
25
|
25
5G2-82151-00-00 Fuse |
5G2-82151-00-00 |
from US $3.68 |
||
|
26
|
26
3FA-82590-30-00 Wire Harness Assy |
3FA-82590-30-00 |
from US $147.73 |
||
|
27
|
27
3TB-83936-00-00 B53 Band, Switch Cord J |
3TB-83936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
28
|
28
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
| replacement | |||||
|
28
|
28
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
29
|
29
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
29
|
29
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
30
|
30
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
31
|
31
5LP-82510-00-00 Main Switch Assy |
5LP-82510-00-00 |
from US $70.74 |
||
| replacement | |||||
|
31
|
31
5LP-82510-01-00 MAIN SWITCH ASSY |
5LP-82510-01-00 |
from US $40.02 |
||
|
32
|
32
3HN-82569-00-00 Nut, Main Switch |
3HN-82569-00-00 |
from US $2.66 |
||
|
33
|
33
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
