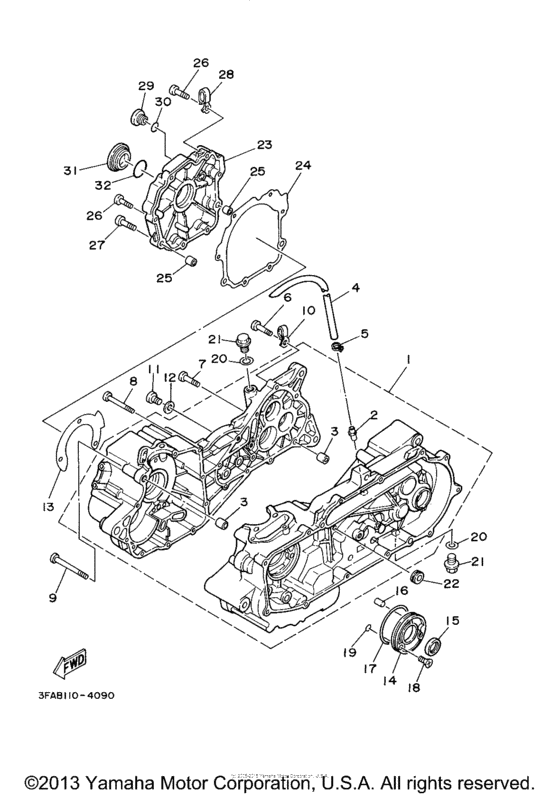

Crankcase Diagram Yamaha BREEZE
- Model code
- YFA1N
- Engine Capacity
- 124
- Year
- 2001
- Sales region
- USA
- Power
- 8,6 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Breeze
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FA-15100-00-00 Crankcase Assy |
3FA-15100-00-00 |
from US $852.38 |
||
|
2
|
2
59V-11167-00-00 Pipe, Breather 2 |
59V-11167-00-00 |
from US $5.10 |
||
|
3
|
3
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.42 |
||
|
4
|
4
90445-121F6-00 Hose (L700) |
90445-121F6-00 |
from US $10.91 |
||
|
5
|
5
904-67130-64-00 Clip |
904-67130-64-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.42 |
||
|
6
|
6
98507-06030-00 Screw, Pan Head |
98507-06030-00 |
US $2.13 |
||
| replacement | |||||
|
6
|
6
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
7
|
7
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
8
|
8
98507-06060-00 Screw, Pan Head |
98507-06060-00 |
from US $1.34 |
||
|
9
|
9
98507-06070-00 Screw, Pan Head |
98507-06070-00 |
from US $1.21 |
||
|
10
|
10
90465-08127-00 Clamp |
90465-08127-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
11
|
11
985-07080-12-00 Screw |
985-07080-12-00 |
from US $1.42 |
||
|
12
|
12
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
13
|
13
3FA-15462-10-00 Gasket, Crankcase Cover 3 |
3FA-15462-10-00 |
from US $3.64 |
||
|
14
|
14
50M-15418-00-00 Cover, Chain Case |
50M-15418-00-00 |
from US $18.20 |
||
|
15
|
15
93102-22294-00 Oil Seal |
93102-22294-00 |
from US $4.96 |
||
|
16
|
16
93605-18078-00 Pin, Dowel |
93605-18078-00 |
from US $2.13 |
||
|
17
|
17
93210-704A7-00 O-Ring |
93210-704A7-00 |
from US $2.32 |
||
|
18
|
18
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.34 |
||
|
19
|
19
93210-06564-00 O-Ring |
93210-06564-00 |
from US $1.50 |
||
| replacement | |||||
|
19
|
19
93210-07540-00 O-Ring |
93210-07540-00 |
from US $1.56 |
||
|
20
|
20
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
21
|
21
903-40141-32-00 Plug, Straight Screw |
903-40141-32-00 |
from US $1.42 |
||
|
22
|
22
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
23
|
23
3FA-15787-00-00 Adaptor |
3FA-15787-00-00 |
from US $110.11 |
||
|
24
|
24
3FA-15461-10-00 Gasket, Crankcase Cover 2 |
3FA-15461-10-00 |
from US $6.30 |
||
|
25
|
25
995-30100-14-00
Pin, Dowel
UR U49 U49 |
995-30100-14-00 |
— | ||
| replacements | |||||
|
25
|
25
99530-10114-00 Pin, DowelUR U49 U49 |
99530-10114-00 |
from US $1.66 |
||
|
25
|
25
995-10101-14-00
Pin, Dowel
UR U49 U49 |
995-10101-14-00 |
— | ||
|
25
|
25
99530-10114-00 Pin, DowelUR CALIFORNIA CAL |
99530-10114-00 |
from US $1.66 |
||
|
26
|
26
98507-06030-00 Screw, Pan Head |
98507-06030-00 |
US $2.13 |
||
| replacement | |||||
|
26
|
26
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
27
|
27
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
28
|
28
90465-08125-00 Clamp |
90465-08125-00 |
from US $2.41 |
||
| replacement | |||||
|
28
|
28
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
29
|
29
90340-14117-00 Plug, Straight Screw |
90340-14117-00 |
from US $4.11 |
||
|
30
|
30
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
31
|
31
90340-36078-00 Plug, Straight Screw |
90340-36078-00 |
from US $6.80 |
||
|
32
|
32
93210-357A3-00 O-Ring |
93210-357A3-00 |
US $1.70 |
||
| replacement | |||||
|
32
|
32
93210-35804-00 O-Ring |
93210-35804-00 |
from US $0.65 |
||
