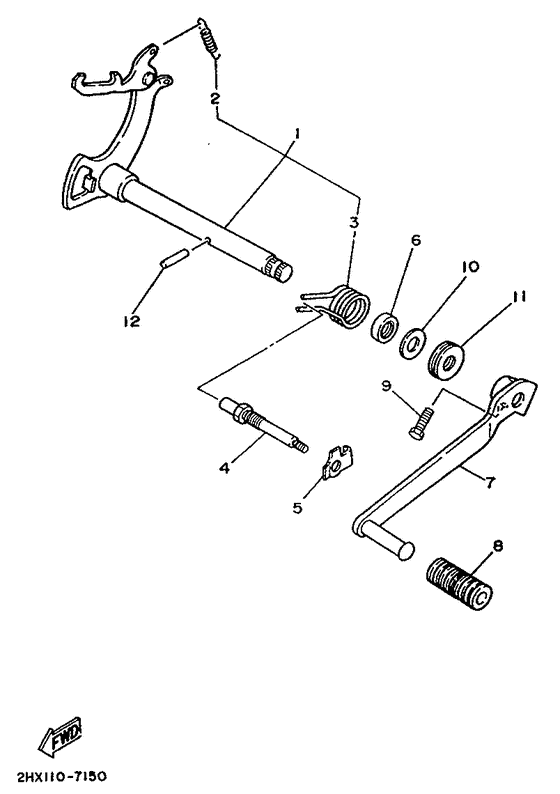

Shift shaft Diagram Yamaha CHAMP
- Model code
- 3GB7
- Engine Capacity
- 100
- Year
- 1991
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Champ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22F-18101-01-00 Shift Shaft Assy |
22F-18101-01-00 |
from US $47.43 |
||
| replacement | |||||
|
01
|
01
22F-18101-03-00 Shift Shaft Assy |
22F-18101-03-00 |
from US $64.42 |
||
|
02
|
02
90506-08122-00 Spring, Tension |
90506-08122-00 |
from US $2.13 |
||
|
03
|
03
90508-32563-00 Spring, Torsion |
90508-32563-00 |
from US $6.23 |
||
|
04
|
04
2HX-18127-00-00
Stopper, Screw
|
2HX-18127-00-00 |
— | ||
|
05
|
05
90215-08264-00
Washer, Lock
|
90215-08264-00 |
— | ||
|
06
|
06
93102-12106-00 Oil Seal (Sd 12-22-5 Hs) |
93102-12106-00 |
from US $2.98 |
||
| replacement | |||||
|
06
|
06
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
07
|
07
2HX-18111-00-00 Shift Pedal Assy |
2HX-18111-00-00 |
from US $23.71 |
||
| replacement | |||||
|
07
|
07
2HX-18110-10-00 Shift Pedal Assy |
2HX-18110-10-00 |
from US $39.26 |
||
|
08
|
08
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
09
|
09
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
09
|
09
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
10
|
10
90201-127F4-00 Washer, Plate |
90201-127F4-00 |
from US $3.40 |
||
| replacement | |||||
|
10
|
10
90201-126L0-00 Washer, Plate (90201-127F4-00) |
90201-126L0-00 |
from US $3.40 |
||
|
11
|
11
93341-21213-00 Bearing |
93341-21213-00 |
from US $11.95 |
||
| replacement | |||||
|
11
|
11
933-40212-09-00 Bearing, Thrust(2Fl) |
933-40212-09-00 |
from US $13.88 |
||
|
12
|
12
93604-20156-00 Pin, Dowel |
93604-20156-00 |
from US $1.56 |
||
