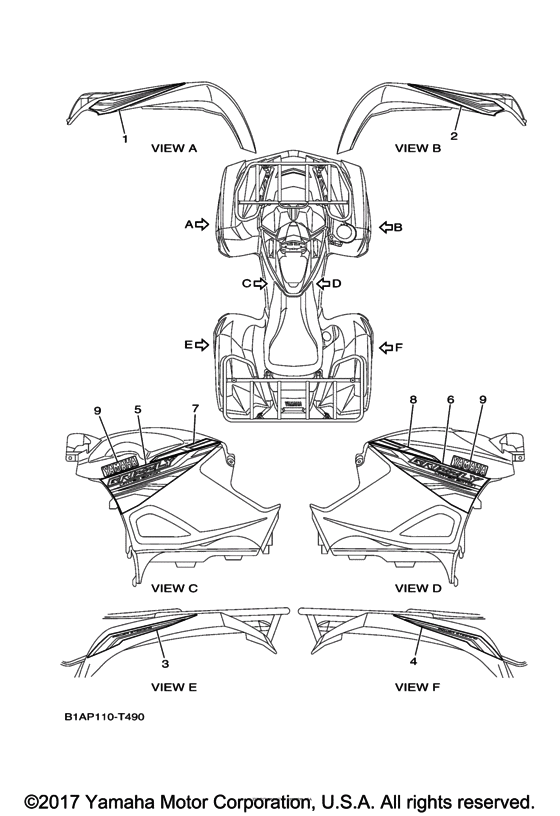

Graphics Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS Limited Edition
- Model code
- B1AP
- Engine Capacity
- 700
- Year
- 2018
- Sales region
- USA
- Базовая модель
- YFM70GPLJS
- Colour
- Light Gray Metallic P
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS Limited Edition
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
B1A-F165E-10-00 GRAPHIC, FRONT |
B1A-F165E-10-00 |
US $65.34 |
||
|
2
|
2
B1A-F165F-10-00 GRAPHIC, FRONT |
B1A-F165F-10-00 |
US $66.10 |
||
|
3
|
3
B1A-F165G-10-00 GRAPHIC, REAR (LH) |
B1A-F165G-10-00 |
US $14.09 |
||
|
4
|
4
B1A-F165H-10-00 GRAPHIC, REAR (RH) |
B1A-F165H-10-00 |
US $14.09 |
||
|
5
|
5
B1A-F1781-60-00 EMBLEM 1 |
B1A-F1781-60-00 |
US $24.17 |
||
|
6
|
6
B1A-F1782-60-00 EMBLEM 2 |
B1A-F1782-60-00 |
US $24.17 |
||
|
7
|
7
B1A-F1784-10-00 EMBLEM 4 |
B1A-F1784-10-00 |
US $10.19 |
||
|
8
|
8
B1A-F1785-10-00 EMBLEM 5 |
B1A-F1785-10-00 |
US $10.19 |
||
|
9
|
9
5UH-F173B-21-00 Emblem 3D |
5UH-F173B-21-00 |
from US $51.77 |
