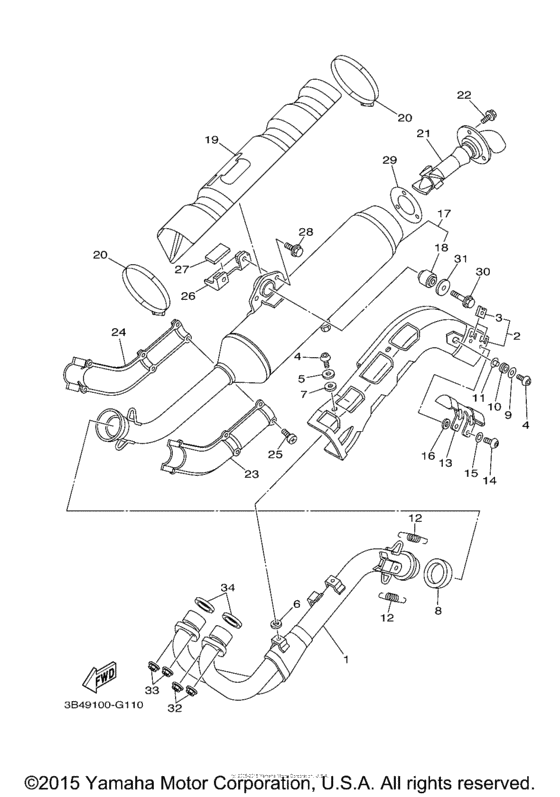

Exhaust Diagram Yamaha GRIZZLY 700 Grizzly 700 EPS
- Model code
- 3B49
- Engine Capacity
- 700
- Year
- 2008
- Sales region
- USA
- Базовая модель
- YFM7FGPXR
- Colour
- Dark Purpulish Blue Solid N/Pastel Deep Green/Romantique Rouge
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Grizzly 700 EPS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3B4-14611-01-00
Pipe, Exhaust 1
|
3B4-14611-01-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99039-90-00
Pipe, Exhaust 1
|
999-99039-90-00 |
— | ||
|
2
|
2
3B4-14627-01-00
Cover, Exhaust
|
3B4-14627-01-00 |
— | ||
| replacement | |||||
|
2
|
2
3B4-14627-02-00 Cover, Exhaust |
3B4-14627-02-00 |
from US $72.43 |
||
|
3
|
3
90183-060A2-00 Nut, Spring |
90183-060A2-00 |
from US $1.70 |
||
|
4
|
4
92012-06016-00 Bolt, Button Head |
92012-06016-00 |
from US $1.56 |
||
|
5
|
5
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
6
|
6
90201-05022-00 Washer, Plate |
90201-05022-00 |
from US $5.81 |
||
|
7
|
7
90201-05019-00 Washer, Plate |
90201-05019-00 |
from US $3.40 |
||
|
8
|
8
3B4-14714-10-00 Gasket, Muffler |
3B4-14714-10-00 |
from US $19.84 |
||
| replacement | |||||
|
8
|
8
1HP-E4714-00-00 Gasket, Muffler |
1HP-E4714-00-00 |
from US $19.84 |
||
|
9
|
9
90201-06081-00 Washer, Plate |
90201-06081-00 |
from US $1.15 |
||
|
10
|
10
90480-17001-00 Grommet |
90480-17001-00 |
from US $6.66 |
||
|
11
|
11
90387-08083-00 Collar |
90387-08083-00 |
from US $7.79 |
||
|
12
|
12
905-06300-06-00 Spring, Tension |
905-06300-06-00 |
from US $11.80 |
||
|
13
|
13
3B4-14758-01-00
Protector, Silencer
|
3B4-14758-01-00 |
— | ||
| replacement | |||||
|
13
|
13
1HP-E4758-00-00 Protector, Silencer |
1HP-E4758-00-00 |
from US $11.18 |
||
|
14
|
14
92012-06012-00 Bolt, Button Head |
92012-06012-00 |
from US $1.56 |
||
|
15
|
15
929-02062-00-00
Washer, Plain
|
929-02062-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
16
|
16
90201-05015-00 Washer, Plate |
90201-05015-00 |
from US $2.69 |
||
|
17
|
17
3B4-W1471-10-00
Muffler Comp. 1
|
3B4-W1471-10-00 |
— | ||
| replacement | |||||
|
17
|
17
1HP-E4703-00-00 Muffler Comp. 1 |
1HP-E4703-00-00 |
from US $525.40 |
||
|
18
|
18
5KM-27414-01-00
Damper, Footrest
|
5KM-27414-01-00 |
— | ||
| replacement | |||||
|
18
|
18
1HP-F7414-00-00 Damper, Footrest |
1HP-F7414-00-00 |
from US $16.29 |
||
|
19
|
19
3B4-14718-10-00
Protector, Muffler 1
|
3B4-14718-10-00 |
— | ||
| replacement | |||||
|
19
|
19
1HP-E4718-00-00 Protector, Muffler 1 |
1HP-E4718-00-00 |
from US $49.27 |
||
|
20
|
20
90450-99010-00 Hose Clamp Assy |
90450-99010-00 |
from US $16.29 |
||
|
21
|
21
3B4-14752-00-00
Pipe, Outlet
|
3B4-14752-00-00 |
— | ||
| replacement | |||||
|
21
|
21
1HP-E4752-00-00 Pipe, Outlet |
1HP-E4752-00-00 |
from US $89.95 |
||
|
22
|
22
95022-06008-00 Bolt, Flange |
95022-06008-00 |
from US $1.42 |
||
|
23
|
23
3B4-1471C-00-00
Protector Assy 1
|
3B4-1471C-00-00 |
— | ||
| replacement | |||||
|
23
|
23
1HP-E471C-00-00 Protector Assy 1 |
1HP-E471C-00-00 |
from US $51.14 |
||
|
24
|
24
3B4-1472C-00-00
Protector Assy., 2
|
3B4-1472C-00-00 |
— | ||
| replacement | |||||
|
24
|
24
1HP-E472C-00-00 Protector Assy., 2 |
1HP-E472C-00-00 |
from US $51.70 |
||
|
25
|
25
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.55 |
||
| replacement | |||||
|
25
|
25
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
26
|
26
3B4-1477U-00-00 Stopper 1 |
3B4-1477U-00-00 |
from US $20.54 |
||
| replacement | |||||
|
26
|
26
1HP-E477U-00-00 Stopper 1 |
1HP-E477U-00-00 |
from US $20.54 |
||
|
27
|
27
3B4-14733-00-00 Mat 1 |
3B4-14733-00-00 |
from US $10.20 |
||
| replacement | |||||
|
27
|
27
1HP-E4733-00-00 Mat 1 |
1HP-E4733-00-00 |
US $20.72 |
||
|
28
|
28
95822-08012-00 Bolt, Flange |
95822-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
28
|
28
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
29
|
29
3B4-14755-00-00 Gasket, Silencer |
3B4-14755-00-00 |
from US $13.46 |
||
| replacement | |||||
|
29
|
29
1HP-E4755-00-00 Gasket, Silencer |
1HP-E4755-00-00 |
from US $13.46 |
||
|
30
|
30
95812-08040-00 Bolt, Flange |
95812-08040-00 |
from US $1.07 |
||
| replacement | |||||
|
30
|
30
95817-08040-00 Bolt, Flange |
95817-08040-00 |
from US $1.07 |
||
|
31
|
31
3B4-14759-00-00 Washer |
3B4-14759-00-00 |
from US $13.32 |
||
| replacement | |||||
|
31
|
31
3B4-14759-01-00 Washer |
3B4-14759-01-00 |
from US $13.32 |
||
|
32
|
32
901-79080-29-00 Nut |
901-79080-29-00 |
from US $8.50 |
||
|
33
|
33
957-02085-00-00
Nut, Flange
|
957-02085-00-00 |
— | ||
| replacements | |||||
|
33
|
33
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
33
|
33
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
33
|
33
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
|
34
|
34
3YF-14613-01-00 Gasket, Exhaust Pipe |
3YF-14613-01-00 |
from US $3.04 |
||
