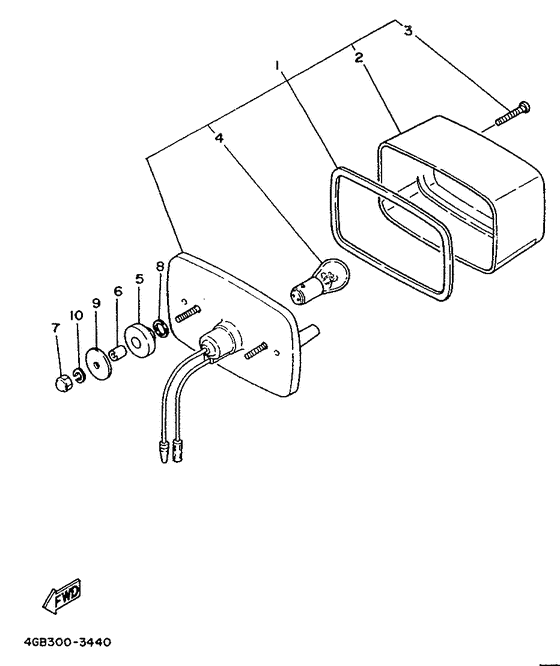

Taillight (FOR EUROPE) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4GB2
- Engine Capacity
- 401
- Year
- 1993
- Sales region
- Europe (General) (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
52H-84710-00-00 Taillight Unit Assembly |
52H-84710-00-00 |
from US $59.41 |
||
|
02
|
02
21V-84721-00-00 Lens, Taillight |
21V-84721-00-00 |
from US $32.87 |
||
|
03
|
03
97780-40130-00 Ybs83-430 Screw,panh. Tapping |
97780-40130-00 |
from US $2.13 |
||
|
04
|
04
3GD-84714-00-00 Bulb |
3GD-84714-00-00 |
US $10.74 |
||
| replacement | |||||
|
04
|
04
3GD-84714-00-XX Bulb (12V-7.5W) |
3GD-84714-00-XX |
US $10.74 |
||
|
05
|
05
90480-14088-00 Grommet |
90480-14088-00 |
from US $1.98 |
||
|
06
|
06
90560-07007-00 Spacer |
90560-07007-00 |
from US $2.13 |
||
|
07
|
07
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
07
|
07
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.07 |
||
|
08
|
08
90202-14077-00 Washer, Plate |
90202-14077-00 |
from US $2.13 |
||
|
09
|
09
90201-06074-00 Washer, Plate |
90201-06074-00 |
from US $1.56 |
||
|
10
|
10
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
