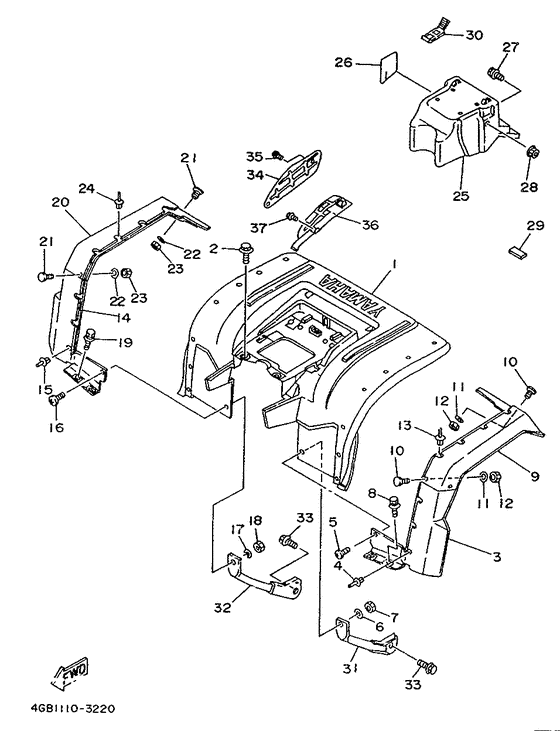

Rear fender Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4GB3
- Engine Capacity
- 401
- Year
- 1993
- Sales region
- Oceania (999)
- Colour
- Dark Grayish Cyan Solid 4 (DNCS4; 0385)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GB-21611-10-00
Fender, Rear
Dncs 4 |
4GB-21611-10-00 |
— | ||
| replacements | |||||
|
01
|
01
999-99999-99-00
Not Available
Dncs 4 |
999-99999-99-00 |
— | ||
|
01
|
01
4GB-21611-11-00
Fender, Rear
Dncs 4 |
4GB-21611-11-00 |
— | ||
|
01
|
01
4UH-21611-D0-00
Fender, Rear
Dncs 4 |
4UH-21611-D0-00 |
— | ||
|
02
|
02
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
02
|
02
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
02
|
02
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
03
|
03
4GB-21621-00-00 Flap |
4GB-21621-00-00 |
US $132.95 |
||
| replacement | |||||
|
03
|
03
4GB-21621-01-00 Flap |
4GB-21621-01-00 |
US $125.48 |
||
|
04
|
04
90267-63047-00 Rivet, Blind |
90267-63047-00 |
from US $2.13 |
||
|
05
|
05
90154-05006-00 Screw, Binding |
90154-05006-00 |
from US $3.12 |
||
|
06
|
06
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
07
|
07
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
07
|
07
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
08
|
08
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
08
|
08
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
09
|
09
4GB-2162H-00-00
Flap 3
|
4GB-2162H-00-00 |
— | ||
|
10
|
10
90154-05052-00 Screw, Binding |
90154-05052-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.70 |
||
|
11
|
11
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
12
|
12
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
12
|
12
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
13
|
13
90267-63047-00 Rivet, Blind |
90267-63047-00 |
from US $2.13 |
||
|
14
|
14
4GB-21691-00-00 Flap |
4GB-21691-00-00 |
US $126.59 |
||
| replacement | |||||
|
14
|
14
4GB-21691-01-00 Flap |
4GB-21691-01-00 |
US $125.48 |
||
|
15
|
15
90267-63047-00 Rivet, Blind |
90267-63047-00 |
from US $2.13 |
||
|
16
|
16
90154-05006-00 Screw, Binding |
90154-05006-00 |
from US $3.12 |
||
|
17
|
17
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
18
|
18
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
19
|
19
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
19
|
19
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
20
|
20
4GB-2162J-00-00
Flap 4
|
4GB-2162J-00-00 |
— | ||
|
21
|
21
90154-05052-00 Screw, Binding |
90154-05052-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90154-05011-00 Screw, Binding |
90154-05011-00 |
from US $1.70 |
||
|
22
|
22
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
23
|
23
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
23
|
23
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
24
|
24
90267-63047-00 Rivet, Blind |
90267-63047-00 |
from US $2.13 |
||
|
25
|
25
1YW-2160A-10-00
Box Comp
Ur for europe |
1YW-2160A-10-00 |
— | ||
|
25
|
25
1YW-2160A-00-00 Box CompUr fur canada, oceania |
1YW-2160A-00-00 |
from US $131.23 |
||
| replacements | |||||
|
25
|
25
1YW-2160A-20-00 Box CompUr fur canada, oceania |
1YW-2160A-20-00 |
from US $131.23 |
||
|
25
|
25
999-99999-99-00
Not Available
Ur fur canada, oceania |
999-99999-99-00 |
— | ||
|
26
|
26
4GB-21652-00-00 Protector |
4GB-21652-00-00 |
from US $7.34 |
||
|
27
|
27
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
27
|
27
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
28
|
28
95702-06600-00 Nut, Flange |
95702-06600-00 |
from US $3.68 |
||
| replacement | |||||
|
28
|
28
95707-06600-00 Nut, W/ Washer |
95707-06600-00 |
from US $3.68 |
||
|
29
|
29
1YW-21638-00-00 Damper |
1YW-21638-00-00 |
from US $2.50 |
||
|
30
|
30
59V-21646-00-00 Band |
59V-21646-00-00 |
from US $5.24 |
||
|
31
|
31
2HR-21613-00-00
Stay, Fender 1
|
2HR-21613-00-00 |
— | ||
|
32
|
32
2HR-21614-00-00
Stay, Fender 2
|
2HR-21614-00-00 |
— | ||
|
33
|
33
958-16060-12-00
Bolt, Flange(2Xj)
|
958-16060-12-00 |
— | ||
| replacement | |||||
|
33
|
33
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
34
|
34
2HR-2163E-00-00
Cover, Rear Fender 2
|
2HR-2163E-00-00 |
— | ||
|
35
|
35
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
35
|
35
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
35
|
35
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
|
36
|
36
2HR-2163F-00-00 Cover, Rear Fender 3 |
2HR-2163F-00-00 |
from US $74.35 |
||
| replacement | |||||
|
36
|
36
2HR-2163F-01-00 Cover, Rear Fender 3 |
2HR-2163F-01-00 |
from US $63.68 |
||
|
37
|
37
90119-06042-00 Bolt, With Washer |
90119-06042-00 |
from US $1.70 |
||
| replacements | |||||
|
37
|
37
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
37
|
37
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
