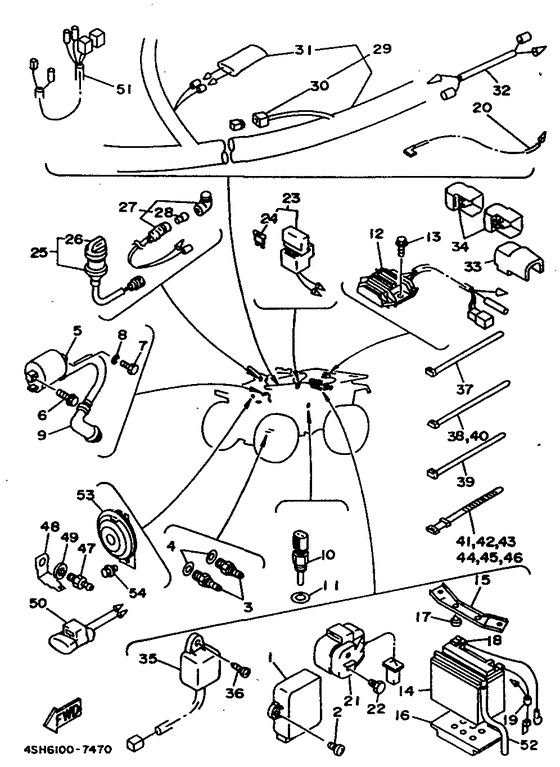

Electrical 1 Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 4SH6
- Engine Capacity
- 401
- Year
- 1997
- Sales region
- General (020)
- Colour
- Moss Green (MSG; 00V8)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4SH-85540-00-00
C.d.i. Unit Assy
|
4SH-85540-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4KB-85540-30-00 C.d.i. Unit Assy |
4KB-85540-30-00 |
from US $574.20 |
||
|
02
|
02
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
03
|
03
3G8-82540-00-00
Neutral Switch Assy
|
3G8-82540-00-00 |
— | ||
|
04
|
04
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
05
|
05
3GD-82310-10-00 Ignition Coil Assy |
3GD-82310-10-00 |
from US $135.67 |
||
|
06
|
06
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
07
|
07
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
08
|
08
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
09
|
09
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
09
|
09
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $28.76 |
||
|
10
|
10
4GB-83591-10-00 Thermo Unit |
4GB-83591-10-00 |
from US $90.92 |
||
|
11
|
11
90201-12172-00 Washer, Plate |
90201-12172-00 |
from US $1.42 |
||
|
12
|
12
4KB-81960-01-00 Rectifier & Regulator Assy |
4KB-81960-01-00 |
from US $183.75 |
||
| replacement | |||||
|
12
|
12
4KB-81960-02-00 Rectifier & Regulator Assy |
4KB-81960-02-00 |
from US $183.75 |
||
|
13
|
13
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
14
|
14
4SH-82100-00-00
Battery Assembly (Ytx20L-Bs)
Ur for usa |
4SH-82100-00-00 |
— | ||
| replacements | |||||
|
14
|
14
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
Ur for usa |
YTX-20LBS-00-00 |
— | ||
|
14
|
14
BTY-GTX20-LB-S0
Battery gtx-20l-bs
Ur for usa |
BTY-GTX20-LB-S0 |
— | ||
|
14
|
14
4SH-82100-20-00
Battery Assy (Ytx20L-Bs)
Ur for canada, europe |
4SH-82100-20-00 |
— | ||
| replacements | |||||
|
14
|
14
BTY-GTX20-LB-S0
Battery gtx-20l-bs
Ur for canada, europe |
BTY-GTX20-LB-S0 |
— | ||
|
14
|
14
YTX-20LBS-00-00
Bat Ytx20L-Bs (Ptx20L-Bs) Yu
Ur for canada, europe |
YTX-20LBS-00-00 |
— | ||
|
14
|
14
24W-82110-09-00
Yb14Aa2 Yuasa Batte
Ur for oceania, s.africa |
24W-82110-09-00 |
— | ||
| replacements | |||||
|
14
|
14
YB1-4AA20-00-00
Bat Yb14A-A2 (Cb14A-A2) Yu
Ur for oceania, s.africa |
YB1-4AA20-00-00 |
— | ||
|
14
|
14
CB1-4A200-00-00
YAMAHA BANNER 3 X 8
Ur for oceania, s.africa |
CB1-4A200-00-00 |
— | ||
|
14
|
14
CB1-4AA20-00-00
TENT - EZ UP - YAMAH
Ur for oceania, s.africa |
CB1-4AA20-00-00 |
— | ||
|
15
|
15
4SH-82128-00-00 Bracket, Battery |
4SH-82128-00-00 |
US $27.38 |
||
|
16
|
16
4BD-21639-00-00 Damper 2Ur foe oceania, s.africa |
4BD-21639-00-00 |
from US $16.97 |
||
|
16
|
16
4SH-21639-00-00 Damper 2Ur for usa,canada, europe |
4SH-21639-00-00 |
from US $26.29 |
||
|
17
|
17
4G0-24723-00-00
Damper, Seat
|
4G0-24723-00-00 |
— | ||
|
18
|
18
4SH-82115-00-00
Wire, Plus Lead
Ur for usa,canada, europe |
4SH-82115-00-00 |
— | ||
|
18
|
18
4SH-82115-10-00
Wire, Plus Lead
Ur for oceania, s.africa |
4SH-82115-10-00 |
— | ||
|
19
|
19
4SH-82116-00-00
Wire, Minus Lead
Ur for usa,canada,europe |
4SH-82116-00-00 |
— | ||
| replacement | |||||
|
19
|
19
4WV-82116-00-00
Wire, Minus Lead
Ur for usa,canada,europe |
4WV-82116-00-00 |
— | ||
|
19
|
19
4SH-82116-10-00
Wire, Minus Lead
Ur for oceania, s.africa |
4SH-82116-10-00 |
— | ||
| replacement | |||||
|
19
|
19
4WV-82116-00-00
Wire, Minus Lead
Ur for oceania, s.africa |
4WV-82116-00-00 |
— | ||
|
20
|
20
3HN-82541-00-00 Wire, Lead |
3HN-82541-00-00 |
from US $10.43 |
||
|
21
|
21
4KB-81940-00-00 Starter Relay Assy (Rc19-013) |
4KB-81940-00-00 |
from US $74.32 |
||
| replacement | |||||
|
21
|
21
4KB-81940-01-00 Starter Relay Assy (Rc19-013) |
4KB-81940-01-00 |
from US $121.19 |
||
|
22
|
22
95027-06008-00 Bolt, Flange |
95027-06008-00 |
from US $1.43 |
||
|
23
|
23
4KB-82150-00-00 Fuse Holder Assy |
4KB-82150-00-00 |
from US $20.12 |
||
| replacement | |||||
|
23
|
23
5EH-82150-00-00 Fuse Holder Assy |
5EH-82150-00-00 |
from US $18.59 |
||
|
24
|
24
1AE-82151-00-00 Fuse (30A-Bl) |
1AE-82151-00-00 |
from US $1.66 |
||
|
25
|
25
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
25
|
25
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
25
|
25
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
26
|
26
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
27
|
27
2HR-83530-01-00
Pilot Light Assy
|
2HR-83530-01-00 |
— | ||
|
28
|
28
123-83516-21-00 Bulb (12V3.4W) |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
28
|
28
123-83516-21-XX Bulb (12V-3.4W) |
123-83516-21-XX |
US $63.70 |
||
|
29
|
29
4SH-82590-40-00
Wire Harness Assy
Ur for oceania, s.africa |
4SH-82590-40-00 |
— | ||
|
29
|
29
4SH-82590-50-00
Wire Harness Assy
Ur for europe |
4SH-82590-50-00 |
— | ||
| replacement | |||||
|
29
|
29
4SH-82590-51-00
Wire Harness Assy
Ur for europe |
4SH-82590-51-00 |
— | ||
|
29
|
29
4SH-82590-30-00
Wire Harness Assembly
Ur for usa, canada |
4SH-82590-30-00 |
— | ||
| replacement | |||||
|
29
|
29
4SH-82590-31-00
Wire Harness
Ur for usa, canada |
4SH-82590-31-00 |
— | ||
|
30
|
30
3WP-81980-00-00 Diode Assy |
3WP-81980-00-00 |
from US $16.15 |
||
|
31
|
31
4GB-82180-00-00 Circuit Breaker Assy |
4GB-82180-00-00 |
from US $26.03 |
||
| replacement | |||||
|
31
|
31
5GT-82180-00-00 Circuit Breaker Assy |
5GT-82180-00-00 |
from US $29.04 |
||
|
32
|
32
59V-82541-00-00
Wire, Lead
|
59V-82541-00-00 |
— | ||
|
33
|
33
1UY-81950-92-00 Relay Assy (1Uy-92) |
1UY-81950-92-00 |
from US $34.85 |
||
|
34
|
34
29U-81950-93-00 Relay Assy (Aca12115-1) |
29U-81950-93-00 |
from US $34.06 |
||
|
35
|
35
4SH-86510-00-00
Motor Control Unit Assy
|
4SH-86510-00-00 |
— | ||
|
36
|
36
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
37
|
37
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
37
|
37
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
37
|
37
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
38
|
38
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
39
|
39
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
39
|
39
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
40
|
40
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
41
|
41
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
42
|
42
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
43
|
43
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
43
|
43
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
44
|
44
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
45
|
45
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
46
|
46
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
47
|
47
3AB-83790-00-00 Heater AssyAp for europe. oceania, s.afri |
3AB-83790-00-00 |
US $28.34 |
||
| replacement | |||||
|
47
|
47
5FU-83790-00-00 Heater AssyAp for europe. oceania, s.afri |
5FU-83790-00-00 |
US $28.34 |
||
|
48
|
48
3BT-82103-00-00 Terminal 1For europe. oceania, s.africa |
3BT-82103-00-00 |
from US $1.31 |
||
| replacement | |||||
|
48
|
48
5FU-82103-00-00 Terminal 1For europe. oceania, s.africa |
5FU-82103-00-00 |
from US $1.84 |
||
|
49
|
49
90201-085R5-00 Washer, PlateFor europe. oceania, s.africa |
90201-085R5-00 |
from US $1.70 |
||
| replacement | |||||
|
49
|
49
90201-08016-00 Washer, PlateFor europe. oceania, s.africa |
90201-08016-00 |
from US $1.70 |
||
|
50
|
50
1AJ-82560-01-00 Thermo Switch AssyAp for europe. oceania, s.afr |
1AJ-82560-01-00 |
from US $49.54 |
||
|
51
|
51
4SH-82509-10-00
Wire, Sub Lead
Ap for europe. oceania, s.afr |
4SH-82509-10-00 |
— | ||
|
52
|
52
90445-083F2-00 Hose (L620)For oceania, s.africa |
90445-083F2-00 |
from US $10.91 |
||
| replacement | |||||
|
52
|
52
90445-084J0-00 PipeFor oceania, s.africa |
90445-084J0-00 |
from US $8.28 |
||
|
53
|
53
50M-83371-20-00 HornFor europe. oceania, s.africa |
50M-83371-20-00 |
from US $47.11 |
||
|
54
|
54
95817-06010-00 Bolt, FlangeFor europe. oceania, s.africa |
95817-06010-00 |
from US $1.07 |
||
