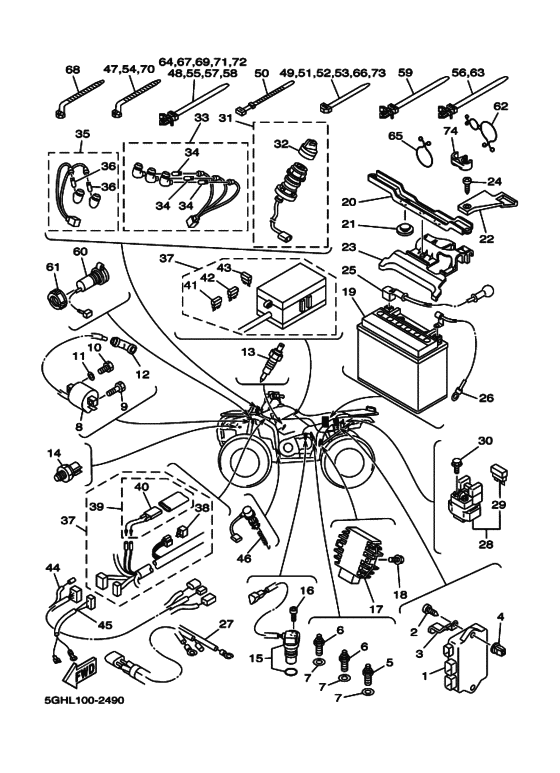

Electrical 1 Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- 5GHL
- Engine Capacity
- 401
- Year
- 2002
- Sales region
- Japan (020)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Color Variant
- A
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- Note
- ･
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-85540-20-00 C.d.i. Unit Assy．．．ＣＤＩ ＵＮＩＴ ＡＳＳＹ; |
5GH-85540-20-00 |
from US $616.44 |
||
|
2
|
2
97707-60525-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97707-60525-00 |
from US $2.13 |
||
|
3
|
3
90462-06016-00 ClampＣＬＡＭＰ; |
90462-06016-00 |
from US $4.39 |
||
|
4
|
4
90338-08226-00 PlugＰＬＵＧ; |
90338-08226-00 |
from US $1.70 |
||
|
5
|
5
3GB-82540-01-00 Neutral Switch AssyＮＥＵＴＲＡＬ ＳＷＩＴＣＨ ＡＳＳＹ; |
3GB-82540-01-00 |
from US $18.42 |
||
|
6
|
6
4KM-82540-00-00
Neutral Switch Assy
ＮＥＵＴＲＡＬ ＳＷＩＴＣＨ ＡＳＳＹ; |
4KM-82540-00-00 |
— | ||
| replacement | |||||
|
6
|
6
4GY-82540-10-00 Neutral Switch AssyＮＥＵＴＲＡＬ ＳＷＩＴＣＨ ＡＳＳＹ; |
4GY-82540-10-00 |
from US $23.80 |
||
|
7
|
7
90430-10148-00 GasketＧＡＳＫＥＴ; |
90430-10148-00 |
from US $1.56 |
||
|
8
|
8
3KJ-82310-10-00
Ignition Coil Assy
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
3KJ-82310-10-00 |
— | ||
| replacements | |||||
|
8
|
8
3KJ-82310-11-00
IGNITION COIL ASSY
ＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
3KJ-82310-11-00 |
— | ||
|
8
|
8
3KJ-82310-12-00 IGNITION COIL ASSYＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
3KJ-82310-12-00 |
from US $50.67 |
||
|
8
|
8
3KJ-82310-13-00 IGNITION COIL ASSYＩＧＮＩＴＩＯＮ ＣＯＩＬ ＡＳＳＹ; |
3KJ-82310-13-00 |
from US $56.83 |
||
|
9
|
9
90109-06723-00 BoltＢＯＬＴ; |
90109-06723-00 |
from US $2.13 |
||
|
10
|
10
970-07060-20-00
Bolt
ＢＯＬＴ; |
970-07060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-20-00 BoltＢＯＬＴ; |
970-17060-20-00 |
from US $1.07 |
||
|
11
|
11
92907-06600-00 Washer, PlateＷＡＳＨＥＲ， ＰＬＡＴＥ; |
92907-06600-00 |
from US $1.04 |
||
|
12
|
12
1UY-82370-20-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
1UY-82370-20-00 |
from US $19.69 |
||
| replacements | |||||
|
12
|
12
5EL-82370-00-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
5EL-82370-00-00 |
from US $23.82 |
||
|
12
|
12
3NS-82370-00-00 Plug Cap AssyＰＬＵＧ ＣＡＰ ＡＳＳＹ; |
3NS-82370-00-00 |
from US $19.69 |
||
|
13
|
13
4BA-82560-00-00 Thermo Switch AssyＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
4BA-82560-00-00 |
from US $98.23 |
||
|
14
|
14
5GH-82560-00-00 Thermo Switch AssyＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
5GH-82560-00-00 |
from US $41.51 |
||
|
15
|
15
4XV-83755-01-00 Sensor, SpeedＳＥＮＳＯＲ， ＳＰＥＥＤ; |
4XV-83755-01-00 |
from US $151.98 |
||
| replacements | |||||
|
15
|
15
4XV-83755-03-00
Sensor, Speed
ＳＥＮＳＯＲ， ＳＰＥＥＤ; |
4XV-83755-03-00 |
— | ||
|
15
|
15
4XV-83755-04-00 Sensor, SpeedＳＥＮＳＯＲ， ＳＰＥＥＤ; |
4XV-83755-04-00 |
from US $160.69 |
||
|
16
|
16
90110-06001-00 BoltＢＯＬＴ， ＨＥＸＡＧＯＮ ＳＯＣＫＥＴ ＨＥＡＤ; |
90110-06001-00 |
US $1.07 |
||
| replacement | |||||
|
16
|
16
91317-06016-00 BoltＢＯＬＴ， ＨＥＸＡＧＯＮ ＳＯＣＫＥＴ ＨＥＡＤ; |
91317-06016-00 |
from US $1.04 |
||
|
17
|
17
5GT-81960-00-00 Rectifier & Regulator AssyＲＥＣＴＩＦＩＥＲ ＆ａｍｐ； ＲＥＧＵＬＡＴＯＲ ＡＳＳＹ; |
5GT-81960-00-00 |
from US $126.97 |
||
|
18
|
18
95807-06020-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95807-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
18
|
18
95817-06020-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95817-06020-00 |
from US $1.13 |
||
|
19
|
19
4SH-82100-11-00
Battery Assy (Yuasa Ytx20L-Bs)
ＢＡＴＴＥＲＹ ＡＳＳＹ ; ＹＵＡＳＡ ＹＴＸ２０Ｌ−ＢＳ |
4SH-82100-11-00 |
— | ||
|
20
|
20
5GH-82128-00-00
Bracket, Battery
ＢＲＡＣＫＥＴ， ＢＡＴＴＥＲＹ; |
5GH-82128-00-00 |
— | ||
|
21
|
21
371-82121-00-00 Pad, BatteryＰＡＤ， ＢＡＴＴＥＲＹ; |
371-82121-00-00 |
from US $4.39 |
||
|
22
|
22
5GH-82119-00-00
Cover, Lead Wire
ＣＯＶＥＲ， ＬＥＡＤ ＷＩＲＥ; |
5GH-82119-00-00 |
— | ||
|
23
|
23
5GH-82129-00-00
Cover, Battery
ＣＯＶＥＲ， ＢＡＴＴＥＲＹ; |
5GH-82129-00-00 |
— | ||
|
24
|
24
977-07500-16-00
Screw, Tapping(4Mv)
ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
977-07500-16-00 |
— | ||
| replacement | |||||
|
24
|
24
90167-05077-00 Screw, Tapping(4Tv)ＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
90167-05077-00 |
from US $1.84 |
||
|
25
|
25
5GH-82115-00-00
Wire, Plus Lead
ＷＩＲＥ， ＰＬＵＳ ＬＥＡＤ; |
5GH-82115-00-00 |
— | ||
|
26
|
26
5GH-82116-00-00 Wire, Minus LeadＷＩＲＥ， ＭＩＮＵＳ ＬＥＡＤ; |
5GH-82116-00-00 |
US $29.68 |
||
|
27
|
27
5GH-82541-10-00 Wire, LeadＷＩＲＥ， ＬＥＡＤ; |
5GH-82541-10-00 |
US $23.31 |
||
|
28
|
28
4SV-81940-00-00
Starter Relay Assy (Rc19-015)
ＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
4SV-81940-00-00 |
— | ||
| replacement | |||||
|
28
|
28
4SV-81940-12-00 Starter Relay Assy (Rc19-015)ＳＴＡＲＴＥＲ ＲＥＬＡＹ ＡＳＳＹ; |
4SV-81940-12-00 |
from US $43.98 |
||
|
29
|
29
1AE-82151-00-00 Fuse (30A-Bl)．ＦＵＳＥ ; ３０Ａ−ＢＬ |
1AE-82151-00-00 |
from US $1.66 |
||
|
30
|
30
95027-06008-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
95027-06008-00 |
from US $1.43 |
||
|
31
|
31
5KM-82510-00-00
Main Switch Assy
ＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
5KM-82510-00-00 |
— | ||
| replacements | |||||
|
31
|
31
5KM-82510-01-00 Main Switch AssyＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
5KM-82510-01-00 |
from US $57.54 |
||
|
31
|
31
5KM-82510-02-00 Main Switch AssyＭＡＩＮ ＳＷＩＴＣＨ ＡＳＳＹ; |
5KM-82510-02-00 |
US $74.79 |
||
|
32
|
32
3HN-82579-00-00 Cap, Key．ＣＡＰ， ＫＥＹ; |
3HN-82579-00-00 |
from US $5.30 |
||
|
33
|
33
5GH-83530-00-00 Pilot Light AssyＰＩＬＯＴ ＬＩＧＨＴ ＡＳＳＹ; |
5GH-83530-00-00 |
from US $37.16 |
||
|
34
|
34
5GH-83516-00-00 Bulb (12V-1.7W)．．ＢＵＬＢ ; １４Ｖ−１７Ｗ |
5GH-83516-00-00 |
from US $4.53 |
||
| replacement | |||||
|
34
|
34
3FV-83517-00-00 Bulb (12V-1.7W)．．ＢＵＬＢ ; １４Ｖ−１７Ｗ |
3FV-83517-00-00 |
from US $3.32 |
||
|
35
|
35
5GH-83530-10-00 Pilot Light AssyＰＩＬＯＴ ＬＩＧＨＴ ＡＳＳＹ; |
5GH-83530-10-00 |
from US $37.17 |
||
|
36
|
36
5GH-83516-00-00 Bulb (12V-1.7W)．．ＢＵＬＢ ; １４Ｖ−１７Ｗ |
5GH-83516-00-00 |
from US $4.53 |
||
| replacement | |||||
|
36
|
36
3FV-83517-00-00 Bulb (12V-1.7W)．．ＢＵＬＢ ; １４Ｖ−１７Ｗ |
3FV-83517-00-00 |
from US $3.32 |
||
|
37
|
37
5GH-82590-30-00
Wire Harness Assy
ＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ; |
5GH-82590-30-00 |
— | ||
| replacement | |||||
|
37
|
37
5GH-82590-40-00
Wire Harness Assy
ＷＩＲＥ ＨＡＲＮＥＳＳ ＡＳＳＹ; |
5GH-82590-40-00 |
— | ||
|
38
|
38
3WP-81980-00-00 Diode Assy．ＤＩＯＤＥ ＡＳＳＹ; |
3WP-81980-00-00 |
from US $16.15 |
||
|
39
|
39
5GT-82180-00-00 Circuit Breaker Assy．ＣＩＲＣＵＩＴ ＢＲＥＡＫＥＲ ＡＳＳＹ; |
5GT-82180-00-00 |
from US $29.04 |
||
|
40
|
40
5GT-82560-00-00 Thermo Switch Assy．．ＴＨＥＲＭＯ ＳＷＩＴＣＨ ＡＳＳＹ; |
5GT-82560-00-00 |
from US $24.79 |
||
|
41
|
41
5JJ-82151-10-00 Fuse (15A-Bl)．ＦＵＳＥ ; １５Ａ−ＢＬ |
5JJ-82151-10-00 |
US $2.83 |
||
| replacement | |||||
|
41
|
41
67F-82151-50-00 Fuse (15A)．ＦＵＳＥ ; １５Ａ−ＢＬ |
67F-82151-50-00 |
from US $1.98 |
||
|
42
|
42
5JJ-82151-30-00
Fuse (10A-Bl)
．ＦＵＳＥ ; １０Ａ−ＢＬ |
5JJ-82151-30-00 |
— | ||
| replacement | |||||
|
42
|
42
67F-82151-40-00 Fuse (10A)．ＦＵＳＥ ; １０Ａ−ＢＬ |
67F-82151-40-00 |
from US $1.98 |
||
|
43
|
43
5JJ-82151-50-00 Fuse (3A)．ＦＵＳＥ ; ３Ａ−ＢＬ |
5JJ-82151-50-00 |
from US $3.54 |
||
| replacement | |||||
|
43
|
43
67F-82151-30-00 Fuse (3A)．ＦＵＳＥ ; ３Ａ−ＢＬ |
67F-82151-30-00 |
from US $2.41 |
||
|
44
|
44
5GH-82309-10-00 Wire, Sub LeadＷＩＲＥ， ＳＵＢ ＬＥＡＤ; |
5GH-82309-10-00 |
US $98.98 |
||
|
45
|
45
5GH-82509-30-00 Wire, Sub LeadＷＩＲＥ， ＳＵＢ ＬＥＡＤ; |
5GH-82509-30-00 |
from US $15.58 |
||
|
46
|
46
5GH-82530-00-00
Stop Switch Assy
ＳＴＯＰ ＳＷＩＴＣＨ ＡＳＳＹ; |
5GH-82530-00-00 |
— | ||
|
47
|
47
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
48
|
48
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
48
|
48
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
49
|
49
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
49
|
49
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
50
|
50
437-83936-01-00 Band, Switch CordＢＡＮＤ， ＳＷＩＴＣＨ ＣＯＲＤ; |
437-83936-01-00 |
from US $1.56 |
||
|
51
|
51
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
51
|
51
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
52
|
52
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
52
|
52
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
54
|
54
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
55
|
55
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
55
|
55
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
56
|
56
90464-12036-00 ClampＣＬＡＭＰ; |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
56
|
56
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
57
|
57
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
57
|
57
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
58
|
58
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
58
|
58
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
59
|
59
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
60
|
60
5GH-8254B-00-00 Terminal Comp．ＴＥＲＭＩＮＡＬ ＣＯＭＰ; |
5GH-8254B-00-00 |
from US $157.50 |
||
|
61
|
61
5GH-82114-00-00 NutＮＵＴ; |
5GH-82114-00-00 |
from US $25.08 |
||
|
62
|
62
90464-25098-00 ClampＣＬＡＭＰ; |
90464-25098-00 |
from US $1.64 |
||
|
63
|
63
90464-12036-00 ClampＣＬＡＭＰ; |
90464-12036-00 |
from US $1.35 |
||
| replacement | |||||
|
63
|
63
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
64
|
64
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
64
|
64
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
65
|
65
904-65100-98-00 ClampＣＬＡＭＰ; |
904-65100-98-00 |
from US $1.34 |
||
| replacement | |||||
|
65
|
65
80L-26397-00-00 BandＣＬＡＭＰ; |
80L-26397-00-00 |
from US $1.21 |
||
|
66
|
66
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
66
|
66
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
67
|
67
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
67
|
67
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
68
|
68
90464-12045-00 Band, Switch CordＣＬＡＭＰ; |
90464-12045-00 |
from US $1.56 |
||
| replacement | |||||
|
68
|
68
25G-83936-01-00 Band, Switch CordＣＬＡＭＰ; |
25G-83936-01-00 |
from US $1.56 |
||
|
69
|
69
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
69
|
69
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
70
|
70
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
71
|
71
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
71
|
71
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
72
|
72
90464-12089-00 ClampＣＬＡＭＰ; |
90464-12089-00 |
US $1.42 |
||
| replacement | |||||
|
72
|
72
90464-10112-00 ClampＣＬＡＭＰ; |
90464-10112-00 |
from US $1.35 |
||
|
73
|
73
904-64130-73-00
Clamp
ＣＬＡＭＰ; |
904-64130-73-00 |
— | ||
| replacement | |||||
|
73
|
73
904-64151-95-00 ClampＣＬＡＭＰ; |
904-64151-95-00 |
from US $1.35 |
||
|
74
|
74
90464-08002-00 ClampＣＬＡＭＰ; |
90464-08002-00 |
from US $2.27 |
||
