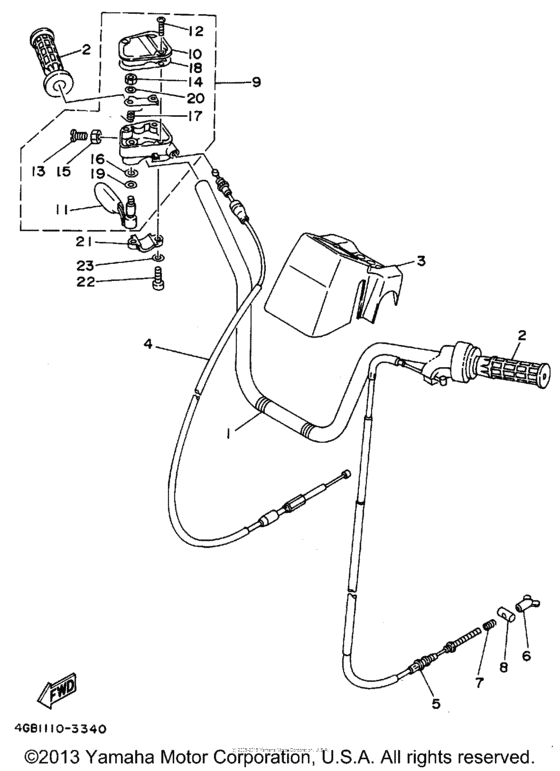

Steering handle - cable Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-26111-00-00 Handlebar |
3HN-26111-00-00 |
from US $64.80 |
||
|
2
|
2
3GB-26241-00-00 Grip |
3GB-26241-00-00 |
from US $14.31 |
||
|
3
|
3
4GB-26124-00-00 Protector, Handlebar |
4GB-26124-00-00 |
US $138.49 |
||
|
4
|
4
3HN-26311-10-00 Cable, Throttle 1 |
3HN-26311-10-00 |
from US $46.84 |
||
|
5
|
5
4GB-26341-00-00 Wire, Brake 1 |
4GB-26341-00-00 |
from US $66.19 |
||
| replacement | |||||
|
5
|
5
4SH-26341-00-00 Wire, Brake 1 |
4SH-26341-00-00 |
from US $68.80 |
||
|
6
|
6
20E-26343-00-00 Nut, Adjusting |
20E-26343-00-00 |
from US $11.33 |
||
|
7
|
7
90501-10782-00 Spring, Compression |
90501-10782-00 |
from US $1.84 |
||
|
8
|
8
902-49120-08-00 Pin |
902-49120-08-00 |
from US $1.56 |
||
|
9
|
9
1NV-26250-01-00 Throttle Lever Assy |
1NV-26250-01-00 |
from US $145.07 |
||
|
10
|
10
1NV-2628F-00-00 Cap, Gear |
1NV-2628F-00-00 |
US $38.48 |
||
|
11
|
11
1NV-2625G-01-00 Lever, Throttle |
1NV-2625G-01-00 |
from US $41.66 |
||
|
12
|
12
98516-05012-00 Screw, Pan Head |
98516-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
12
|
12
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
12
|
12
976-06051-12-00
Screw, Pan Head With Washer
|
976-06051-12-00 |
— | ||
|
13
|
13
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
13
|
13
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
14
|
14
95612-05100-00 Nut, U |
95612-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
14
|
14
95617-05100-00 Nut, U |
95617-05100-00 |
from US $1.98 |
||
|
15
|
15
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
16
|
16
93104-09025-00 Oil Seal |
93104-09025-00 |
from US $3.68 |
||
|
17
|
17
1NV-26304-00-00 Spring |
1NV-26304-00-00 |
from US $6.52 |
||
|
18
|
18
1NV-2628G-00-00 Gasket |
1NV-2628G-00-00 |
from US $7.18 |
||
|
19
|
19
1NV-26129-00-00 Washer |
1NV-26129-00-00 |
from US $2.69 |
||
|
20
|
20
53L-83909-00-00
Washer, Special
|
53L-83909-00-00 |
— | ||
|
21
|
21
4V4-82913-00-00 Holder, Lever Lower 1 |
4V4-82913-00-00 |
from US $17 |
||
|
22
|
22
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
23
|
23
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
