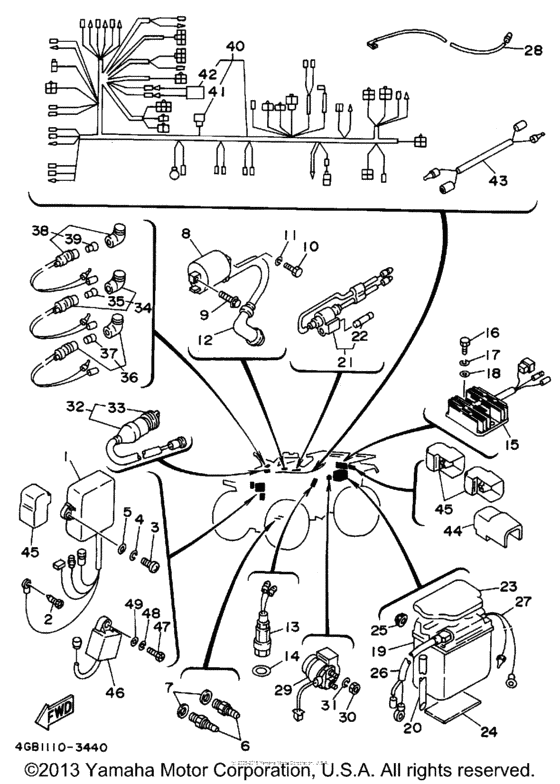

Electrical (1) Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GB-85540-00-00 C.d.i. Unit Assembly |
4GB-85540-00-00 |
US $547.52 |
||
|
2
|
2
90153-06044-00 Screw, Hexagon |
90153-06044-00 |
from US $2.05 |
||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
3GB-82540-00-00 Neutral Switch Assy |
3GB-82540-00-00 |
from US $18.42 |
||
| replacement | |||||
|
6
|
6
3GB-82540-01-00 Neutral Switch Assy |
3GB-82540-01-00 |
from US $18.42 |
||
|
7
|
7
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
8
|
8
3GD-82310-10-00 Ignition Coil Assy |
3GD-82310-10-00 |
from US $135.67 |
||
|
9
|
9
90109-06723-00 Bolt |
90109-06723-00 |
from US $2.13 |
||
|
10
|
10
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
10
|
10
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
12
|
12
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $28.76 |
||
|
13
|
13
4GB-83591-00-00
Thermo Unit
|
4GB-83591-00-00 |
— | ||
|
14
|
14
90201-12172-00 Washer, Plate |
90201-12172-00 |
from US $1.42 |
||
|
15
|
15
4GB-81960-00-00 Rectifier & Regulator Assembly |
4GB-81960-00-00 |
from US $268.20 |
||
|
16
|
16
97095-06016-00 Bolt |
97095-06016-00 |
from US $1.28 |
||
| replacement | |||||
|
16
|
16
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
BTG-GM14A-Z4-A0
Cb14-A2 Gs Battery
UR |
BTG-GM14A-Z4-A0 |
— | ||
| replacement | |||||
|
19
|
19
CB1-4A200-00-00
YAMAHA BANNER 3 X 8
UR |
CB1-4A200-00-00 |
— | ||
|
20
|
20
904-45083-36-00
Hose (L1500)
|
904-45083-36-00 |
— | ||
| replacement | |||||
|
20
|
20
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.28 |
||
|
21
|
21
59V-82150-00-00 Fuse Holder Assy |
59V-82150-00-00 |
US $83.65 |
||
| replacement | |||||
|
21
|
21
2NL-82150-00-00 Fuse Holder Assy |
2NL-82150-00-00 |
US $83.65 |
||
|
22
|
22
705-82151-00-00 Fuse (30A)30A |
705-82151-00-00 |
US $3.97 |
||
| replacement | |||||
|
22
|
22
705-82151-01-00 FUSE 30A30A |
705-82151-01-00 |
from US $3.97 |
||
|
23
|
23
24W-82129-00-00
Cover, Battery
|
24W-82129-00-00 |
— | ||
|
24
|
24
51Y-82122-00-00 Seat, Battery |
51Y-82122-00-00 |
from US $2.69 |
||
|
25
|
25
371-82121-00-00 Pad, Battery |
371-82121-00-00 |
from US $4.39 |
||
|
26
|
26
3LD-82115-00-00 Wire, Plus Lead |
3LD-82115-00-00 |
US $62.98 |
||
|
27
|
27
2HR-82116-00-00
Wire, Minus Lead
|
2HR-82116-00-00 |
— | ||
|
28
|
28
3HN-82541-00-00 Wire, Lead |
3HN-82541-00-00 |
from US $10.43 |
||
|
29
|
29
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
30
|
30
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
30
|
30
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
32
|
32
4GB-82510-00-00 Main Switch Assy |
4GB-82510-00-00 |
from US $74.47 |
||
| replacements | |||||
|
32
|
32
4GB-82510-11-00 Main Switch Assy |
4GB-82510-11-00 |
from US $74.47 |
||
|
32
|
32
4GB-82510-12-00 Main Switch Assy |
4GB-82510-12-00 |
US $72.76 |
||
|
33
|
33
3HN-82579-00-00 Cap, Key |
3HN-82579-00-00 |
from US $5.30 |
||
|
34
|
34
24W-83530-00-00
Pilot Light Assy
|
24W-83530-00-00 |
— | ||
| replacement | |||||
|
34
|
34
24W-83530-10-00 Pilot Light Assy |
24W-83530-10-00 |
from US $26.07 |
||
|
35
|
35
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
35
|
35
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
36
|
36
52G-83530-00-00 Pilot Light Assy |
52G-83530-00-00 |
from US $20.90 |
||
| replacement | |||||
|
36
|
36
52G-83530-10-00 Pilot Light Assy |
52G-83530-10-00 |
from US $25.50 |
||
|
37
|
37
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
37
|
37
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
38
|
38
2HR-83530-00-00 Pilot Light AssemblyFOR OIL TEMP. |
2HR-83530-00-00 |
from US $25.85 |
||
| replacement | |||||
|
38
|
38
3FA-83530-10-00 Pilot Light AssemblyFOR OIL TEMP. |
3FA-83530-10-00 |
US $31.36 |
||
|
39
|
39
123-83516-21-00 Bulb (12V3.4W)12V-3.4W |
123-83516-21-00 |
from US $3.26 |
||
| replacement | |||||
|
39
|
39
123-83516-21-XX Bulb (12V-3.4W)12V-3.4W |
123-83516-21-XX |
US $63.70 |
||
|
40
|
40
4GB-82590-02-00
Wire Harness Assy
|
4GB-82590-02-00 |
— | ||
|
41
|
41
3WP-81980-00-00 Diode Assy |
3WP-81980-00-00 |
from US $16.15 |
||
|
42
|
42
4GB-82180-00-00 Circuit Breaker Assy |
4GB-82180-00-00 |
from US $26.03 |
||
| replacement | |||||
|
42
|
42
5GT-82180-00-00 Circuit Breaker Assy |
5GT-82180-00-00 |
from US $29.04 |
||
|
43
|
43
59V-82541-00-00
Wire, Lead
|
59V-82541-00-00 |
— | ||
|
44
|
44
1UY-81950-92-00 Relay Assy (1Uy-92)1UY-92 |
1UY-81950-92-00 |
from US $34.85 |
||
|
45
|
45
29U-81950-93-00 Relay Assy (Aca12115-1)29U-93 |
29U-81950-93-00 |
from US $34.06 |
||
|
46
|
46
4GB-86510-00-00 Motor Control Unit Assembly |
4GB-86510-00-00 |
US $175.07 |
||
|
47
|
47
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
48
|
48
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
49
|
49
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
50
|
50
90890-56001-00 Blank Key (A-Type) |
90890-56001-00 |
from US $4 |
||
|
51
|
51
90890-56002-00 Blank Key (B-Type) |
90890-56002-00 |
from US $3.78 |
||
