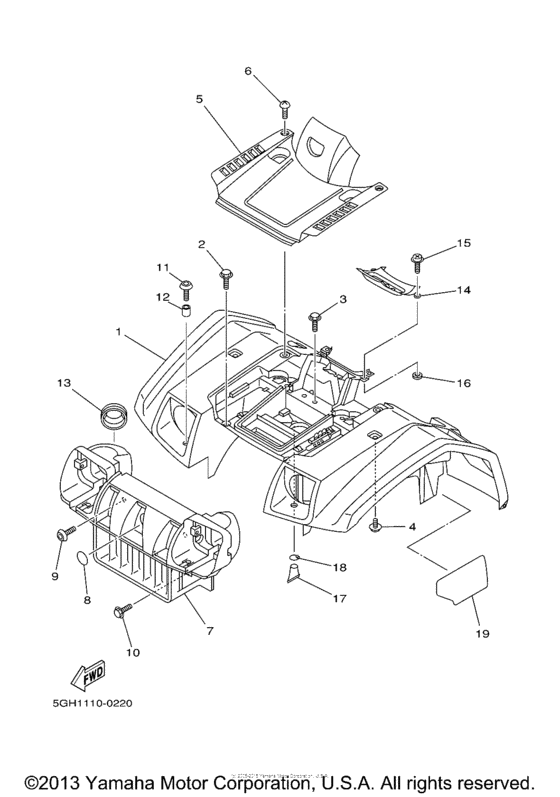

Front fender Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM400FAHM
- Engine Capacity
- 401
- Year
- 2000
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-W2151-00-00 Front Fender Compfor Color PASTEL DEEP GREEN PDG / 00K0 |
5GH-W2151-00-00 |
US $433.57 |
||
|
2
|
2
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
2
|
2
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
2
|
2
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
3
|
3
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
3
|
3
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
3
|
3
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
4
|
4
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
4
|
4
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
4
|
4
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
5
|
5
5GH-23391-00-00
Panel, Front
|
5GH-23391-00-00 |
— | ||
|
6
|
6
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.66 |
||
|
7
|
7
5GH-28309-00-00 Grille, Front |
5GH-28309-00-00 |
from US $76.59 |
||
|
8
|
8
5GT-2175B-00-00 Tuning Fork Mark |
5GT-2175B-00-00 |
from US $36.61 |
||
|
9
|
9
90110-06007-00 Bolt, Hexagon Socket Head |
90110-06007-00 |
from US $1.70 |
||
| replacement | |||||
|
9
|
9
90110-06102-00 Bolt, Hexagon Socket Head |
90110-06102-00 |
from US $1.70 |
||
|
10
|
10
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
10
|
10
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.35 |
||
|
10
|
10
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
11
|
11
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.70 |
||
|
12
|
12
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
13
|
13
5GH-28349-00-00 Cap |
5GH-28349-00-00 |
from US $5.38 |
||
|
14
|
14
5GH-2837L-00-00 Panel, Console 1 |
5GH-2837L-00-00 |
US $28.21 |
||
|
15
|
15
90159-05028-00 Screw, With Washer |
90159-05028-00 |
from US $2.83 |
||
| replacement | |||||
|
15
|
15
90159-05121-00 Screw, With Washer |
90159-05121-00 |
from US $2.83 |
||
|
16
|
16
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.34 |
||
|
17
|
17
59V-14457-00-00 Seal |
59V-14457-00-00 |
from US $2.66 |
||
|
18
|
18
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
19
|
19
5GH-21575-00-00 Seal 1 |
5GH-21575-00-00 |
US $6.84 |
||
