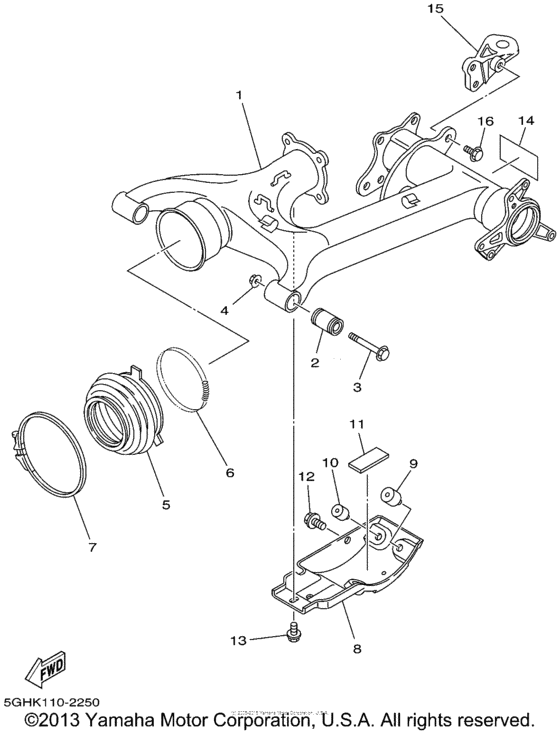

Rear arm & suspension Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FAP
- Engine Capacity
- 401
- Year
- 2002
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GH-22110-10-00
Rear Arm Comp
|
5GH-22110-10-00 |
— | ||
|
2
|
2
5GH-22123-00-00 Bush 1 |
5GH-22123-00-00 |
from US $27.77 |
||
|
3
|
3
90105-12660-00 Bolt, Flange |
90105-12660-00 |
from US $9.63 |
||
|
4
|
4
956-07122-00-00 Nut, Self-Locking |
956-07122-00-00 |
from US $7.69 |
||
|
5
|
5
5GH-22189-00-00 Boot, Rubber |
5GH-22189-00-00 |
from US $31.74 |
||
|
6
|
6
90506-07135-00 Spring, Tension |
90506-07135-00 |
from US $3.32 |
||
|
7
|
7
90460-85277-00 Clamp, Hose |
90460-85277-00 |
from US $8.50 |
||
|
8
|
8
4BD-2219X-02-00 Cover |
4BD-2219X-02-00 |
US $40.01 |
||
|
9
|
9
1A0-27114-00-00 Stopper, Main Stand |
1A0-27114-00-00 |
from US $10.34 |
||
|
10
|
10
109-27114-00-00 Stopper, Main Stand |
109-27114-00-00 |
from US $2.27 |
||
|
11
|
11
1UJ-21638-00-00
Damper 1
|
1UJ-21638-00-00 |
— | ||
| replacement | |||||
|
11
|
11
83R-14425-00-00 Damper 1 |
83R-14425-00-00 |
from US $1.56 |
||
|
12
|
12
958-27080-12-00 Bolt, Flange |
958-27080-12-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
13
|
13
95827-10016-00 Bolt, Flange |
95827-10016-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-10016-00 Bolt, Flange |
95817-10016-00 |
from US $1.07 |
||
|
14
|
14
5GH-2151K-00-00
Label 7
|
5GH-2151K-00-00 |
— | ||
|
15
|
15
5GH-28488-00-00 Hook |
5GH-28488-00-00 |
from US $80.27 |
||
|
16
|
16
95827-10020-00 Bolt, Flange |
95827-10020-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
