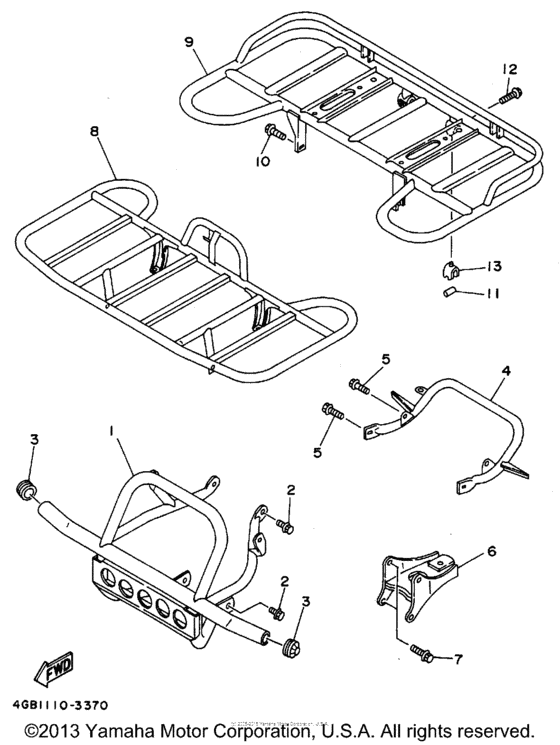

Guard Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GB-2845N-00-00
Bar, Carry Front
|
4GB-2845N-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4GB-2845N-10-00
Bar, Carry Front
|
4GB-2845N-10-00 |
— | ||
|
2
|
2
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
2
|
2
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
3
|
3
2HR-28415-00-00 Damper 1 |
2HR-28415-00-00 |
from US $7.65 |
||
|
4
|
4
3GH-2845R-10-00
Bar, Carry Rear
|
3GH-2845R-10-00 |
— | ||
|
5
|
5
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
5
|
5
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
6
|
6
2HR-28488-01-00 Hook |
2HR-28488-01-00 |
from US $49.06 |
||
| replacement | |||||
|
6
|
6
4SH-28488-10-00 Hook |
4SH-28488-10-00 |
from US $49.06 |
||
|
7
|
7
95811-10016-00 Bolt, Flange (3R1) |
95811-10016-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
95817-10016-00 Bolt, Flange |
95817-10016-00 |
from US $1.07 |
||
|
8
|
8
4GB-24841-00-00
Carrier,front
|
4GB-24841-00-00 |
— | ||
| replacement | |||||
|
8
|
8
4GB-24841-01-00
Carrier
|
4GB-24841-01-00 |
— | ||
|
9
|
9
2HT-24842-00-00
Carrier, Rear
|
2HT-24842-00-00 |
— | ||
|
10
|
10
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
|
11
|
11
90560-06243-00 Spacer |
90560-06243-00 |
from US $2.69 |
||
|
12
|
12
95816-06035-00 Bolt, Flange |
95816-06035-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
95817-06035-00 Bolt, Flange |
95817-06035-00 |
from US $1.07 |
||
|
13
|
13
24W-2483H-00-00 Band |
24W-2483H-00-00 |
from US $4.39 |
||
