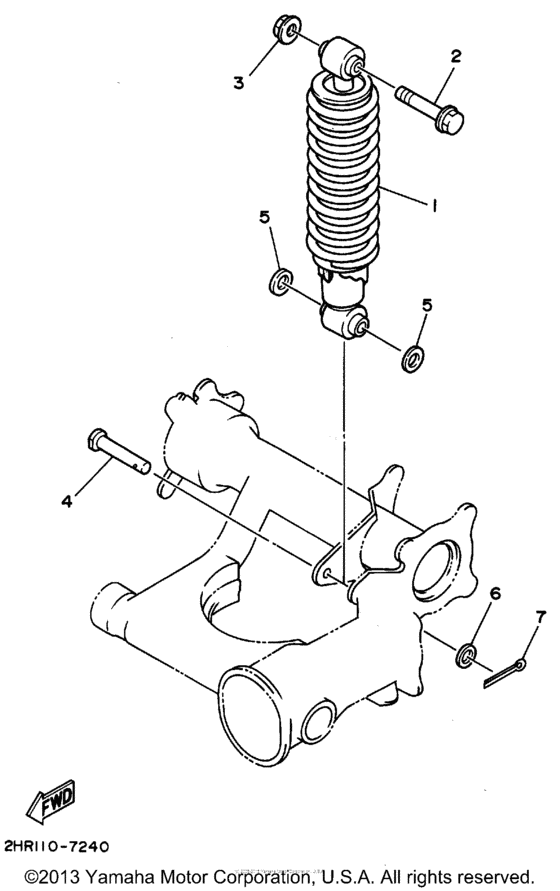

Rear suspension Diagram Yamaha KODIAK 400 Kodiak 400 4WD
- Model code
- YFM400FWF
- Engine Capacity
- 401
- Year
- 1994
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HN-22210-20-33 Shock Absorber Assy, Rear |
3HN-22210-20-33 |
from US $369.52 |
||
| replacement | |||||
|
1
|
1
3HN-22210-30-33 Shock Absorber Assembly, Rear |
3HN-22210-30-33 |
from US $369.52 |
||
|
2
|
2
90105-12425-00 Bolt, Flange |
90105-12425-00 |
from US $3.68 |
||
|
3
|
3
90185-12072-00 Nut, Self-Locking |
90185-12072-00 |
from US $1.84 |
||
|
4
|
4
90240-12092-00 Pin, Clevis |
90240-12092-00 |
from US $6.80 |
||
|
5
|
5
1W1-22128-00-00 Cover, Thrust 1 |
1W1-22128-00-00 |
from US $10.48 |
||
|
6
|
6
90201-127J6-00 Washer, Plate |
90201-127J6-00 |
from US $1.70 |
||
|
7
|
7
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
7
|
7
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
