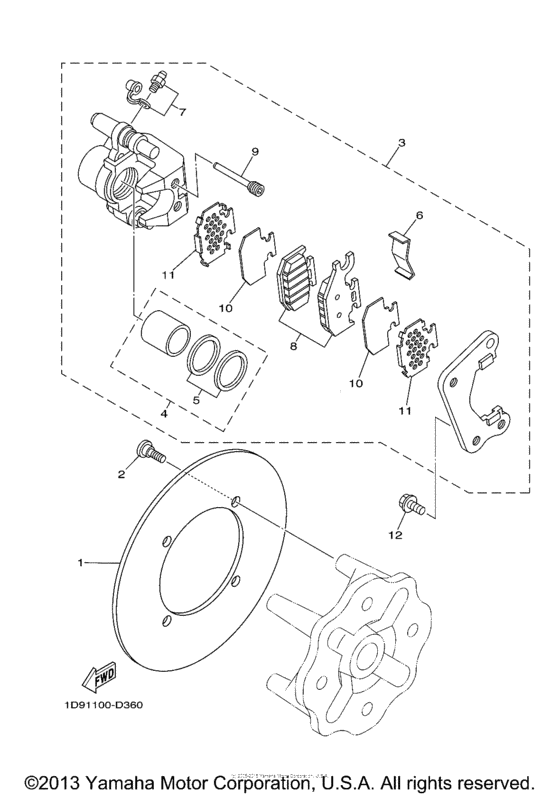

Rear brake caliper Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1D9-F5831-00-00
Disc, Brake (Right)
|
1D9-F5831-00-00 |
— | ||
|
2
|
2
90149-08268-00 Bolt |
90149-08268-00 |
from US $1.84 |
||
| replacement | |||||
|
2
|
2
901-09080-87-00 Bolt |
901-09080-87-00 |
from US $1.84 |
||
|
3
|
3
1D9-2580V-01-00 Caliper Assy, Rear 1 |
1D9-2580V-01-00 |
US $367 |
||
| replacement | |||||
|
3
|
3
1D9-2580V-02-00 Caliper Assy, Rear 1 |
1D9-2580V-02-00 |
US $563.22 |
||
|
4
|
4
3TB-W0057-00-00 Piston Assy, Caliper |
3TB-W0057-00-00 |
from US $35.28 |
||
|
5
|
5
3GD-W0047-00-00 Caliper Seal Kit |
3GD-W0047-00-00 |
from US $4.64 |
||
|
6
|
6
4GY-25919-50-00 Support, Pad |
4GY-25919-50-00 |
from US $18.42 |
||
|
7
|
7
1UY-W0048-50-00
Bleed Screw Kit
|
1UY-W0048-50-00 |
— | ||
| replacement | |||||
|
7
|
7
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.64 |
||
|
8
|
8
1D9-W0046-00-00 Brake Pad Kit 2 |
1D9-W0046-00-00 |
from US $53.06 |
||
|
9
|
9
5GH-25924-00-00 Pin, Pad |
5GH-25924-00-00 |
from US $13.32 |
||
|
10
|
10
5UG-25827-00-00 Shim, Caliper |
5UG-25827-00-00 |
from US $23.24 |
||
|
11
|
11
5GH-25828-00-00 Shim, Caliper |
5GH-25828-00-00 |
from US $14.17 |
||
|
12
|
12
90105-088B2-00 Bolt, Flange |
90105-088B2-00 |
US $6.35 |
||
| replacement | |||||
|
12
|
12
90105-08161-00 Bolt, Flange |
90105-08161-00 |
from US $1.70 |
||
