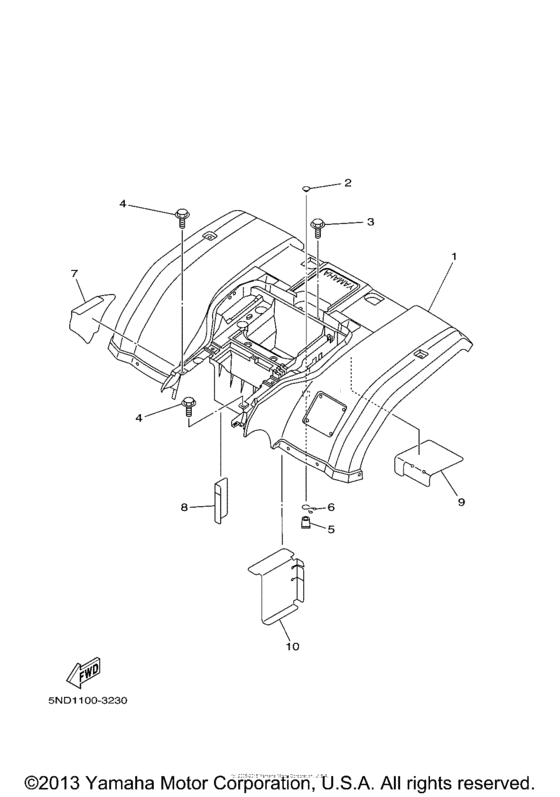

Rear fender Diagram Yamaha KODIAK 400 Kodiak 400 4WD Hunter
- Model code
- YFM4FAHT
- Engine Capacity
- 401
- Year
- 2005
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Kodiak 400 4WD Hunter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5ND-F1600-E0-00 Rear Fender Assy |
5ND-F1600-E0-00 |
US $630.13 |
||
| replacement | |||||
|
1
|
1
5ND-F1600-E1-00 Rear Fender Assy |
5ND-F1600-E1-00 |
US $628.78 |
||
|
2
|
2
903-38098-01-00 Plug |
903-38098-01-00 |
US $2.43 |
||
|
3
|
3
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
3
|
3
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.34 |
||
|
4
|
4
90119-06227-00 Bolt, With Washer |
90119-06227-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
90119-06118-00 Bolt, With Washer |
90119-06118-00 |
from US $1.56 |
||
|
5
|
5
5BF-1443E-00-00 Pipe, Drain |
5BF-1443E-00-00 |
from US $1.66 |
||
|
6
|
6
90467-16195-00 Clip |
90467-16195-00 |
US $3.68 |
||
| replacement | |||||
|
6
|
6
90467-15M14-00 Clip |
90467-15M14-00 |
from US $3.68 |
||
|
7
|
7
5ND-F163A-00-00 Cover, Rear Fender 1YMUS |
5ND-F163A-00-00 |
US $8.24 |
||
| replacement | |||||
|
7
|
7
5ND-F163A-02-00 Cover, Rear FenderYMUS |
5ND-F163A-02-00 |
from US $9.38 |
||
|
8
|
8
5ND-F163E-00-00 Cover, Rear Fender 2YMUS |
5ND-F163E-00-00 |
from US $5.62 |
||
|
9
|
9
5ND-F1652-00-00 Protector |
5ND-F1652-00-00 |
US $6.61 |
||
|
10
|
10
5ND-F163F-00-00 Cover, Rear Fender 3YMUS |
5ND-F163F-00-00 |
US $10.22 |
||
