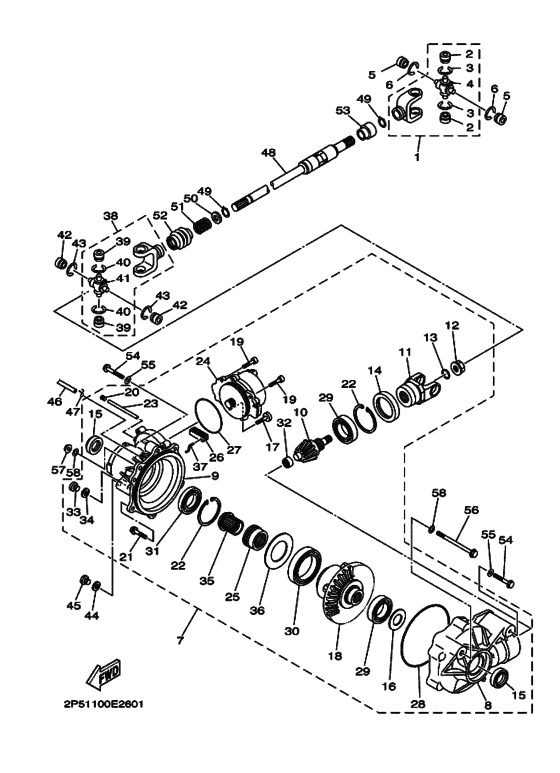

Front differential Diagram Yamaha RHINO 450 Rhino 450
- Model code
- 2P52
- Engine Capacity
- 421
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Color Variant
- B
- 2WD/4WD/AWD
- 4WD
- Model
- Rhino 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2P5-46108-00-00 Cross Joint Comp. 3 |
2P5-46108-00-00 |
from US $157.50 |
||
| replacement | |||||
|
1
|
1
2HC-46107-00-00 Cross Joint Comp. 2 |
2HC-46107-00-00 |
from US $157.50 |
||
|
2
|
2
93399-99948-00 Bearing |
93399-99948-00 |
from US $16.16 |
||
|
3
|
3
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.70 |
||
|
4
|
4
5GT-46187-00-00 Spider |
5GT-46187-00-00 |
from US $62.86 |
||
|
5
|
5
93399-99948-00 Bearing |
93399-99948-00 |
from US $16.16 |
||
|
6
|
6
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.70 |
||
|
7
|
7
5UG-46160-10-00 Front Axle Gear Case Comp |
5UG-46160-10-00 |
from US $2,560.80 |
||
| replacement | |||||
|
7
|
7
5UG-46160-12-00 Front Axle Gear Case Comp |
5UG-46160-12-00 |
from US $2,560.80 |
||
|
8
|
8
5UG-46161-00-00 Housing, Shaft Drive 2 |
5UG-46161-00-00 |
US $295.49 |
||
|
9
|
9
5UG-46162-00-00 Housing, Bearing 2 |
5UG-46162-00-00 |
US $281.61 |
||
|
10
|
10
5KM-46141-11-00 Pinion, Drive 2 |
5KM-46141-11-00 |
from US $210 |
||
| replacement | |||||
|
10
|
10
5KM-46141-13-00 Pinion, Drive 2 |
5KM-46141-13-00 |
from US $210 |
||
|
11
|
11
5KM-46146-10-00 Yoke, Joint 2 |
5KM-46146-10-00 |
US $139.37 |
||
| replacement | |||||
|
11
|
11
5KM-46146-11-00 Yoke, Joint 2 |
5KM-46146-11-00 |
US $193.03 |
||
|
12
|
12
4WV-46145-10-00 Nut 1 |
4WV-46145-10-00 |
from US $10.04 |
||
|
13
|
13
93210-14359-00 O-Ring |
93210-14359-00 |
from US $3.83 |
||
|
14
|
14
93102-48012-00 Oil Seal |
93102-48012-00 |
from US $14.06 |
||
|
15
|
15
93102-24034-00 Seal, Oil 1 |
93102-24034-00 |
from US $15.79 |
||
| replacement | |||||
|
15
|
15
3B4-46163-00-00 Seal,oil 1 |
3B4-46163-00-00 |
from US $13.82 |
||
|
16
|
16
4WV-46119-01-00 Shim, Thrust (0.1T)0.1T; UR |
4WV-46119-01-00 |
from US $7.79 |
||
|
16
|
16
4WV-46119-11-00 Shim, Thrust (0.2T)0.2T; UR |
4WV-46119-11-00 |
from US $7.79 |
||
|
16
|
16
4WV-46119-21-00 Shim, Thrust (0.3T)0.3T; UR |
4WV-46119-21-00 |
from US $7.79 |
||
|
16
|
16
4WV-46119-31-00 Shim, Thrust (0.4T)0.4T; UR |
4WV-46119-31-00 |
from US $7.79 |
||
|
16
|
16
4WV-46119-41-00 Shim, Thrust (0.5T)0.5T; UR |
4WV-46119-41-00 |
from US $7.79 |
||
|
16
|
16
4WV-46119-51-00 Shim, Thrust (1.0T)1.0T; UR |
4WV-46119-51-00 |
from US $7.79 |
||
|
17
|
17
5KM-46155-00-00 Bolt 1 |
5KM-46155-00-00 |
from US $5.81 |
||
|
18
|
18
5KM-46470-12-00 Limited Slip Diff. Assy |
5KM-46470-12-00 |
from US $905.07 |
||
| replacement | |||||
|
18
|
18
5KM-46470-13-00 Limited Slip Diff. Assy |
5KM-46470-13-00 |
from US $817.71 |
||
|
19
|
19
91317-08020-00 Bolt |
91317-08020-00 |
from US $1.07 |
||
|
20
|
20
90113-08004-00 Bolt, Set |
90113-08004-00 |
from US $7.51 |
||
|
21
|
21
4WV-46159-00-00 Bolt 3 |
4WV-46159-00-00 |
from US $4.36 |
||
|
22
|
22
5KM-46143-00-00 Ring, Hole Snap 2 |
5KM-46143-00-00 |
from US $8.50 |
||
|
23
|
23
5KM-42752-00-00 Shaft |
5KM-42752-00-00 |
from US $7.08 |
||
|
24
|
24
5KM-4616A-02-00 Servo Motor Comp |
5KM-4616A-02-00 |
from US $683.76 |
||
|
25
|
25
5KM-46441-00-00 Clutch, Driven |
5KM-46441-00-00 |
from US $77.09 |
||
|
26
|
26
5KM-18319-00-00 Shaft 2 |
5KM-18319-00-00 |
from US $37.55 |
||
|
27
|
27
93210-82001-00 O-Ring |
93210-82001-00 |
from US $6.94 |
||
|
28
|
28
93211-40040-00 O-Ring |
93211-40040-00 |
from US $10.91 |
||
|
29
|
29
93306-00709-00 Bearing |
93306-00709-00 |
from US $47.53 |
||
|
30
|
30
93306-91201-00 Bearing |
93306-91201-00 |
from US $55.26 |
||
|
31
|
31
93316-00702-00 Bearing |
93316-00702-00 |
from US $37.86 |
||
|
32
|
32
4WV-46167-00-00 Bearing 4 |
4WV-46167-00-00 |
from US $23.80 |
||
|
33
|
33
90340-10001-00 Plug, Straight Screw |
90340-10001-00 |
from US $4.04 |
||
|
34
|
34
90430-10003-00 Gasket |
90430-10003-00 |
from US $2.41 |
||
|
35
|
35
5KM-46451-00-00 Adapter |
5KM-46451-00-00 |
from US $89.53 |
||
|
36
|
36
5KM-46119-01-00 Shim, Thrust (0.1T)0.1T; UR |
5KM-46119-01-00 |
from US $12.47 |
||
|
36
|
36
5KM-46119-11-00 Shim, Thrust (0.2T)0.2T; UR |
5KM-46119-11-00 |
from US $12.47 |
||
|
36
|
36
5KM-46119-21-00 Shim, Thrust (0.3T)0.3T; UR |
5KM-46119-21-00 |
from US $10.51 |
||
|
36
|
36
5KM-46119-31-00 Shim, Thrust (0.4T)0.4T; UR |
5KM-46119-31-00 |
from US $10.51 |
||
|
36
|
36
5KM-46119-41-00 Shim, Thrust (0.5T)0.5T; UR |
5KM-46119-41-00 |
from US $9.40 |
||
|
36
|
36
5KM-46119-51-00 Shim, Thrust (1.0T)1.0T; UR |
5KM-46119-51-00 |
from US $12.47 |
||
|
36
|
36
5KM-46119-61-00 Shim, Thrust (1.5T)1.5T; UR |
5KM-46119-61-00 |
from US $12.47 |
||
|
37
|
37
5KM-18514-00-00 Fork, Shift 4 |
5KM-18514-00-00 |
from US $22.24 |
||
|
38
|
38
2P5-46108-00-00 Cross Joint Comp. 3 |
2P5-46108-00-00 |
from US $157.50 |
||
| replacement | |||||
|
38
|
38
2HC-46107-00-00 Cross Joint Comp. 2 |
2HC-46107-00-00 |
from US $157.50 |
||
|
39
|
39
93399-99948-00 Bearing |
93399-99948-00 |
from US $16.16 |
||
|
40
|
40
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.70 |
||
|
41
|
41
5GT-46187-00-00 Spider |
5GT-46187-00-00 |
from US $62.86 |
||
|
42
|
42
93399-99948-00 Bearing |
93399-99948-00 |
from US $16.16 |
||
|
43
|
43
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.70 |
||
|
44
|
44
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.36 |
||
|
45
|
45
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.70 |
||
|
46
|
46
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
47
|
47
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
48
|
48
2P5-46173-00-00 Shaft, Drive 2 |
2P5-46173-00-00 |
US $388.21 |
||
|
49
|
49
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
50
|
50
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
51
|
51
90501-235L9-00 Spring, Compression |
90501-235L9-00 |
from US $2.41 |
||
|
52
|
52
5GT-46136-00-00 Seal 1 |
5GT-46136-00-00 |
from US $8.93 |
||
|
53
|
53
5GT-46137-00-00 Seal 2 |
5GT-46137-00-00 |
from US $2.69 |
||
|
54
|
54
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
55
|
55
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
56
|
56
90105-10N51-00 Bolt, Flange |
90105-10N51-00 |
from US $7.51 |
||
|
57
|
57
9560P-10200-00 Nut, Self-Locking |
9560P-10200-00 |
from US $5.29 |
||
| replacements | |||||
|
57
|
57
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
57
|
57
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
58
|
58
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
