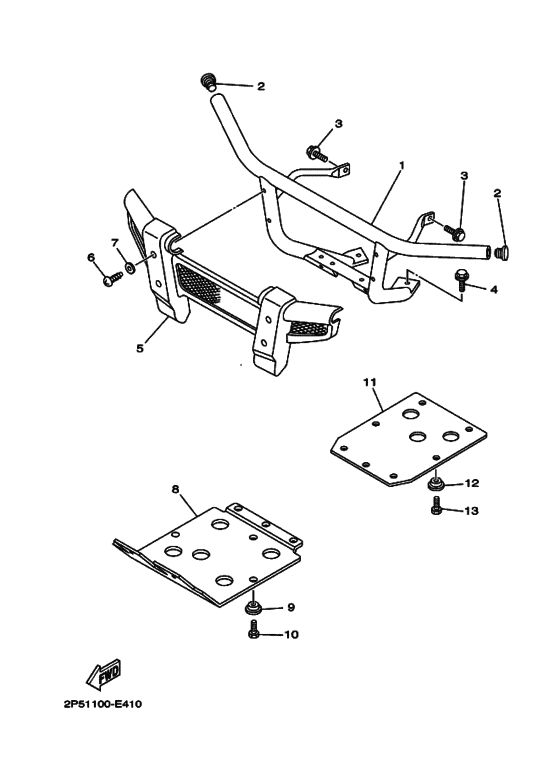

Guard Diagram Yamaha RHINO 450 Rhino 450
- Model code
- 2P52
- Engine Capacity
- 421
- Year
- 2006
- Sales region
- Europe (010)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Color Variant
- B
- 2WD/4WD/AWD
- 4WD
- Model
- Rhino 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2P5-F845N-00-00 Bar, Carry Front |
2P5-F845N-00-00 |
US $423.41 |
||
| replacement | |||||
|
1
|
1
1RB-F845N-00-00
Bar, Carry Front
|
1RB-F845N-00-00 |
— | ||
|
2
|
2
5UG-F2417-00-00 Plug |
5UG-F2417-00-00 |
from US $9.16 |
||
|
3
|
3
958-17100-20-00 Bolt, Flange |
958-17100-20-00 |
from US $1.07 |
||
|
4
|
4
9581P-12025-00 Bolt, Flange |
9581P-12025-00 |
US $2.55 |
||
|
5
|
5
5UG-F842A-00-00 Cover 5 |
5UG-F842A-00-00 |
US $73.85 |
||
|
6
|
6
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
7
|
7
90201-06055-00 Washer, Plate |
90201-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
8
|
8
2P5-F8385-00-00 Cover, Under |
2P5-F8385-00-00 |
US $101.38 |
||
| replacement | |||||
|
8
|
8
2P5-F8385-01-00 Cover, Under |
2P5-F8385-01-00 |
US $112.63 |
||
|
9
|
9
5UG-F8329-00-00 Spacer |
5UG-F8329-00-00 |
US $7.78 |
||
| replacement | |||||
|
9
|
9
5UG-F8329-01-00 Spacer |
5UG-F8329-01-00 |
US $10.15 |
||
|
10
|
10
90105-06832-00 Bolt, Flange |
90105-06832-00 |
from US $5.06 |
||
|
11
|
11
5UG-F8395-00-00 Cover, Under |
5UG-F8395-00-00 |
US $89.69 |
||
| replacement | |||||
|
11
|
11
5UG-F8395-01-00 Cover, Under |
5UG-F8395-01-00 |
US $122.62 |
||
|
12
|
12
5UG-F8329-00-00 Spacer |
5UG-F8329-00-00 |
US $7.78 |
||
| replacement | |||||
|
12
|
12
5UG-F8329-01-00 Spacer |
5UG-F8329-01-00 |
US $10.15 |
||
|
13
|
13
90105-06832-00 Bolt, Flange |
90105-06832-00 |
from US $5.06 |
||
