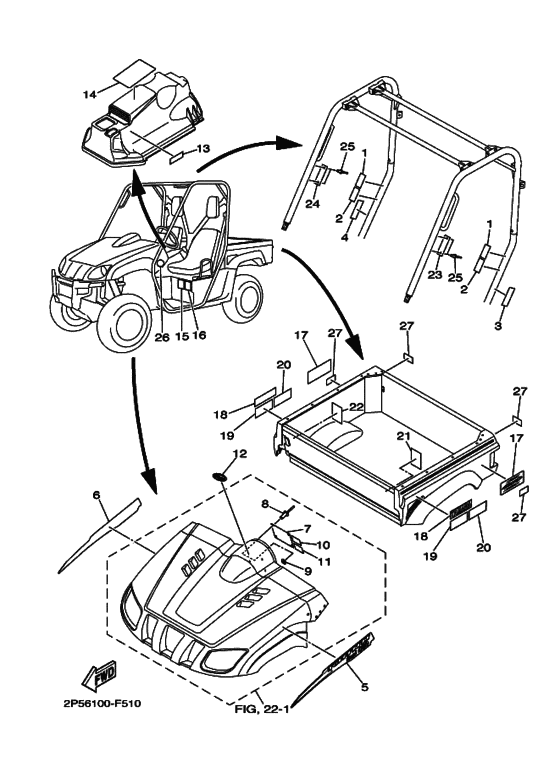

Emblem & label 2 Diagram Yamaha RHINO 450 Rhino 450
- Model code
- 2P59
- Engine Capacity
- 421
- Year
- 2007
- Sales region
- Europe (010)
- Colour
- Dark Purplish Blue Solid N (DPBSN; 0891)
- Color Variant
- G
- 2WD/4WD/AWD
- 4WD
- Model
- Rhino 450
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5UG-K8483-00-00 Label WarningENGLISH |
5UG-K8483-00-00 |
US $86 |
||
|
2
|
2
5UG-K8483-10-00 Label WarningFRENCH |
5UG-K8483-10-00 |
US $5.78 |
||
|
3
|
3
5UG-K7761-10-00 Label, Warning 1FRENCH |
5UG-K7761-10-00 |
US $7 |
||
|
4
|
4
5UG-K7762-10-00 Label, Warning 2FRENCH |
5UG-K7762-10-00 |
US $7 |
||
|
5
|
5
2P5-F1781-60-00 Emblem 1 |
2P5-F1781-60-00 |
US $14.90 |
||
|
6
|
6
2P5-F1782-60-00 Emblem 2 |
2P5-F1782-60-00 |
US $14.90 |
||
|
7
|
7
5UG-F1568-01-00 Label, WarningWITH DOOR->FIG.52 |
5UG-F1568-01-00 |
US $19.31 |
||
| replacement | |||||
|
7
|
7
5B4-F1568-01-00 Label, WarningWITH DOOR->FIG.52 |
5B4-F1568-01-00 |
US $39.06 |
||
|
8
|
8
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
9
|
9
4XE-F1549-00-00 Washer, Fender Mold |
4XE-F1549-00-00 |
from US $2.36 |
||
|
10
|
10
5UG-F1558-00-00
Label, Warning 2
ENGLISH WITH DOOR->FIG.52 |
5UG-F1558-00-00 |
— | ||
|
11
|
11
5ND-F1558-10-00 Label, Warning 2FRENCH WITH DOOR->FIG.52 |
5ND-F1558-10-00 |
US $10.55 |
||
|
12
|
12
5UG-F1783-00-00 Emblem 3 |
5UG-F1783-00-00 |
US $16.31 |
||
|
13
|
13
5UG-F416E-00-00 Label, Caution Canada |
5UG-F416E-00-00 |
US $3.96 |
||
|
14
|
14
5UG-F1568-11-00 Label, WarningWITH DOOR->FIG.52 |
5UG-F1568-11-00 |
US $97 |
||
|
15
|
15
5UG-F1696-01-00 Label, CautionENGLISH |
5UG-F1696-01-00 |
US $6.25 |
||
| replacement | |||||
|
15
|
15
5B4-F1696-00-00 Label, CautionENGLISH |
5B4-F1696-00-00 |
US $14.69 |
||
|
16
|
16
5UG-F1696-10-00 Label, CautionFRENCH |
5UG-F1696-10-00 |
US $5.78 |
||
|
17
|
17
5UG-F163G-50-00 Emblem 1 |
5UG-F163G-50-00 |
US $13.72 |
||
|
18
|
18
5UG-F153A-50-00 Emblem, Yamaha |
5UG-F153A-50-00 |
US $40.91 |
||
|
19
|
19
5UG-K7764-00-00 Label, Warning 4 |
5UG-K7764-00-00 |
US $4.25 |
||
| replacement | |||||
|
19
|
19
5B4-K7764-00-00 Label, Warning 4 |
5B4-K7764-00-00 |
US $10.87 |
||
|
20
|
20
5UG-K7764-10-00 Label, Warning 4FRENCH |
5UG-K7764-10-00 |
US $135.45 |
||
|
21
|
21
5UG-F4897-00-00 EmblemENGLISH |
5UG-F4897-00-00 |
US $9.13 |
||
| replacement | |||||
|
21
|
21
5B4-F4897-00-00 EmblemENGLISH |
5B4-F4897-00-00 |
US $8.50 |
||
|
22
|
22
5UG-F4897-10-00 EmblemFRENCH |
5UG-F4897-10-00 |
US $9.72 |
||
|
23
|
23
5UG-K7761-00-00
Label, Warning 1
ENGLISH |
5UG-K7761-00-00 |
— | ||
|
24
|
24
5UG-K7762-00-00 Label, Warning 2ENGLISH |
5UG-K7762-00-00 |
US $12.91 |
||
| replacement | |||||
|
24
|
24
5B4-K7762-00-00 Label, Warning 2ENGLISH |
5B4-K7762-00-00 |
US $19.30 |
||
|
25
|
25
4XE-F1539-10-00 Rivet |
4XE-F1539-10-00 |
from US $1.84 |
||
| replacement | |||||
|
25
|
25
BLT-F1539-00-00 RIVET |
BLT-F1539-00-00 |
from US $1.66 |
||
|
26
|
26
5UG-H5111-00-00 Reflector, Front 1 |
5UG-H5111-00-00 |
US $11.88 |
||
|
27
|
27
5UG-H5131-00-00 Reflector, Rear 1 |
5UG-H5131-00-00 |
US $15.68 |
||
