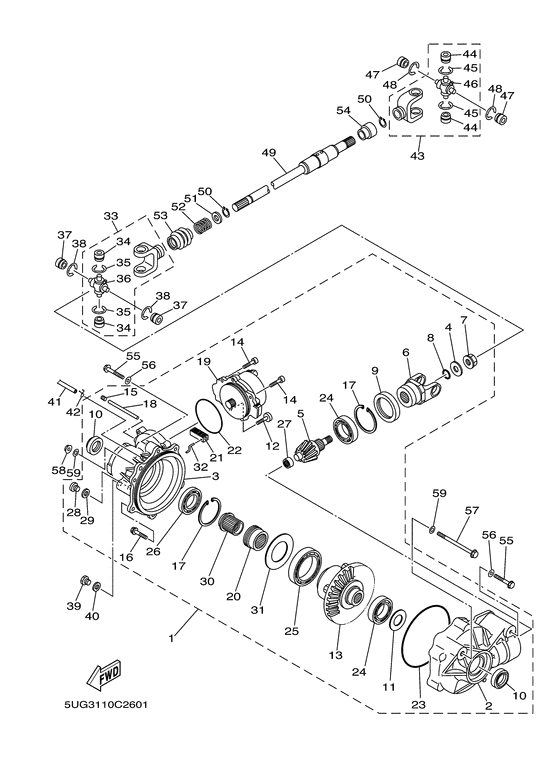

Front differential Diagram Yamaha RHINO 660 Rhino 660
- Model code
- 5UG7
- Engine Capacity
- 660
- Year
- 2005
- Sales region
- Australia (010)
- Colour
- Pastel Deep Green (PDG; 00K0)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Rhino 660
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5UG-46160-01-00 Front Axle Gear Case Comp |
5UG-46160-01-00 |
from US $2,560.80 |
||
| replacement | |||||
|
01
|
01
5UG-46160-12-00 Front Axle Gear Case Comp |
5UG-46160-12-00 |
from US $2,560.80 |
||
|
02
|
02
5UG-46161-00-00 Housing, Shaft Drive 2 |
5UG-46161-00-00 |
US $295.49 |
||
|
03
|
03
5UG-46162-00-00 Housing, Bearing 2 |
5UG-46162-00-00 |
US $281.61 |
||
|
04
|
04
90201-14633-00 Washer, Plate |
90201-14633-00 |
from US $7.65 |
||
|
05
|
05
5KM-46141-11-00 Pinion, Drive 2 |
5KM-46141-11-00 |
from US $210 |
||
| replacement | |||||
|
05
|
05
5KM-46141-13-00 Pinion, Drive 2 |
5KM-46141-13-00 |
from US $210 |
||
|
06
|
06
5KM-46146-10-00 Yoke, Joint 2 |
5KM-46146-10-00 |
US $139.37 |
||
| replacement | |||||
|
06
|
06
5KM-46146-11-00 Yoke, Joint 2 |
5KM-46146-11-00 |
US $193.03 |
||
|
07
|
07
4WV-46145-00-00 Nut 1 |
4WV-46145-00-00 |
from US $14.17 |
||
|
08
|
08
93210-14359-00 O-Ring |
93210-14359-00 |
from US $3.83 |
||
|
09
|
09
93102-48012-00 Oil Seal |
93102-48012-00 |
from US $14.06 |
||
|
10
|
10
93102-24034-00 Seal, Oil 1 |
93102-24034-00 |
from US $15.79 |
||
| replacement | |||||
|
10
|
10
3B4-46163-00-00 Seal,oil 1 |
3B4-46163-00-00 |
from US $13.56 |
||
|
11
|
11
4WV-46119-41-00 Shim, Thrust (0.5T)Ur |
4WV-46119-41-00 |
from US $7.79 |
||
|
11
|
11
4WV-46119-51-00 Shim, Thrust (1.0T)Ur |
4WV-46119-51-00 |
from US $7.79 |
||
|
11
|
11
4WV-46119-01-00 Shim, Thrust (0.1T)Ur |
4WV-46119-01-00 |
from US $7.79 |
||
|
11
|
11
4WV-46119-11-00 Shim, Thrust (0.2T)Ur |
4WV-46119-11-00 |
from US $7.79 |
||
|
11
|
11
4WV-46119-21-00 Shim, Thrust (0.3T)Ur |
4WV-46119-21-00 |
from US $7.79 |
||
|
11
|
11
4WV-46119-31-00 Shim, Thrust (0.4T)Ur |
4WV-46119-31-00 |
from US $7.79 |
||
|
12
|
12
5KM-46155-00-00 Bolt 1 |
5KM-46155-00-00 |
from US $5.81 |
||
|
13
|
13
5KM-46470-12-00 Limited Slip Diff. Assy |
5KM-46470-12-00 |
from US $905.07 |
||
| replacement | |||||
|
13
|
13
5KM-46470-13-00 Limited Slip Diff. Assy |
5KM-46470-13-00 |
from US $817.71 |
||
|
14
|
14
91317-08020-00 Bolt |
91317-08020-00 |
from US $1.07 |
||
|
15
|
15
90113-08004-00 Bolt, Set |
90113-08004-00 |
from US $7.51 |
||
|
16
|
16
4WV-46159-00-00 Bolt 3 |
4WV-46159-00-00 |
from US $4.36 |
||
|
17
|
17
5KM-46143-00-00 Ring, Hole Snap 2 |
5KM-46143-00-00 |
from US $8.50 |
||
|
18
|
18
5KM-42752-00-00 Shaft |
5KM-42752-00-00 |
from US $7.08 |
||
|
19
|
19
5KM-4616A-02-00 Servo Motor Comp |
5KM-4616A-02-00 |
from US $683.76 |
||
|
20
|
20
5KM-46441-00-00 Clutch, Driven |
5KM-46441-00-00 |
from US $77.09 |
||
|
21
|
21
5KM-18319-00-00 Shaft 2 |
5KM-18319-00-00 |
from US $37.55 |
||
|
22
|
22
93210-82001-00 O-Ring |
93210-82001-00 |
from US $6.94 |
||
|
23
|
23
93211-40040-00 O-Ring |
93211-40040-00 |
from US $10.91 |
||
|
24
|
24
93306-00709-00 Bearing |
93306-00709-00 |
from US $47.53 |
||
|
25
|
25
93306-91201-00 Bearing |
93306-91201-00 |
from US $55.26 |
||
|
26
|
26
93316-00702-00 Bearing |
93316-00702-00 |
from US $37.86 |
||
|
27
|
27
4WV-46167-00-00 Bearing 4 |
4WV-46167-00-00 |
from US $23.80 |
||
|
28
|
28
90340-10001-00 Plug, Straight Screw |
90340-10001-00 |
from US $4.39 |
||
|
29
|
29
90430-10003-00 Gasket |
90430-10003-00 |
from US $2.41 |
||
|
30
|
30
5KM-46451-00-00 Adapter |
5KM-46451-00-00 |
from US $89.53 |
||
|
31
|
31
5KM-46119-01-00 Shim, Thrust (0.1T)Ur |
5KM-46119-01-00 |
from US $12.47 |
||
|
31
|
31
5KM-46119-11-00 Shim, Thrust (0.2T)Ur |
5KM-46119-11-00 |
from US $12.47 |
||
|
31
|
31
5KM-46119-21-00 Shim, Thrust (0.3T)Ur |
5KM-46119-21-00 |
from US $10.51 |
||
|
31
|
31
5KM-46119-31-00 Shim, Thrust (0.4T)Ur |
5KM-46119-31-00 |
from US $10.51 |
||
|
31
|
31
5KM-46119-41-00 Shim, Thrust (0.5T)Ur |
5KM-46119-41-00 |
from US $9.40 |
||
|
31
|
31
5KM-46119-51-00 Shim, Thrust (1.0T)Ur |
5KM-46119-51-00 |
from US $12.47 |
||
|
31
|
31
5KM-46119-61-00 Shim, Thrust (1.5T)Ur |
5KM-46119-61-00 |
from US $12.47 |
||
|
32
|
32
5KM-18514-00-00 Fork, Shift 4 |
5KM-18514-00-00 |
from US $22.24 |
||
|
33
|
33
5KM-46107-00-00 Cross Joint Comp. 2 |
5KM-46107-00-00 |
from US $302.57 |
||
|
34
|
34
93399-99948-00 Bearing |
93399-99948-00 |
from US $15.88 |
||
|
35
|
35
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.66 |
||
|
36
|
36
5GT-46187-00-00 Spider |
5GT-46187-00-00 |
from US $62.86 |
||
|
37
|
37
93399-99948-00 Bearing |
93399-99948-00 |
from US $15.88 |
||
|
38
|
38
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.66 |
||
|
39
|
39
90340-14029-00 Plug, Straight Screw |
90340-14029-00 |
from US $2.32 |
||
|
40
|
40
214-11198-01-00 Washer-gasket |
214-11198-01-00 |
from US $1.66 |
||
|
41
|
41
90445-070G6-00 Hose (L1700) |
90445-070G6-00 |
from US $11.05 |
||
|
42
|
42
90467-07029-00 Clip |
90467-07029-00 |
from US $1.70 |
||
|
43
|
43
5KM-46107-00-00 Cross Joint Comp. 2 |
5KM-46107-00-00 |
from US $302.57 |
||
|
44
|
44
93399-99948-00 Bearing |
93399-99948-00 |
from US $15.88 |
||
|
45
|
45
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.66 |
||
|
46
|
46
5GT-46187-00-00 Spider |
5GT-46187-00-00 |
from US $62.86 |
||
|
47
|
47
93399-99948-00 Bearing |
93399-99948-00 |
from US $15.88 |
||
|
48
|
48
93440-20088-00 Circlip |
93440-20088-00 |
from US $1.66 |
||
|
49
|
49
5UG-46173-00-00 Shaft, Drive 2 |
5UG-46173-00-00 |
US $332.91 |
||
|
50
|
50
99009-19400-00 Circlip |
99009-19400-00 |
from US $1.56 |
||
|
51
|
51
90201-20266-00 Washer, Plate |
90201-20266-00 |
from US $1.56 |
||
|
52
|
52
90501-235L9-00 Spring, Compression |
90501-235L9-00 |
from US $2.41 |
||
|
53
|
53
5GT-46136-00-00 Seal 1 |
5GT-46136-00-00 |
from US $8.93 |
||
|
54
|
54
5GT-46137-00-00 Seal 2 |
5GT-46137-00-00 |
from US $2.69 |
||
|
55
|
55
958-17100-30-00 Bolt, Flange |
958-17100-30-00 |
from US $1.07 |
||
|
56
|
56
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
|
57
|
57
90105-10N51-00 Bolt, Flange |
90105-10N51-00 |
from US $7.51 |
||
|
58
|
58
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
59
|
59
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.56 |
||
