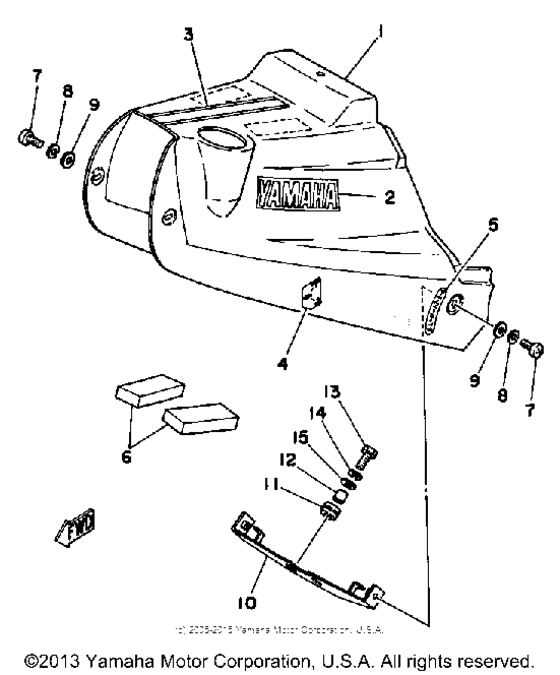

Side cover Diagram Yamaha TRI-MOTO Tri-Moto 125
- Model code
- YT125G
- Engine Capacity
- 123
- Year
- 1980
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Tri-Moto 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3X3-21710-01-33
Side Cover Assembly 1
YELLOW - BLK GRAPHIC |
3X3-21710-01-33 |
— | ||
|
2
|
2
3X3-24161-00-00
Emblem 1
|
3X3-24161-00-00 |
— | ||
|
3
|
3
3X3-24162-00-00
Emblem 2
|
3X3-24162-00-00 |
— | ||
|
4
|
4
3X3-21788-00-00
Graphic
|
3X3-21788-00-00 |
— | ||
|
5
|
5
3X3-21789-00-00
Graphic
|
3X3-21789-00-00 |
— | ||
|
6
|
6
3X3-21746-00-00
Damper
|
3X3-21746-00-00 |
— | ||
|
7
|
7
985-06060-16-00
Screw Pan Head
|
985-06060-16-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.42 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.93 |
||
|
9
|
9
929-06062-00-00
Washer
|
929-06062-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
10
|
10
3X3-2172E-00-00
Stay, Side Cover 1
|
3X3-2172E-00-00 |
— | ||
|
11
|
11
90480-12475-00 Grommet(2Gh) |
90480-12475-00 |
from US $1.35 |
||
|
12
|
12
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
12
|
12
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
13
|
13
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
13
|
13
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
