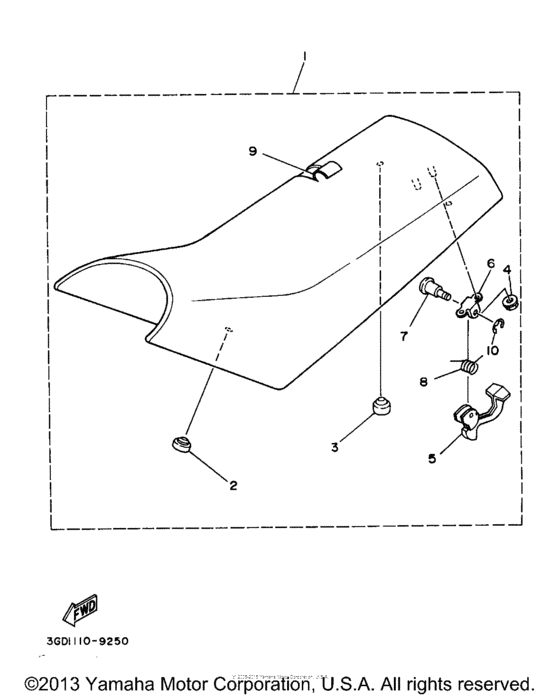

Seat Diagram Yamaha WARRIOR 350
- Model code
- YFM350XJ
- Engine Capacity
- 348
- Year
- 1997
- Sales region
- USA
- Power
- 28 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Warrior
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UY-24710-10-00
Single Seat Assembly (1Uy-24710
1UY-24710 UR YAMAHA BLIE |
1UY-24710-10-00 |
— | ||
|
1
|
1
3GD-24710-40-00
Single Seat Assembly
UR FRENCH BLUE |
3GD-24710-40-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
UR FRENCH BLUE |
999-99999-99-00 |
— | ||
|
2
|
2
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2 |
||
|
3
|
3
371-27114-00-00 Stopper, Main Stand |
371-27114-00-00 |
from US $7.23 |
||
|
4
|
4
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
5
|
5
3GD-24776-00-00 Lever, Seat |
3GD-24776-00-00 |
from US $18.99 |
||
|
6
|
6
4K0-24775-00-00 Bracket, Seat Lever |
4K0-24775-00-00 |
from US $7.51 |
||
|
7
|
7
4K0-24774-01-00 Pin |
4K0-24774-01-00 |
from US $7.51 |
||
|
8
|
8
90508-20454-00 Spring, Torsion |
90508-20454-00 |
from US $2.83 |
||
|
9
|
9
3GD-24731-40-00
Cover, Seat
UR FRENCH BLUE |
3GD-24731-40-00 |
— | ||
|
9
|
9
1UY-24731-10-00
Cover, Seat
UR YAMAHA BLUE |
1UY-24731-10-00 |
— | ||
|
10
|
10
93430-04002-00 Circlip |
93430-04002-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
99080-04600-00 Circlip |
99080-04600-00 |
from US $1.34 |
||
