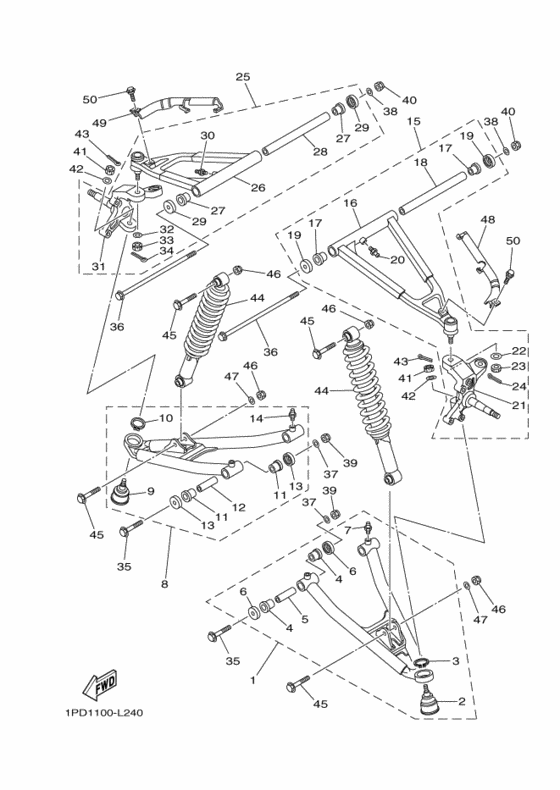

Front suspension & wheel Diagram Yamaha YFZ450 YFZ450R
- Model code
- 1PD2
- Engine Capacity
- 449
- Year
- 2012
- Sales region
- Europe (010)
- Colour
- Black Metallic J (SMJ; 0906)
- Color Variant
- B
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TG-23507-00-00 Front Lower Arm Sub-Assy (L.h) |
5TG-23507-00-00 |
from US $327.44 |
||
| replacement | |||||
|
1
|
1
5TG-23507-01-00 Front Lower Arm Sub-Assy (L.h) |
5TG-23507-01-00 |
from US $327.44 |
||
|
2
|
2
5LP-23579-00-00 Ball Joint 2 |
5LP-23579-00-00 |
from US $59.18 |
||
|
3
|
3
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
4
|
4
90381-15088-00 Bush, Solid |
90381-15088-00 |
from US $12.61 |
||
|
5
|
5
90387-101R3-00 Collar |
90387-101R3-00 |
from US $10.20 |
||
|
6
|
6
5YT-23517-00-00 Cover, Thrust 1 |
5YT-23517-00-00 |
from US $5.23 |
||
| replacement | |||||
|
6
|
6
1UY-23517-01-00 Cover, Thrust 1 |
1UY-23517-01-00 |
from US $6.96 |
||
|
7
|
7
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
7
|
7
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
8
|
8
5TG-23508-00-00 Front Lower Arm Sub-Assy (R.h) |
5TG-23508-00-00 |
from US $327.44 |
||
| replacement | |||||
|
8
|
8
5TG-23508-01-00 Front Lower Arm Sub-Assy (R.h) |
5TG-23508-01-00 |
from US $226.80 |
||
|
9
|
9
5LP-23579-00-00 Ball Joint 2 |
5LP-23579-00-00 |
from US $59.18 |
||
|
10
|
10
99009-30400-00 Circlip |
99009-30400-00 |
from US $1.56 |
||
|
11
|
11
90381-15088-00 Bush, Solid |
90381-15088-00 |
from US $12.61 |
||
|
12
|
12
90387-101R3-00 Collar |
90387-101R3-00 |
from US $10.20 |
||
|
13
|
13
5YT-23517-00-00 Cover, Thrust 1 |
5YT-23517-00-00 |
from US $5.23 |
||
| replacement | |||||
|
13
|
13
1UY-23517-01-00 Cover, Thrust 1 |
1UY-23517-01-00 |
from US $6.96 |
||
|
14
|
14
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
14
|
14
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
15
|
15
5TG-23505-30-00 Front Upper Arm Sub Assy LhLH |
5TG-23505-30-00 |
from US $484.29 |
||
| replacement | |||||
|
15
|
15
5TG-23505-32-00 Front Upper Arm Sub Assy LhLH |
5TG-23505-32-00 |
from US $484.29 |
||
|
16
|
16
5TG-23540-00-00 Front Upper Arm Comp |
5TG-23540-00-00 |
from US $294.28 |
||
| replacement | |||||
|
16
|
16
5TG-23540-02-00 Front Upper Arm Comp. (Left) |
5TG-23540-02-00 |
from US $223.74 |
||
|
17
|
17
90381-15088-00 Bush, Solid |
90381-15088-00 |
from US $12.61 |
||
|
18
|
18
90387-100Y6-00 Collar |
90387-100Y6-00 |
from US $21.68 |
||
|
19
|
19
5YT-23517-00-00 Cover, Thrust 1 |
5YT-23517-00-00 |
from US $5.23 |
||
| replacement | |||||
|
19
|
19
1UY-23517-01-00 Cover, Thrust 1 |
1UY-23517-01-00 |
from US $6.96 |
||
|
20
|
20
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
20
|
20
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
21
|
21
1S3-23501-00-00 Steering Knuckle Assy (Left) |
1S3-23501-00-00 |
from US $222.44 |
||
| replacement | |||||
|
21
|
21
1S3-23501-01-00 Steering Knuckle Assy (Left) |
1S3-23501-01-00 |
from US $222.44 |
||
|
22
|
22
90209-10229-00 Washer |
90209-10229-00 |
from US $1.34 |
||
|
23
|
23
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
24
|
24
91402-20020-00 Pin, Cotter |
91402-20020-00 |
US $1.56 |
||
| replacement | |||||
|
24
|
24
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
25
|
25
5TG-23506-30-00 Front Upper Arm Sub Assy RhRH |
5TG-23506-30-00 |
from US $625.68 |
||
| replacement | |||||
|
25
|
25
5TG-23506-32-00 Front Upper Arm Sub Assy RhRH |
5TG-23506-32-00 |
from US $484.29 |
||
|
26
|
26
5TG-23550-00-00 Front Upper Arm Comp |
5TG-23550-00-00 |
from US $294.28 |
||
| replacement | |||||
|
26
|
26
5TG-23550-02-00 Front Upper Arm Comp. (Right) |
5TG-23550-02-00 |
from US $223.74 |
||
|
27
|
27
90381-15088-00 Bush, Solid |
90381-15088-00 |
from US $12.61 |
||
|
28
|
28
90387-100Y6-00 Collar |
90387-100Y6-00 |
from US $21.68 |
||
|
29
|
29
5YT-23517-00-00 Cover, Thrust 1 |
5YT-23517-00-00 |
from US $5.23 |
||
| replacement | |||||
|
29
|
29
1UY-23517-01-00 Cover, Thrust 1 |
1UY-23517-01-00 |
from US $6.96 |
||
|
30
|
30
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
30
|
30
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
31
|
31
1S3-23502-00-00 Steering Knuckle Assy (Right) |
1S3-23502-00-00 |
from US $222.44 |
||
| replacement | |||||
|
31
|
31
1S3-23502-01-00 Steering Knuckle Assy (Right) |
1S3-23502-01-00 |
from US $222.44 |
||
|
32
|
32
90209-10229-00 Washer |
90209-10229-00 |
from US $1.34 |
||
|
33
|
33
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
34
|
34
91402-20020-00 Pin, Cotter |
91402-20020-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
35
|
35
90105-10135-00 Bolt, Flange |
90105-10135-00 |
from US $4.11 |
||
|
36
|
36
90105-10132-00 Bolt, Flange |
90105-10132-00 |
from US $10.58 |
||
| replacement | |||||
|
36
|
36
90105-10651-00 Bolt, Flange |
90105-10651-00 |
from US $12.58 |
||
|
37
|
37
90201-10037-00 Washer, Plate |
90201-10037-00 |
from US $1.70 |
||
|
38
|
38
90201-10037-00 Washer, Plate |
90201-10037-00 |
from US $1.70 |
||
|
39
|
39
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
40
|
40
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
41
|
41
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.66 |
||
|
42
|
42
90209-10229-00 Washer |
90209-10229-00 |
from US $1.34 |
||
|
43
|
43
91402-20020-00 Pin, Cotter |
91402-20020-00 |
US $1.56 |
||
| replacement | |||||
|
43
|
43
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
44
|
44
1PD-23350-00-00 Shock Absorber Assy |
1PD-23350-00-00 |
US $330.12 |
||
|
45
|
45
90105-10131-00 Bolt, Washer Based |
90105-10131-00 |
from US $3.26 |
||
|
46
|
46
90185-10012-00 Nut, Self-Locking |
90185-10012-00 |
from US $2.32 |
||
|
47
|
47
90201-10035-00 Washer, Plate |
90201-10035-00 |
from US $1.34 |
||
|
48
|
48
5TG-25875-00-00 Holder, Brake Hose 1 |
5TG-25875-00-00 |
from US $5.24 |
||
|
49
|
49
5TG-25876-00-00 Holder, Brake Hose 2 |
5TG-25876-00-00 |
from US $5.24 |
||
|
50
|
50
90109-067F4-00 Bolt |
90109-067F4-00 |
from US $2.13 |
||
