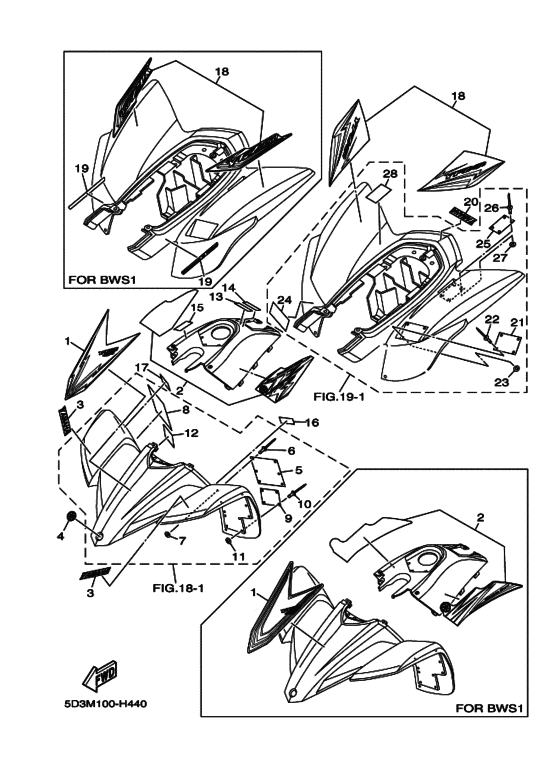

Emblem & label 1 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5D3N
- Engine Capacity
- 449
- Year
- 2009
- Sales region
- Europe (010)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Color Variant
- A
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5D3-21569-80-00 Graphic 1UR FOR DPBSE |
5D3-21569-80-00 |
from US $40.58 |
||
|
2
|
2
5D3-24250-80-00 Graphic Set 2UR FOR DPBSE |
5D3-24250-80-00 |
from US $74.86 |
||
|
3
|
3
3GD-2153E-00-00 Emblem, YamahaUR FOR DPBSE |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
3
|
3
3GD-2153E-01-00 EMBLEM YAMAHAUR FOR DPBSE |
3GD-2153E-01-00 |
from US $5.07 |
||
|
4
|
4
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
5
|
5
5FE-21568-01-00 Label, WarningENGLISH |
5FE-21568-01-00 |
from US $43.52 |
||
|
6
|
6
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
7
|
7
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
8
|
8
4WU-21568-10-00 Label, WarningFRENCH |
4WU-21568-10-00 |
from US $19.84 |
||
|
9
|
9
4D3-2816L-00-00 Label, Warning AgeENGLISH |
4D3-2816L-00-00 |
from US $17.86 |
||
|
10
|
10
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
11
|
11
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
12
|
12
4D3-2816L-10-00 Label, Warning AgeFRENCH |
4D3-2816L-10-00 |
US $16.15 |
||
|
13
|
13
5PW-2415E-11-00 Label, CautionENGLISH |
5PW-2415E-11-00 |
from US $2.55 |
||
| replacement | |||||
|
13
|
13
5PW-2415E-12-00 ENGLISH |
5PW-2415E-12-00 |
US $4.32 |
||
|
14
|
14
5PW-2415E-31-00
Label, Caution
FRENCH |
5PW-2415E-31-00 |
— | ||
|
15
|
15
4SH-2416E-00-00
Label, Caution Canada
ENGLISH |
4SH-2416E-00-00 |
— | ||
|
16
|
16
4D3-2817J-00-00 Plate, Ansi SviaENGLISH |
4D3-2817J-00-00 |
from US $1.98 |
||
|
17
|
17
4D3-2817J-10-00
Plate, Ansi Svia
FRENCH |
4D3-2817J-10-00 |
— | ||
|
18
|
18
5D3-2165A-80-00 Graphic Set, Rear FenderUR FOR DPBSE |
5D3-2165A-80-00 |
from US $44.46 |
||
|
20
|
20
4ES-2153E-40-00 Emblem, YamahaUR FOR DPBSE |
4ES-2153E-40-00 |
from US $4.53 |
||
| replacement | |||||
|
20
|
20
4ES-2153E-41-00 UR FOR DPBSE |
4ES-2153E-41-00 |
US $4.46 |
||
|
21
|
21
5D3-2816M-00-00 Label, Warning Tire & LoadENGLISH |
5D3-2816M-00-00 |
US $10.20 |
||
|
22
|
22
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
23
|
23
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
24
|
24
5D3-2816M-10-00
Label, Warning Tire & Load
FRENCH |
5D3-2816M-10-00 |
— | ||
|
25
|
25
5FE-2151H-01-00 Label 5ENGLISH |
5FE-2151H-01-00 |
from US $23.80 |
||
|
26
|
26
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
27
|
27
90201-03008-00 Washer, Plate |
90201-03008-00 |
from US $1.70 |
||
|
28
|
28
4WU-2151H-10-00 Label 5FRENCH |
4WU-2151H-10-00 |
US $12.04 |
||
