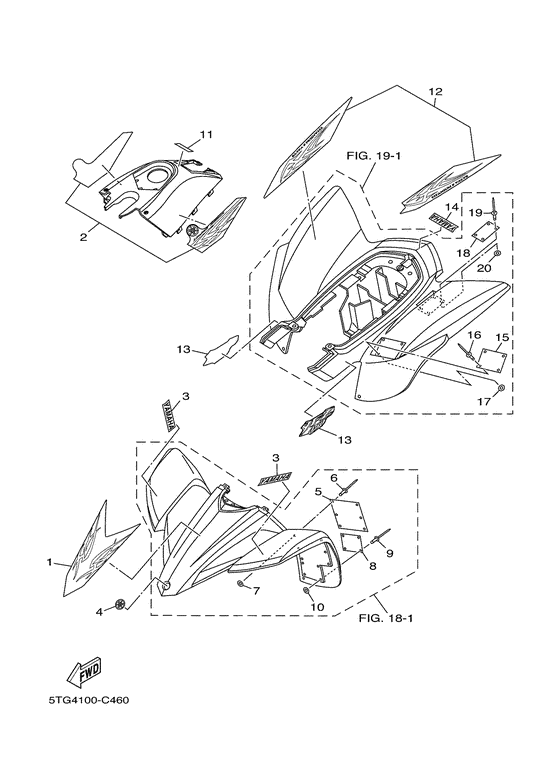

Emblem & label 3 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG4
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- Australia (020)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-21569-20-00 Graphic 1 |
5TG-21569-20-00 |
US $51.37 |
||
|
02
|
02
5TG-24250-20-00 Graphic Set |
5TG-24250-20-00 |
US $56.84 |
||
|
03
|
03
3GD-2153E-10-00 Emblem, Yamaha |
3GD-2153E-10-00 |
from US $5.93 |
||
| replacement | |||||
|
03
|
03
3GD-2153E-11-00 EMBLEM, YAMAHA |
3GD-2153E-11-00 |
from US $5.07 |
||
|
04
|
04
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
05
|
05
5FE-21568-11-00 Label, WarningEnglish |
5FE-21568-11-00 |
from US $25.80 |
||
|
06
|
06
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
07
|
07
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
08
|
08
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
08
|
08
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $17.86 |
||
|
09
|
09
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
10
|
10
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
11
|
11
5TG-2415E-00-00
Label, Caution
|
5TG-2415E-00-00 |
— | ||
|
12
|
12
5TG-2165A-20-00 Graphic Set, Rear Fender |
5TG-2165A-20-00 |
US $58.25 |
||
|
13
|
13
5TG-2163G-20-00
Emblem 1
|
5TG-2163G-20-00 |
— | ||
|
14
|
14
4ES-2153E-10-00
Emblem, Yamaha
|
4ES-2153E-10-00 |
— | ||
| replacement | |||||
|
14
|
14
4ES-2153E-11-00 Emblem, Yamaha |
4ES-2153E-11-00 |
US $5.45 |
||
|
15
|
15
5TG-21696-00-00 Label, Caution |
5TG-21696-00-00 |
from US $33.15 |
||
|
16
|
16
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
17
|
17
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
18
|
18
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
19
|
19
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
20
|
20
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
