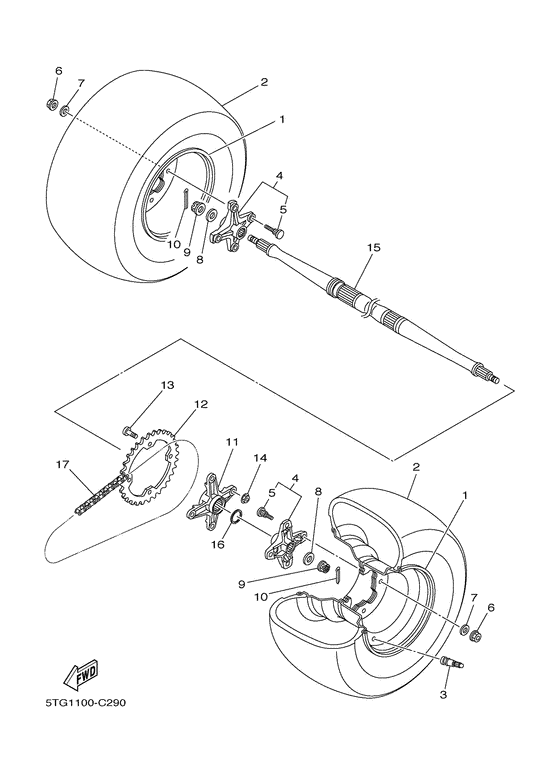

Rear wheel Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TG6
- Engine Capacity
- 449
- Year
- 2004
- Sales region
- France (010)
- Colour
- Black Metallic J (SMJ; 0906)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5LP-25390-20-00 Rear Wheel Comp |
5LP-25390-20-00 |
from US $246.69 |
||
| replacements | |||||
|
01
|
01
5LP-25390-22-YX Rear Wheel Comp |
5LP-25390-22-YX |
US $320.60 |
||
|
01
|
01
5LP-F5390-29-00 WHEEL,REAR |
5LP-F5390-29-00 |
US $320.60 |
||
|
02
|
02
94110-09009-00 Tire (At20X10R9 Kt355 Tl)Dunlop |
94110-09009-00 |
US $336.17 |
||
| replacement | |||||
|
02
|
02
94110-09015-00 Tire (At20X10R9 Kt355 Tl)Dunlop |
94110-09015-00 |
US $385.29 |
||
|
03
|
03
939-00000-22-00
Valve, Rim (Tr413)
Taiheiyo |
939-00000-22-00 |
— | ||
| replacement | |||||
|
03
|
03
939-00000-30-00 Valve, Rim (Tr412)Taiheiyo |
939-00000-30-00 |
from US $7.65 |
||
|
04
|
04
5TG-25383-10-00 Collar, Wheel |
5TG-25383-10-00 |
from US $93.81 |
||
| replacement | |||||
|
04
|
04
1PE-F53K0-00-00 Wheel Shaft Collar Assy |
1PE-F53K0-00-00 |
from US $93.81 |
||
|
05
|
05
90114-10009-00 Bolt, Ribbed Neck(3Gd) |
90114-10009-00 |
from US $2.66 |
||
|
06
|
06
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
06
|
06
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
|
07
|
07
92907-10200-00 Washer, Plain |
92907-10200-00 |
from US $0.90 |
||
|
08
|
08
90201-14226-00 Washer, Plate |
90201-14226-00 |
from US $3.20 |
||
| replacement | |||||
|
08
|
08
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
09
|
09
90171-14037-00 Nut, Castle (29U) |
90171-14037-00 |
from US $5.64 |
||
|
10
|
10
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
10
|
10
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
11
|
11
5TG-25386-00-00 Collar, Sprocket Axle |
5TG-25386-00-00 |
from US $114.81 |
||
| replacement | |||||
|
11
|
11
1S3-25386-00-00 Collar, Sprocket Axle |
1S3-25386-00-00 |
from US $105.14 |
||
|
12
|
12
5TG-25438-00-00 Sprocket, Driven (38T) |
5TG-25438-00-00 |
from US $39.79 |
||
| replacement | |||||
|
12
|
12
5TG-25438-10-00 Sprocket, Driven (38T) |
5TG-25438-10-00 |
from US $39.79 |
||
|
13
|
13
90109-10010-00 Bolt |
90109-10010-00 |
from US $4.11 |
||
|
14
|
14
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
15
|
15
5TG-25381-00-00
Axle, Wheel
|
5TG-25381-00-00 |
— | ||
|
16
|
16
5TG-25415-00-00 Circlip |
5TG-25415-00-00 |
from US $1.70 |
||
| replacement | |||||
|
16
|
16
1S3-25415-00-00 Circlip |
1S3-25415-00-00 |
from US $1.34 |
||
|
17
|
17
945-82130-96-00 Chain (Did520Mxv) |
945-82130-96-00 |
from US $160.27 |
||
