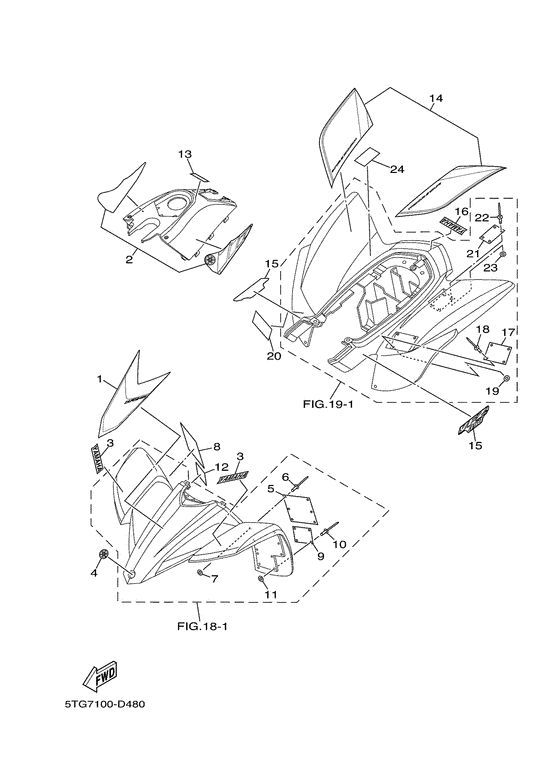

Emblem & label 5 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TGC
- Engine Capacity
- 449
- Year
- 2006
- Sales region
- Japan (030)
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-21569-70-00 Graphic 1 |
5TG-21569-70-00 |
US $89.50 |
||
|
02
|
02
5TG-24250-70-00 Graphic Set 2 |
5TG-24250-70-00 |
US $61.47 |
||
|
03
|
03
3GD-2153E-00-00 Emblem, Yamaha |
3GD-2153E-00-00 |
from US $5.95 |
||
| replacement | |||||
|
03
|
03
3GD-2153E-01-00 EMBLEM YAMAHA |
3GD-2153E-01-00 |
from US $5.07 |
||
|
04
|
04
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $17.86 |
||
|
05
|
05
5FE-21568-11-00 Label, WarningEnglish |
5FE-21568-11-00 |
from US $25.80 |
||
|
06
|
06
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
07
|
07
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
08
|
08
4SH-21568-00-00 Label, WarningJapanese |
4SH-21568-00-00 |
US $21.15 |
||
|
09
|
09
5FE-21697-01-00
Label, Warning Age
English |
5FE-21697-01-00 |
— | ||
| replacement | |||||
|
09
|
09
4D3-2816L-00-00 Label, Warning AgeEnglish |
4D3-2816L-00-00 |
from US $17.86 |
||
|
10
|
10
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
11
|
11
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
12
|
12
4SH-21697-00-00 Label, Caution 2Japanese |
4SH-21697-00-00 |
US $14.17 |
||
|
13
|
13
3FB-2415E-C0-00 Label, CautionJapanese |
3FB-2415E-C0-00 |
US $15.30 |
||
|
14
|
14
5TG-2165A-50-00 Graphic Set, Rear Fender |
5TG-2165A-50-00 |
from US $88.50 |
||
|
15
|
15
5TG-2163G-30-00 Emblem 1 |
5TG-2163G-30-00 |
US $9.61 |
||
|
16
|
16
4ES-2153E-01-00
Emblem, Yamaha
|
4ES-2153E-01-00 |
— | ||
| replacement | |||||
|
16
|
16
4ES-2153E-02-00 Emblem, Yamaha |
4ES-2153E-02-00 |
from US $6.51 |
||
|
17
|
17
5TG-21696-30-00 Label, Caution |
5TG-21696-30-00 |
from US $31.03 |
||
|
18
|
18
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
19
|
19
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
20
|
20
5TG-21696-60-00
Label, Caution
|
5TG-21696-60-00 |
— | ||
|
21
|
21
5FE-2151H-01-00 Label 5English |
5FE-2151H-01-00 |
from US $23.80 |
||
|
22
|
22
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
23
|
23
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
24
|
24
4LB-2151H-02-00 Label 5Japanese |
4LB-2151H-02-00 |
US $11.19 |
||
