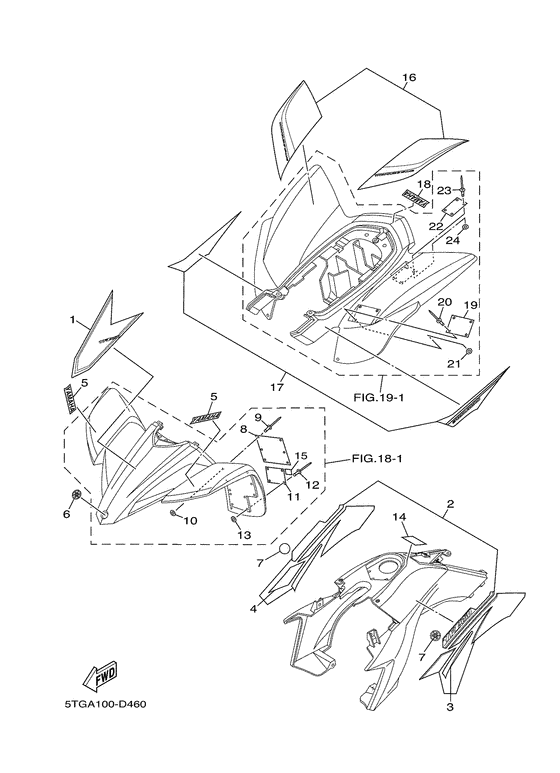

Emblem & label 3 Diagram Yamaha YFZ450 YFZ450R
- Model code
- 5TGD
- Engine Capacity
- 449
- Year
- 2005
- Sales region
- France (010)
- Colour
- Light Reddish Yellow Solid 1 (LRYS1; 0386)
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5TG-21569-60-00 Graphic 1 |
5TG-21569-60-00 |
US $117.41 |
||
|
02
|
02
5TG-24250-60-00
Graphic Set
|
5TG-24250-60-00 |
— | ||
|
03
|
03
5TG-2173L-00-00 Graphic Set 1Lh |
5TG-2173L-00-00 |
US $155.65 |
||
|
04
|
04
5TG-2174L-00-00 Graphic Set 2Rh |
5TG-2174L-00-00 |
US $144.27 |
||
|
05
|
05
3GD-2153E-30-00
Emblem, Yamaha
|
3GD-2153E-30-00 |
— | ||
| replacement | |||||
|
05
|
05
3GD-2153E-31-00 EMBLEM, YAMAHA |
3GD-2153E-31-00 |
from US $3.04 |
||
|
06
|
06
4KN-2836B-10-00 Tuning Fork Mark |
4KN-2836B-10-00 |
from US $18.18 |
||
|
07
|
07
5FK-2175C-00-00 Tuning Fork Mark |
5FK-2175C-00-00 |
from US $9.49 |
||
| replacement | |||||
|
07
|
07
5FK-2175C-01-00 TUNING FORK MARK |
5FK-2175C-01-00 |
from US $9.49 |
||
|
08
|
08
5FK-21568-00-00 Label, Warning |
5FK-21568-00-00 |
US $59.55 |
||
|
09
|
09
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
10
|
10
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
11
|
11
5FK-21697-00-00 Label, Caution 2 |
5FK-21697-00-00 |
US $47.11 |
||
|
12
|
12
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
13
|
13
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
14
|
14
5TG-2415E-00-00
Label, Caution
|
5TG-2415E-00-00 |
— | ||
|
15
|
15
4GB-2155A-00-00
Mark, Ce
|
4GB-2155A-00-00 |
— | ||
|
16
|
16
5TG-2165A-40-00
Graphic Set, Rear Fender
|
5TG-2165A-40-00 |
— | ||
|
17
|
17
5TG-2165B-20-00 Graphic Set, Rear Fender |
5TG-2165B-20-00 |
US $92.99 |
||
|
18
|
18
4ES-2153E-40-00 Emblem, Yamaha |
4ES-2153E-40-00 |
from US $4.53 |
||
| replacement | |||||
|
18
|
18
4ES-2153E-41-00 |
4ES-2153E-41-00 |
US $4.46 |
||
|
19
|
19
5TG-21696-M0-00
Label, Caution
|
5TG-21696-M0-00 |
— | ||
|
20
|
20
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
21
|
21
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
|
22
|
22
5FK-2151H-00-00
Label 5
|
5FK-2151H-00-00 |
— | ||
|
23
|
23
90267-32004-00 Rivet, Blind |
90267-32004-00 |
from US $2.13 |
||
|
24
|
24
90201-03313-00 Washer, Plate |
90201-03313-00 |
from US $1.84 |
||
