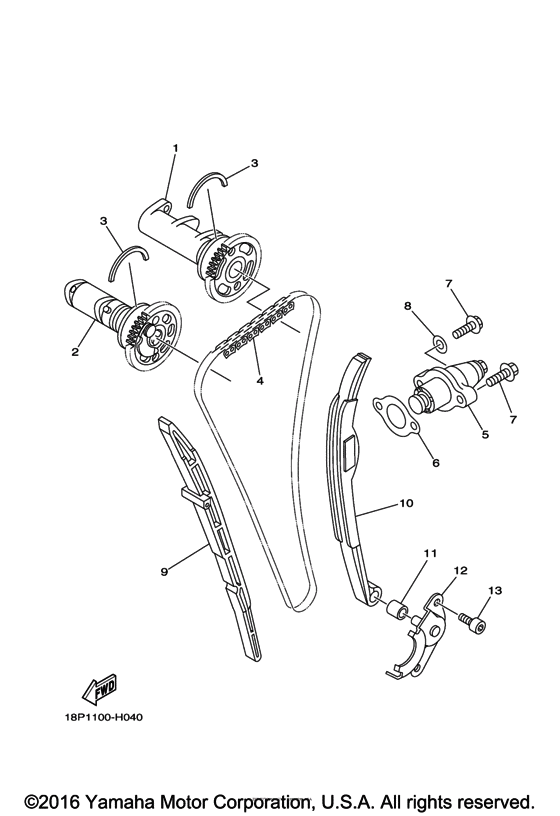

Camshaft & chain Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TD-12170-00-00 Camshaft Assy 1 |
1TD-12170-00-00 |
US $347.42 |
||
|
2
|
2
1TD-12180-00-00 Camshaft Assy 2 |
1TD-12180-00-00 |
US $362.56 |
||
|
3
|
3
93440-41178-00 Circlip |
93440-41178-00 |
from US $3.98 |
||
|
4
|
4
945-91571-20-00 Chain (98Xrh2010-120M) |
945-91571-20-00 |
from US $38.13 |
||
|
5
|
5
5TA-12210-10-00 Tensioner Assy, Cam Chain |
5TA-12210-10-00 |
from US $78.47 |
||
|
6
|
6
4FM-12213-00-00 Gasket, Tensioner CaseINCL. IN TOP END GASKET KIT |
4FM-12213-00-00 |
from US $1.56 |
||
|
7
|
7
95022-06025-00 Bolt, Flange |
95022-06025-00 |
from US $1.42 |
||
|
8
|
8
904-30060-14-00 Gasket (Copper washer)INCL. IN TOP END GASKET KIT |
904-30060-14-00 |
from US $1.28 |
||
|
9
|
9
2S2-12251-00-00 Damper, Chain 1 |
2S2-12251-00-00 |
from US $16.15 |
||
|
10
|
10
18P-12252-00-00 Damper, Chain 2 |
18P-12252-00-00 |
from US $75.30 |
||
| replacement | |||||
|
10
|
10
18P-12252-01-00 DAMPER CHAIN 2 |
18P-12252-01-00 |
from US $75.30 |
||
|
11
|
11
903-87070-30-00 Collar |
903-87070-30-00 |
from US $5.10 |
||
|
12
|
12
18P-12233-00-00 Plate, Guide Stopper 1 |
18P-12233-00-00 |
from US $19.69 |
||
|
13
|
13
901-10061-68-00
Bolt
|
901-10061-68-00 |
— | ||
| replacements | |||||
|
13
|
13
901-1006X-26-00
Bolt, Hexagon Socket Head(M01)
|
901-1006X-26-00 |
— | ||
|
13
|
13
91312-06014-00 Bolt |
91312-06014-00 |
from US $1.56 |
||
