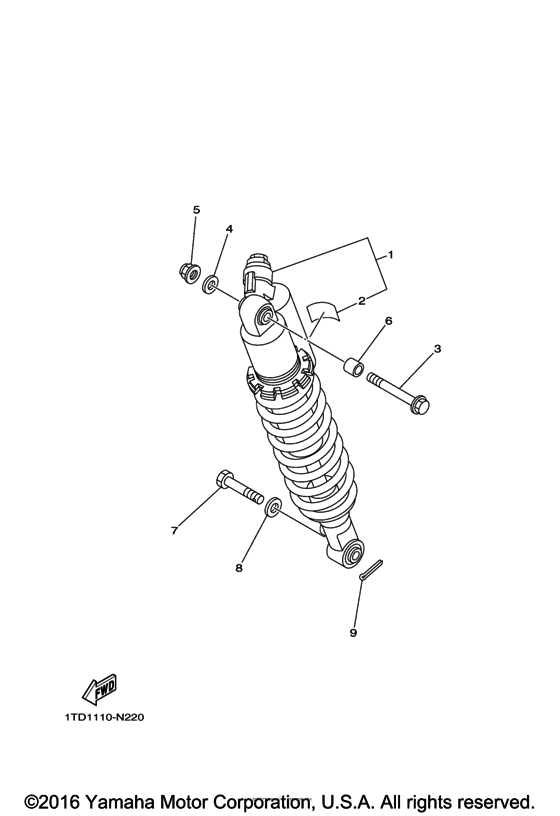

Rear suspension Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- 1TDG
- Engine Capacity
- 449
- Year
- 2015
- Sales region
- USA
- Базовая модель
- YFZ450RSFB
- Colour
- Yb
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1TD-F2200-00-00 Shock Absorber Assy, Rear |
1TD-F2200-00-00 |
US $622.78 |
||
|
2
|
2
1HP-F2259-01-00 Label, Warning |
1HP-F2259-01-00 |
US $14.26 |
||
|
3
|
3
90105-12038-00 Bolt, Flange |
90105-12038-00 |
from US $7.37 |
||
|
4
|
4
90201-12032-00 Washer, Plate |
90201-12032-00 |
from US $3.40 |
||
|
5
|
5
95612-12100-00 Nut, U |
95612-12100-00 |
from US $2.98 |
||
|
6
|
6
903-87120-46-00 Collar |
903-87120-46-00 |
from US $4.11 |
||
|
7
|
7
901-02120-05-00 Bolt, Pin Hole Hex |
901-02120-05-00 |
from US $9.49 |
||
|
8
|
8
90201-12034-00 Washer, Plate |
90201-12034-00 |
from US $2.55 |
||
|
9
|
9
91402-30025-00 Pin, Cotter |
91402-30025-00 |
US $1.42 |
||
| replacements | |||||
|
9
|
9
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
9
|
9
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
