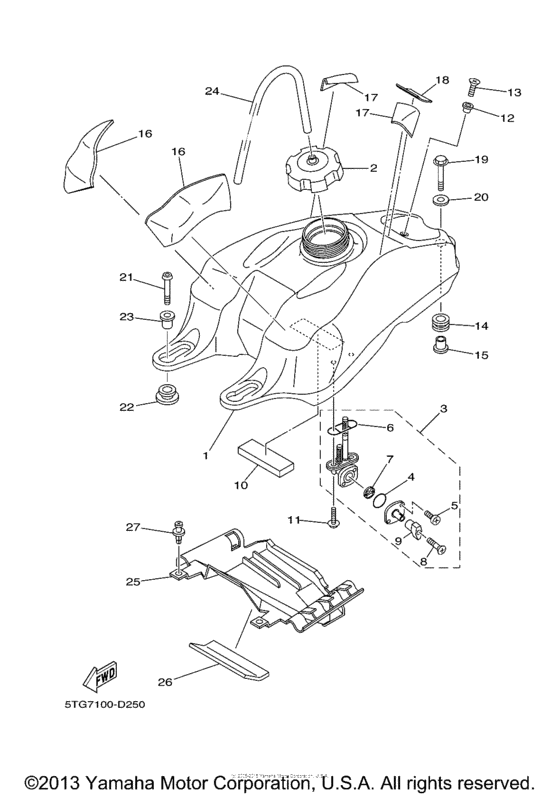

Fuel tank Diagram Yamaha YFZ450 YFZ450R Special Edition
- Model code
- YFZ450SPX
- Engine Capacity
- 449
- Year
- 2008
- Sales region
- USA
- Power
- 39 hp
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R Special Edition
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5TG-24110-10-00 Fuel Tank Comp |
5TG-24110-10-00 |
from US $390.10 |
||
|
2
|
2
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
3
|
3
5TG-24500-01-00 Fuel Cock Assy 1 |
5TG-24500-01-00 |
from US $37.44 |
||
| replacement | |||||
|
3
|
3
5TG-24500-10-00 Fuel Cock Assy 1 |
5TG-24500-10-00 |
from US $36.86 |
||
|
4
|
4
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.66 |
||
|
5
|
5
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
5
|
5
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
6
|
6
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
7
|
7
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
8
|
8
98606-04018-00 Screw, Flat Head |
98606-04018-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
98707-04016-00 Screw, Flat Head |
98707-04016-00 |
from US $1.42 |
||
|
9
|
9
4HM-24524-00-00 Lever, Cock |
4HM-24524-00-00 |
from US $5.38 |
||
|
10
|
10
5TG-24181-00-00 Damper, Locating 1 |
5TG-24181-00-00 |
from US $1.98 |
||
|
11
|
11
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
12
|
12
4EW-2412F-00-00 Bracket, Seat |
4EW-2412F-00-00 |
from US $5.81 |
||
|
13
|
13
98702-06025-00 Screw, Flat Head |
98702-06025-00 |
from US $1.56 |
||
|
14
|
14
90480-18290-00 Grommet |
90480-18290-00 |
from US $1.70 |
||
|
15
|
15
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
16
|
16
12R-21747-00-00 Seat, Battery |
12R-21747-00-00 |
from US $5.24 |
||
| replacement | |||||
|
16
|
16
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
17
|
17
M12-T133A-00-00 Seat, Damper A |
M12-T133A-00-00 |
from US $0.79 |
||
|
18
|
18
22F-2139X-00-00 Damper |
22F-2139X-00-00 |
from US $2.55 |
||
|
19
|
19
95822-06030-00 Bolt, Flange |
95822-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
20
|
20
90201-06033-00 Washer, Plate |
90201-06033-00 |
from US $1.70 |
||
|
21
|
21
92012-06025-00 Bolt, Button Head |
92012-06025-00 |
from US $1.42 |
||
|
22
|
22
90480-18004-00 Grommet |
90480-18004-00 |
from US $3.40 |
||
|
23
|
23
90387-066J1-00 Collar |
90387-066J1-00 |
from US $4.53 |
||
|
24
|
24
90445-08026-00 Hose |
90445-08026-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
90445-09823-00 Hose |
90445-09823-00 |
from US $1.98 |
||
|
25
|
25
5TG-2414H-00-00 Damper, Plate 1 |
5TG-2414H-00-00 |
from US $19.27 |
||
|
26
|
26
12R-21747-00-00 Seat, Battery |
12R-21747-00-00 |
from US $5.24 |
||
| replacement | |||||
|
26
|
26
5Y1-82122-00-00 Seat, Battery |
5Y1-82122-00-00 |
from US $4.47 |
||
|
27
|
27
902-69060-02-00 Rivet |
902-69060-02-00 |
from US $1.66 |
||
