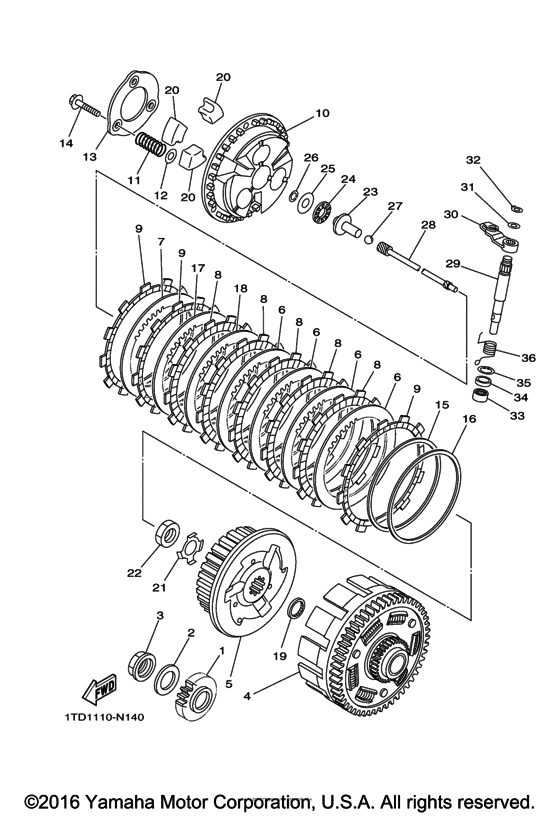

Clutch Diagram Yamaha YFZ450 YFZ450R
- Model code
- 1TDL
- Engine Capacity
- 449
- Year
- 2016
- Sales region
- USA
- Базовая модель
- YFZ45YSXGL
- Colour
- Dpbse
- 2WD/4WD/AWD
- 2WD
- Model
- YFZ450R
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2S2-16111-60-00 Gear, Primary Drive |
2S2-16111-60-00 |
from US $65.06 |
||
|
2
|
2
902-08250-45-00 Washer, Conical Spring |
902-08250-45-00 |
from US $9.35 |
||
|
3
|
3
90179-20009-00 Nut |
90179-20009-00 |
from US $16.01 |
||
|
4
|
4
1TD-16150-00-00 Primary Driven Gear Comp |
1TD-16150-00-00 |
from US $344.02 |
||
|
5
|
5
1TD-16371-00-00 Boss, Clutch |
1TD-16371-00-00 |
from US $108.18 |
||
|
6
|
6
4X7-16325-00-00 Plate, Clutch 2 |
4X7-16325-00-00 |
from US $8.28 |
||
| replacement | |||||
|
6
|
6
4X7-16325-10-00 PLATE CLUTCH 2 |
4X7-16325-10-00 |
from US $11.19 |
||
|
7
|
7
1TD-16324-00-00 Plate, Clutch 1 |
1TD-16324-00-00 |
from US $6.38 |
||
|
8
|
8
5VY-16321-00-00 Plate, Friction |
5VY-16321-00-00 |
from US $12.58 |
||
|
9
|
9
1TD-16331-00-00 Plate, Friction 2 |
1TD-16331-00-00 |
from US $17.86 |
||
|
10
|
10
1TD-16351-00-00 Plate, Pressure 1 |
1TD-16351-00-00 |
from US $55.82 |
||
|
11
|
11
1TD-16333-00-00 Spring, Clutch 1 |
1TD-16333-00-00 |
from US $6.94 |
||
|
12
|
12
1TD-16774-00-00 Washer |
1TD-16774-00-00 |
from US $3.54 |
||
|
13
|
13
1TD-16352-00-00 Plate, Pressure 2 |
1TD-16352-00-00 |
from US $5.38 |
||
|
14
|
14
1TD-16337-00-00 Screw, Spring |
1TD-16337-00-00 |
from US $1.28 |
||
|
15
|
15
1TD-16383-00-00 Spring.,cushion |
1TD-16383-00-00 |
from US $20.54 |
||
| replacement | |||||
|
15
|
15
1TD-16383-01-00 Spring.,Cushion |
1TD-16383-01-00 |
from US $20.54 |
||
|
16
|
16
1TD-16384-00-00 Plate, Seat |
1TD-16384-00-00 |
from US $5.38 |
||
|
17
|
17
5JG-16325-00-00 Plate, Clutch 2UR T=1.2 |
5JG-16325-00-00 |
from US $6.43 |
||
|
17
|
17
1TA-16325-00-00 Plate, Clutch 2UR T=2.0 |
1TA-16325-00-00 |
from US $12.24 |
||
| replacement | |||||
|
17
|
17
1TA-16325-10-00 PLATE CLUTCH 2UR T=2.0 |
1TA-16325-10-00 |
from US $8.28 |
||
|
17
|
17
4X7-16325-00-00 Plate, Clutch 2UR T=1.6 |
4X7-16325-00-00 |
from US $8.28 |
||
| replacement | |||||
|
17
|
17
4X7-16325-10-00 PLATE CLUTCH 2UR T=1.6 |
4X7-16325-10-00 |
from US $11.19 |
||
|
18
|
18
5JG-16325-00-00 Plate, Clutch 2UR T=1.2 |
5JG-16325-00-00 |
from US $6.43 |
||
|
18
|
18
1TA-16325-00-00 Plate, Clutch 2UR T=2.0 |
1TA-16325-00-00 |
from US $12.24 |
||
| replacement | |||||
|
18
|
18
1TA-16325-10-00 PLATE CLUTCH 2UR T=2.0 |
1TA-16325-10-00 |
from US $8.28 |
||
|
18
|
18
4X7-16325-00-00 Plate, Clutch 2UR T=1.6 |
4X7-16325-00-00 |
from US $8.28 |
||
| replacement | |||||
|
18
|
18
4X7-16325-10-00 PLATE CLUTCH 2UR T=1.6 |
4X7-16325-10-00 |
from US $11.19 |
||
|
19
|
19
5TA-16154-00-00 Plate, Thrust 1 |
5TA-16154-00-00 |
from US $10.63 |
||
|
20
|
20
1TD-16178-00-00 Absorber 3 |
1TD-16178-00-00 |
from US $20.26 |
||
|
21
|
21
90215-20005-00 Washer, Lock |
90215-20005-00 |
from US $3.32 |
||
|
22
|
22
90170-20327-00 Nut (34L) |
90170-20327-00 |
from US $6.94 |
||
|
23
|
23
5TG-16356-00-00 Rod, Push 1 |
5TG-16356-00-00 |
from US $30.32 |
||
|
24
|
24
93340-21505-00 Bearing |
93340-21505-00 |
from US $9.60 |
||
|
25
|
25
90201-125L6-00 Washer, Plate(1Re) |
90201-125L6-00 |
from US $1.84 |
||
|
26
|
26
93440-10085-00 Circlip |
93440-10085-00 |
from US $1.70 |
||
|
27
|
27
93515-32029-00 Ball |
93515-32029-00 |
from US $1.66 |
||
|
28
|
28
18P-16357-00-00 Rod, Push 2 |
18P-16357-00-00 |
from US $25.22 |
||
| replacement | |||||
|
28
|
28
18P-16357-01-00 Rod, Push 2 |
18P-16357-01-00 |
from US $25.22 |
||
|
29
|
29
18P-16382-00-00 Axle, Push Lever |
18P-16382-00-00 |
from US $54.02 |
||
|
30
|
30
18P-16342-00-00 Lever, Push |
18P-16342-00-00 |
from US $14.73 |
||
|
31
|
31
90201-10032-00 Washer, Plate |
90201-10032-00 |
from US $1.66 |
||
|
32
|
32
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
||
|
33
|
33
93317-11287-00 Bearing |
93317-11287-00 |
from US $9.35 |
||
|
34
|
34
931-02122-24-00 Oil Seal |
931-02122-24-00 |
from US $4.30 |
||
|
35
|
35
99009-20500-00 Circlip |
99009-20500-00 |
from US $1.56 |
||
|
36
|
36
905-08160-61-00 Spring, Torsion |
905-08160-61-00 |
from US $2.55 |
||
