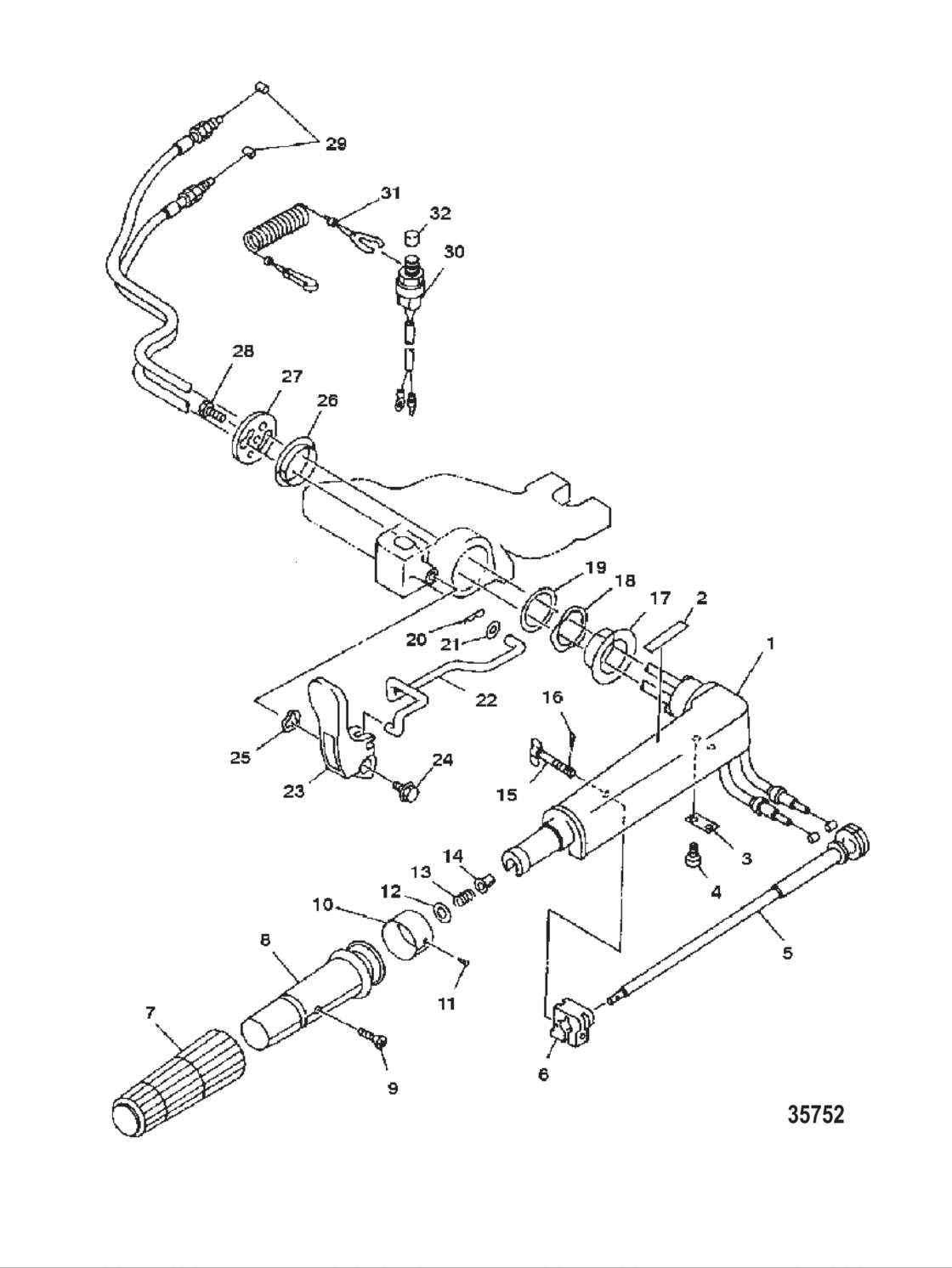

Steering Handle Diagram Mercury-Mercruiser 15
- Power
- 15
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 65G-200197 & Up
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8104491
New Genuine Part
|
8104491 |
— | ||
|
2
|
2
852834
Decal Shift
|
852834 |
— | ||
|
3
|
3
18848M
New Genuine Part
|
18848M |
— | ||
|
4
|
4
8527875
Screw
|
8527875 |
— | ||
| replacement | |||||
|
4
|
4
14232M
Screw
|
14232M |
— | ||
|
5
|
5
11558M New Genuine Part |
11558M |
US $52.22 |
||
|
6
|
6
11556M
New Genuine Part
|
11556M |
— | ||
|
7
|
7
954971 New Genuine Part |
954971 |
US $34.45 |
||
| replacement | |||||
|
7
|
7
8M0080456 GRIP |
8M0080456 |
US $34.45 |
||
|
8
|
8
81585M
New Genuine Part
|
81585M |
— | ||
|
9
|
9
811916M
Screw
|
811916M |
— | ||
|
10
|
10
852832
New Genuine Part
|
852832 |
— | ||
|
11
|
11
81907M
Rivet
|
81907M |
— | ||
|
12
|
12
82220M
Washer
|
82220M |
— | ||
|
13
|
13
82095M
Spring
|
82095M |
— | ||
|
14
|
14
81945M
Bushing
|
81945M |
— | ||
|
15
|
15
17363M
Bolt
|
17363M |
— | ||
|
16
|
16
82125M
Cotter Pin
|
82125M |
— | ||
|
17
|
17
8528146
Bushing
|
8528146 |
— | ||
|
18
|
18
852831
Wave Washer
|
852831 |
— | ||
|
19
|
19
8528035
Washer
|
8528035 |
— | ||
|
20
|
20
82053M Hair pin |
82053M |
US $2.21 |
||
|
21
|
21
81844M
Washer
|
81844M |
— | ||
|
22
|
22
852835
New Genuine Part
|
852835 |
— | ||
|
23
|
23
804395
Gear Shift Handle
|
804395 |
— | ||
|
24
|
24
85277611
Bolt
|
85277611 |
— | ||
|
25
|
25
8528311
Wave Washer
|
8528311 |
— | ||
|
26
|
26
8528147 Bushing |
8528147 |
US $3.10 |
||
|
27
|
27
11554M
New Genuine Part
|
11554M |
— | ||
|
28
|
28
84058M Bolt |
84058M |
US $6.85 |
||
|
29
|
29
8269851
New Genuine Part
|
8269851 |
— | ||
|
30
|
30
97757M
Switch Assembly Stop
|
97757M |
— | ||
|
31
|
31
97756M Lanyard stopper |
97756M |
US $36.86 |
||
|
32
|
32
852837
Cap
|
852837 |
— | ||
