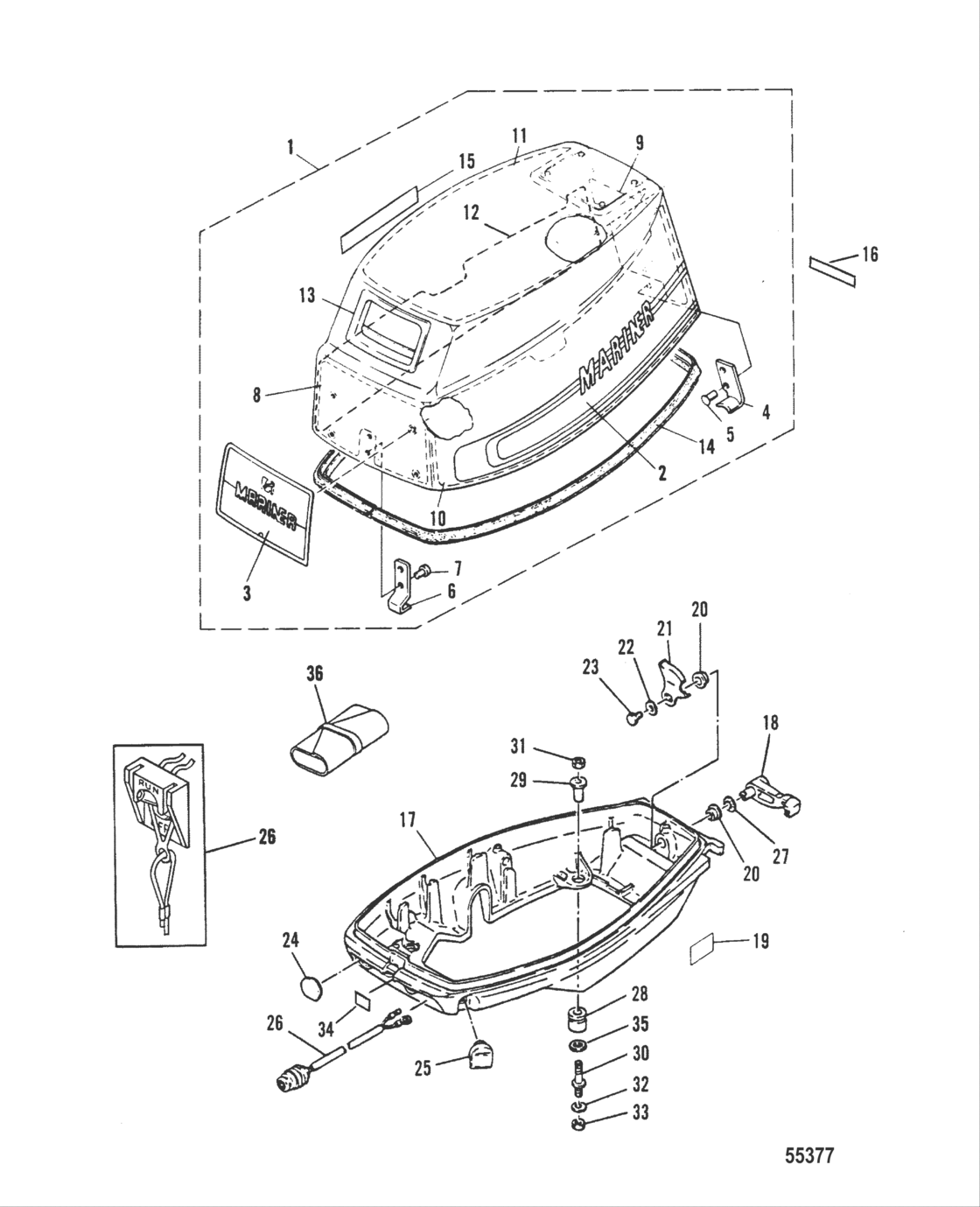

Cowling Diagram Mercury-Mercruiser 20
- Power
- 20
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- Canada
- Серийный номер
- 6A9-550694 & Up
- Серия
- Mariner
- Кол-в цилиндров
- 2
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
9290M
Top Cowl Assembly
|
9290M |
— | ||
|
2
|
2
95640M
Decal Side Set
|
95640M |
— | ||
|
3
|
3
95641M
Emblem Front
|
95641M |
— | ||
|
4
|
4
83212M
New Genuine Part
|
83212M |
— | ||
|
5
|
5
84903M
Rivet
|
84903M |
— | ||
|
6
|
6
83137M
N.l.a.
|
83137M |
— | ||
|
7
|
7
83140M
Rivet
|
83140M |
— | ||
|
8
|
8
83319M
New Genuine Part
|
83319M |
— | ||
| replacement | |||||
|
8
|
8
84323M
New Genuine Part
|
84323M |
— | ||
|
9
|
9
83320M
New Genuine Part
|
83320M |
— | ||
| replacement | |||||
|
9
|
9
84323M
New Genuine Part
|
84323M |
— | ||
|
10
|
10
83321M
New Genuine Part
|
83321M |
— | ||
| replacement | |||||
|
10
|
10
83125M
N.l.a.
|
83125M |
— | ||
|
11
|
11
83322M
New Genuine Part
|
83322M |
— | ||
| replacement | |||||
|
11
|
11
83232M
N.l.a.
|
83232M |
— | ||
|
12
|
12
95506M
New Genuine Part
|
95506M |
— | ||
| replacement | |||||
|
12
|
12
83125M
N.l.a.
|
83125M |
— | ||
|
13
|
13
80601M
New Genuine Part
|
80601M |
— | ||
|
14
|
14
84901M
New Genuine Part
|
84901M |
— | ||
|
15
|
15
81202M
Decal Shift Indicator
|
81202M |
— | ||
|
16
|
16
95547M
Decal 30E Model
|
95547M |
— | ||
|
17
|
17
9349M
Bottom Cowl
|
9349M |
— | ||
|
18
|
18
84913M
New Genuine Part
|
84913M |
— | ||
|
19
|
19
83054M
Graphic Side (Hp)
|
83054M |
— | ||
|
20
|
20
81949M Bushing |
81949M |
US $11.47 |
||
|
21
|
21
84914M
Clamp
|
84914M |
— | ||
|
22
|
22
81794M Washer |
81794M |
US $5.33 |
||
|
23
|
23
84315M Bolt |
84315M |
US $3.14 |
||
| replacement | |||||
|
23
|
23
84088M Screw |
84088M |
US $3.14 |
||
|
24
|
24
83988M
Grommet
|
83988M |
— | ||
|
25
|
25
84915M
Grommet
|
84915M |
— | ||
| replacement | |||||
|
25
|
25
826981M
Grommet
|
826981M |
— | ||
|
26
|
26
14227M
Lanyard Ignition Switch Assembly
|
14227M |
— | ||
| replacement | |||||
|
26
|
26
14222M
Switch Assembly Ignition - With Lanyard
|
14222M |
— | ||
|
26
|
26
84916M Switch Assembly Stop |
84916M |
US $42.78 |
||
| replacement | |||||
|
26
|
26
93102M Switch Assembly Stop (M And E) |
93102M |
US $42.78 |
||
|
27
|
27
81869M
Washer
|
81869M |
— | ||
|
28
|
28
84910M
Grommet
|
84910M |
— | ||
|
29
|
29
84911M
Collar
|
84911M |
— | ||
|
30
|
30
95505M
Stud
|
95505M |
— | ||
|
30
|
30
84912M
Stud
|
84912M |
— | ||
| replacement | |||||
|
30
|
30
95505M
Stud
|
95505M |
— | ||
|
31
|
31
82383M
Nut
|
82383M |
— | ||
|
32
|
32
82217M
Washer
|
82217M |
— | ||
|
33
|
33
82393M
Nut
|
82393M |
— | ||
| replacement | |||||
|
33
|
33
82383M
Nut
|
82383M |
— | ||
|
34
|
34
95570M
Decal
|
95570M |
— | ||
|
35
|
35
95507M
Washer
|
95507M |
— | ||
|
36
|
36
81669M Tool Kit |
81669M |
US $43.89 |
||
