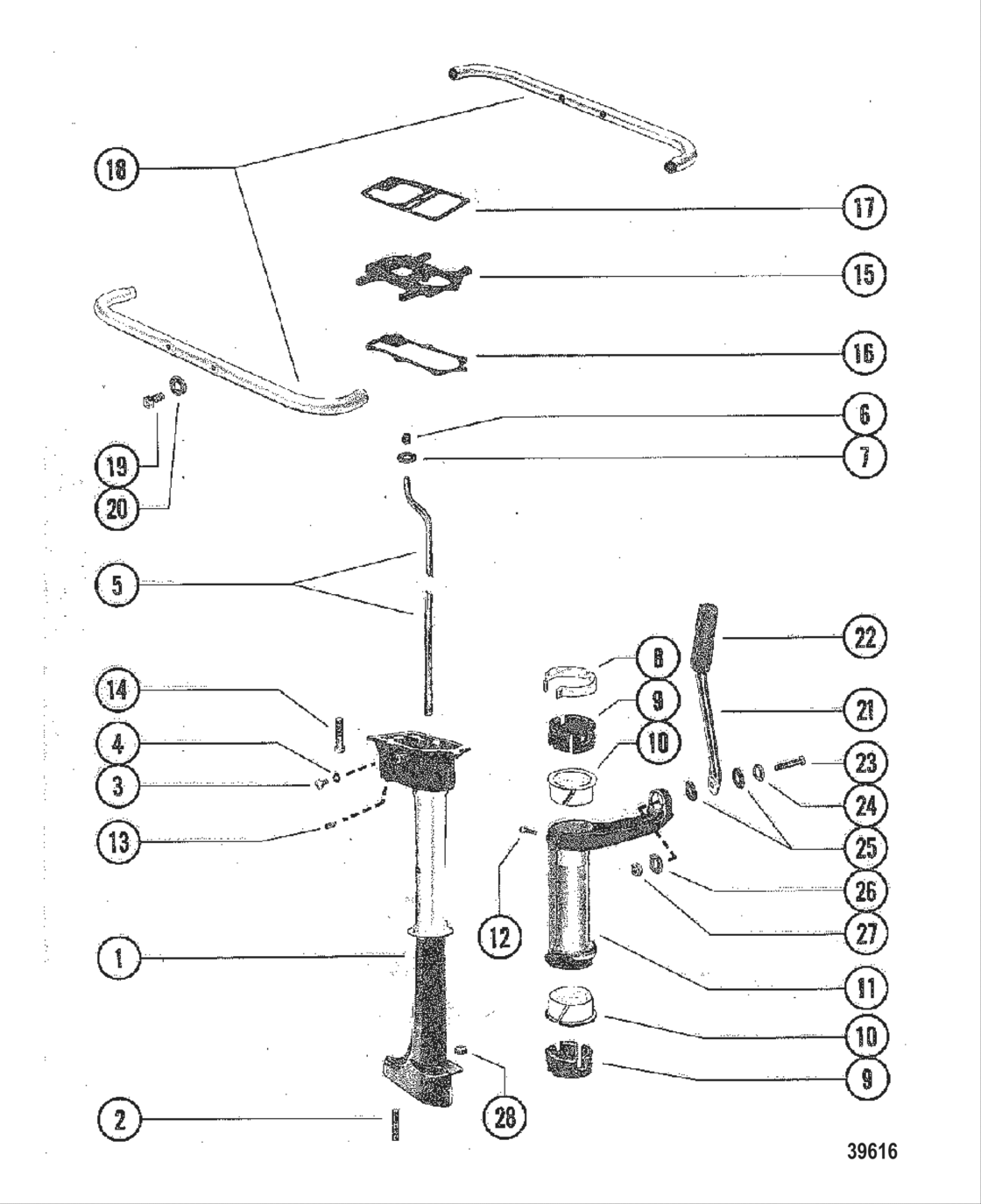

Driveshaft Housing Assembly Diagram Mercury-Mercruiser 3.6
- Power
- 3.6
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 9252831 & Up
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7601A3
Drive shaft housing assembly
[US-5571989] & Below |
7601A3 |
— | ||
| replacement | |||||
|
1
|
1
8526A1
Drive shaft housing assembly
[US-5571989] & Below |
8526A1 |
— | ||
|
1
|
1
7723A4
Drive shaft housing assembly
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
7723A4 |
— | ||
| replacement | |||||
|
1
|
1
8526A1
Drive shaft housing assembly
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
8526A1 |
— | ||
|
2
|
2
68927
Stud, drive shaft housing
(SHORT SHAFT) |
68927 |
— | ||
|
2
|
2
75321
Stud, drive shaft housing
(LONG SHAFT) |
75321 |
— | ||
|
3
|
3
79953 Screw, , driveshaft housing grease filler and vent hole |
79953 |
US $7.63 |
||
| replacement | |||||
|
3
|
3
79953Q04 Screw Kit Drain |
79953Q04 |
US $10.18 |
||
|
4
|
4
20260 Washer, driveshaft housing grease filler and vent hole screw |
20260 |
US $1.33 |
||
| replacement | |||||
|
4
|
4
191833 Seal |
191833 |
US $1.68 |
||
|
5
|
5
88996
Water tube
(SHORT SHAFT) |
88996 |
— | ||
|
5
|
5
88997
Water tube
(LONG SHAFT) |
88997 |
— | ||
|
6
|
6
36556 Seal |
36556 |
US $3.94 |
||
|
7
|
7
86214 Spacer, water tube seal |
86214 |
US $4.64 |
||
| replacement | |||||
|
7
|
7
13127 Bearing, nylon - outlet tube seal |
13127 |
US $4.64 |
||
|
8
|
8
79791
Clamp, co-pilot
|
79791 |
— | ||
|
9
|
9
88669
N.l.a.
|
88669 |
— | ||
|
10
|
10
74308
Bushing, rubber mount
|
74308 |
— | ||
|
11
|
11
68990A3
New Genuine Part
[US-5571989] & Below |
68990A3 |
— | ||
| replacement | |||||
|
11
|
11
98168A1
N.l.a.
[US-5571989] & Below |
98168A1 |
— | ||
|
11
|
11
89744A1
New Genuine Part
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
89744A1 |
— | ||
| replacement | |||||
|
11
|
11
98168A1
N.l.a.
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
98168A1 |
— | ||
|
12
|
12
75840 Screw, steering arm bracket |
75840 |
US $1.62 |
||
|
13
|
13
88184
Plug, drive shaft housing
[US-5571989] & Below |
88184 |
— | ||
|
14
|
14
69067 Screw |
69067 |
US $2.78 |
||
|
15
|
15
90253
New Genuine Part
|
90253 |
— | ||
| replacement | |||||
|
15
|
15
98319
New Genuine Part
|
98319 |
— | ||
|
16
|
16
88138
Gasket, plate to drive shaft housing
[US-5571989] & Below |
88138 |
— | ||
| replacement | |||||
|
16
|
16
41631
Gasket, plate
[US-5571989] & Below |
41631 |
— | ||
|
16
|
16
90254
Gasket, plate to drive shaft housing
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
90254 |
— | ||
| replacement | |||||
|
16
|
16
41631
Gasket, plate
[US-5571990/Australia-8067540/Belgium-9252831/Canada-7145388] & Up |
41631 |
— | ||
|
17
|
17
88139
Gasket, plate to powerhead
[US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
88139 |
— | ||
| replacement | |||||
|
17
|
17
41632
GASKET
[US-5802240/Australia-8067864/Belgium-9293010/Canada-7166027] & Below |
41632 |
— | ||
|
17
|
17
92875
Gasket, plate to powerhead
[US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
92875 |
— | ||
| replacement | |||||
|
17
|
17
41632
GASKET
[US-5802241/Australia-8067865/Belgium-9293011/Canada-7166028] & Up |
41632 |
— | ||
|
18
|
18
87664
N.l.a.
|
87664 |
— | ||
|
19
|
19
54615 Screw, , mounting bracket |
54615 |
US $0.93 |
||
|
20
|
20
21249 Washer, inlet cover screw |
21249 |
US $7.78 |
||
|
21
|
21
87667
New Genuine Part
|
87667 |
— | ||
| replacement | |||||
|
21
|
21
87667T
N.l.a.
|
87667T |
— | ||
|
22
|
22
87668
N.l.a.
|
87668 |
— | ||
|
23
|
23
63327 Screw, steering handle to bracket |
63327 |
US $1.62 |
||
| replacement | |||||
|
23
|
23
31984 Screw, fuel pump to block |
31984 |
US $1.62 |
||
|
24
|
24
53166 Lockwasher |
53166 |
US $1.62 |
||
|
25
|
25
56720 Washer, mounting bracekt screw |
56720 |
US $1.62 |
||
|
26
|
26
26825 Washer, , switch actuating arm stud |
26825 |
US $1.28 |
||
|
27
|
27
68292 Nut |
68292 |
US $3.36 |
||
|
28
|
28
35814 Nut, stainless steel, switch actuating arm stud |
35814 |
US $4.40 |
||
| replacement | |||||
|
28
|
28
82670911 Nut, stainless steel |
82670911 |
US $4.40 |
||
|
NI
|
NI
75311
New Genuine Part
(LONG SHAFT) |
75311 |
— | ||
| replacement | |||||
|
NI
|
NI
75311T
N.l.a.
(LONG SHAFT) |
75311T |
— | ||
|
NI
|
NI
76265
New Genuine Part
(LONG SHAFT) |
76265 |
— | ||
| replacement | |||||
|
NI
|
NI
94909
N.l.a.
(LONG SHAFT) |
94909 |
— | ||
|
NI
|
NI
88139A79
Gasket Set
|
88139A79 |
— | ||
| replacement | |||||
|
NI
|
NI
98540A83
Gasket set
|
98540A83 |
— | ||
