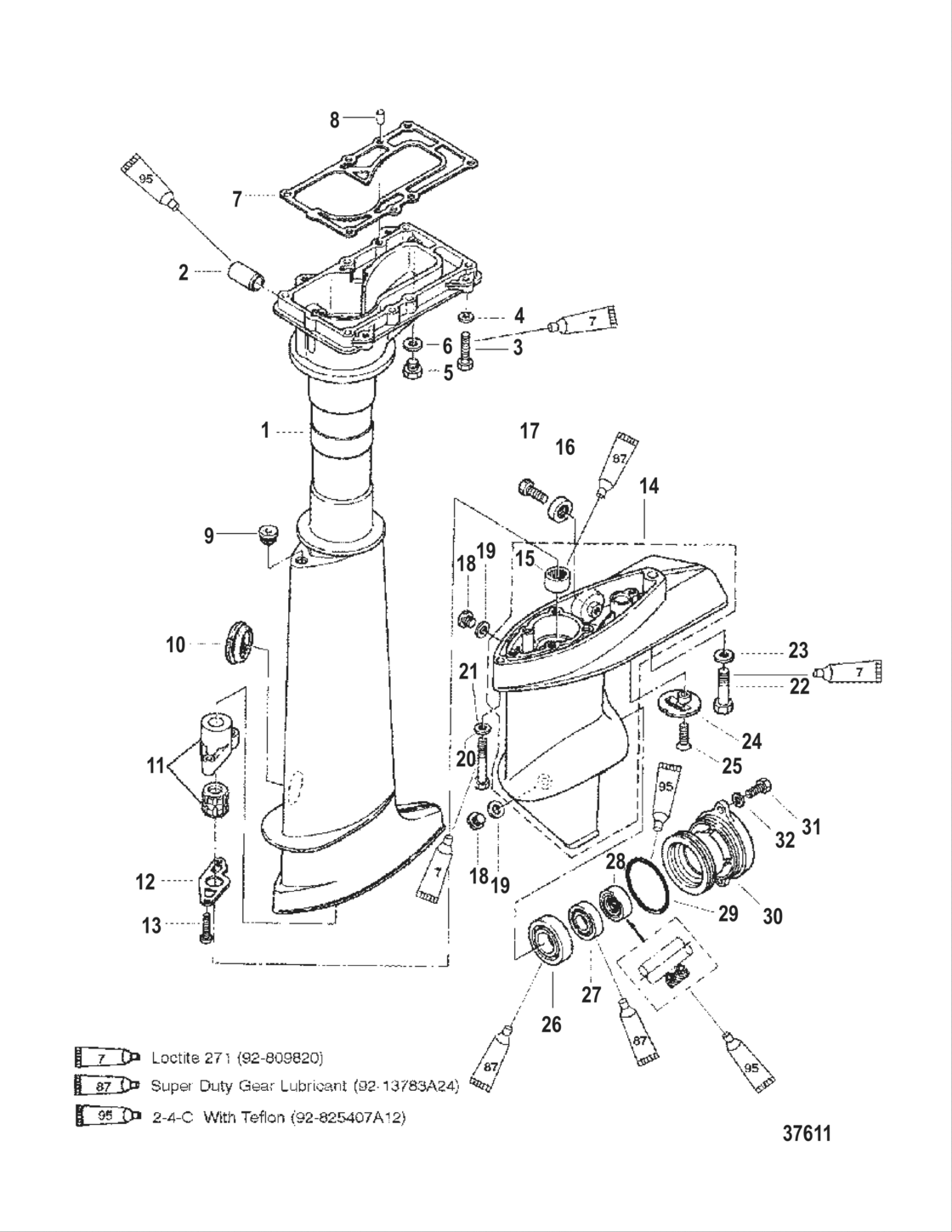

Driveshaft Housing/gear Housing Diagram Mercury-Mercruiser 5
- Power
- 5
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 0A809601 THRU 0A855096
- Серия
- International
- Кол-в цилиндров
- 1
- Подача топлива
- Карбюратор
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
812942 Housing, driveshaft(SHORT) [USA-A838181/Belgium-9542671] & Up |
812942 |
US $382.78 |
||
| replacement | |||||
|
1
|
1
825134A1 Housing assembly, driveshaft(SHORT) [USA-A838181/Belgium-9542671] & Up |
825134A1 |
US $382.78 |
||
|
1
|
1
812943 Housing, driveshaft(LONG) [USA-A838181/Belgium-9542671] & Up |
812943 |
US $389.01 |
||
| replacement | |||||
|
1
|
1
8M0089106 HSG D/S LONG(LONG) [USA-A838181/Belgium-9542671] & Up |
8M0089106 |
US $389.01 |
||
|
1
|
1
9618 Housing, driveshaft(SHORT) [USA-A838180/Belgium-9542670] & Below |
9618 |
US $382.78 |
||
| replacement | |||||
|
1
|
1
825134A1 Housing assembly, driveshaft(SHORT) [USA-A838180/Belgium-9542670] & Below |
825134A1 |
US $382.78 |
||
|
1
|
1
9619 Housing, driveshaft(LONG) [USA-A838180/Belgium-9542670] & Below |
9619 |
US $389.01 |
||
| replacement | |||||
|
1
|
1
8M0089106 HSG D/S LONG(LONG) [USA-A838180/Belgium-9542670] & Below |
8M0089106 |
US $389.01 |
||
|
2
|
2
16114 Bushing |
16114 |
US $20.78 |
||
|
3
|
3
16830 Bolt |
16830 |
US $6.40 |
||
| replacement | |||||
|
3
|
3
8M0124428 Bolt |
8M0124428 |
US $4.40 |
||
|
4
|
4
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
5
|
5
16116 Plug, water |
16116 |
US $4.06 |
||
| replacement | |||||
|
5
|
5
879194296 Plug Water |
879194296 |
US $4.06 |
||
|
6
|
6
95220
Gasket, oil plug
|
95220 |
— | ||
|
7
|
7
16115 Gasket |
16115 |
US $17.28 |
||
| replacement | |||||
|
7
|
7
812947001 GASKET |
812947001 |
US $17.28 |
||
|
8
|
8
16119 Pin, dowel |
16119 |
US $6.72 |
||
|
9
|
9
16118 Grommet |
16118 |
US $4.18 |
||
| replacement | |||||
|
9
|
9
161181 Grommet |
161181 |
US $5.22 |
||
|
10
|
10
16117 Grommet |
16117 |
US $9.62 |
||
|
11
|
11
16120 Bushing, driveshaft(LONG) |
16120 |
US $50 |
||
| replacement | |||||
|
11
|
11
827663A1 New Genuine Part(LONG) |
827663A1 |
US $50 |
||
|
12
|
12
16121 New Genuine Part |
16121 |
US $9.04 |
||
|
13
|
13
16122 Screw(SHORT) |
16122 |
US $3.25 |
||
| replacement | |||||
|
13
|
13
823042067 Screw(SHORT) |
823042067 |
US $3.25 |
||
|
13
|
13
16123 Screw(LONG) |
16123 |
US $3.01 |
||
|
14
|
14
9620 Gear housing assembly |
9620 |
US $285.01 |
||
| replacement | |||||
|
14
|
14
825132T30 Gear Housing Assembly Basic |
825132T30 |
US $285.01 |
||
|
14
|
14
9621 Gear housing assembly(SAIL POWER) |
9621 |
US $202.53 |
||
| replacement | |||||
|
14
|
14
9621T6 Gear Housing Assembly(SAIL POWER) |
9621T6 |
US $202.53 |
||
|
15
|
15
16124 Bushing |
16124 |
US $52.11 |
||
|
16
|
16
16127 New Genuine Part |
16127 |
US $7.55 |
||
| replacement | |||||
|
16
|
16
823912 New Genuine Part |
823912 |
US $10.18 |
||
|
17
|
17
16832 Bolt |
16832 |
US $3.82 |
||
|
18
|
18
95368 Plug, oil |
95368 |
US $9.28 |
||
| replacement | |||||
|
18
|
18
953683 Oil plug |
953683 |
US $9.28 |
||
|
19
|
19
95220
Gasket, oil plug
|
95220 |
— | ||
|
20
|
20
16125 Bolt, gear housing |
16125 |
US $7.31 |
||
|
21
|
21
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
|
22
|
22
16126 Bolt |
16126 |
US $8.46 |
||
|
23
|
23
16192 Washer |
16192 |
US $3.14 |
||
|
24
|
24
16133 STRAINER |
16133 |
US $21.10 |
||
|
25
|
25
16134 Screw |
16134 |
US $3.36 |
||
|
26
|
26
16128 Bearing, ball |
16128 |
US $30.34 |
||
|
27
|
27
16132 Bearing, ball |
16132 |
US $37.81 |
||
|
28
|
28
16130 Seal, oil |
16130 |
US $27.46 |
||
|
29
|
29
16131 O-ring |
16131 |
US $11.22 |
||
|
30
|
30
16129 New Genuine Part |
16129 |
US $209.01 |
||
| replacement | |||||
|
30
|
30
825118T Housing-propshaft |
825118T |
US $209.01 |
||
|
31
|
31
16824 Bolt, bottom cowl |
16824 |
US $3.82 |
||
| replacement | |||||
|
31
|
31
16832 Bolt |
16832 |
US $3.82 |
||
|
32
|
32
16826 Washer, stainless steel |
16826 |
US $3.40 |
||
