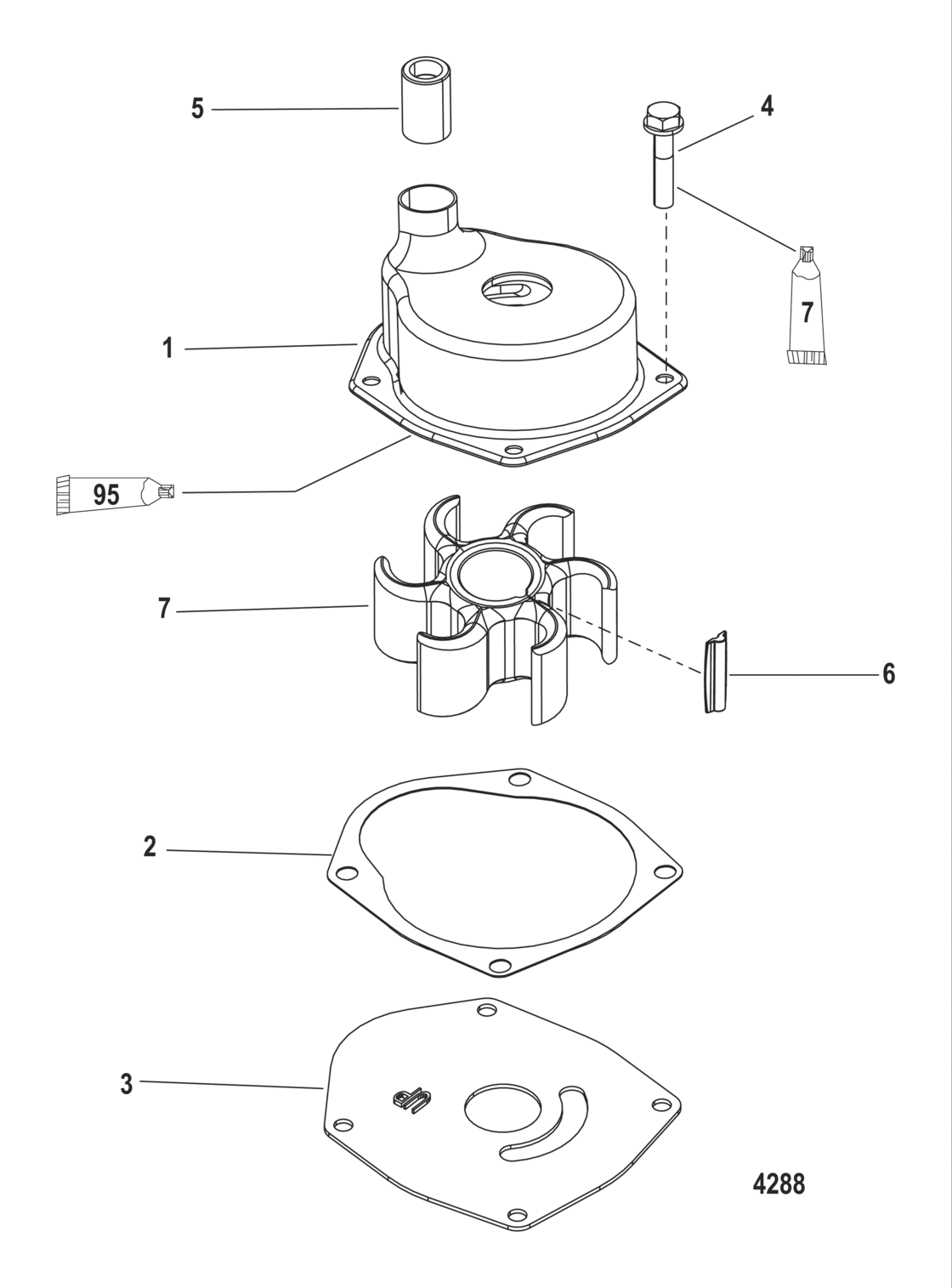

Jet Pump Components Diagram Mercury-Mercruiser 80
- Power
- 80
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Country
- USA
- Серийный номер
- 1B000001 & Up
- Серия
- JET
- Кол-в цилиндров
- 4
- Подача топлива
- Карбюратор
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
817275A2 Repair kit-w/p(Lubricate/Sealant Application Points) |
817275A2 |
from US $131.85 |
||
|
2
|
2
8172771 Gasket, water pump assembly |
8172771 |
US $6.24 |
||
|
3
|
3
8172761 Faceplate-w/p |
8172761 |
from US $16.54 |
||
| replacement | |||||
|
3
|
3
8M0204709 Faceplate-w/p |
8M0204709 |
US $16.54 |
||
|
4
|
4
82684430 Screw |
82684430 |
US $3.38 |
||
|
5
|
5
430232 SEAL |
430232 |
from US $14.60 |
||
|
6
|
6
43037 Key |
43037 |
US $4.06 |
||
| replacement | |||||
|
6
|
6
8M0032833 Key |
8M0032833 |
US $4.47 |
||
|
7
|
7
43026T2 Impeller |
43026T2 |
US $50.47 |
||
|
NI
|
NI
43035A4 Seal kit |
43035A4 |
US $120.55 |
||
|
NI
|
NI
43024A7
Repair Kit Water Pump
|
43024A7 |
— | ||
| replacement | |||||
|
NI
|
NI
8M0113799 Water Pump Repair Kit |
8M0113799 |
US $314.70 |
||
|
NI
|
NI
13461A99 Gasket Set |
13461A99 |
US $288.22 |
||
