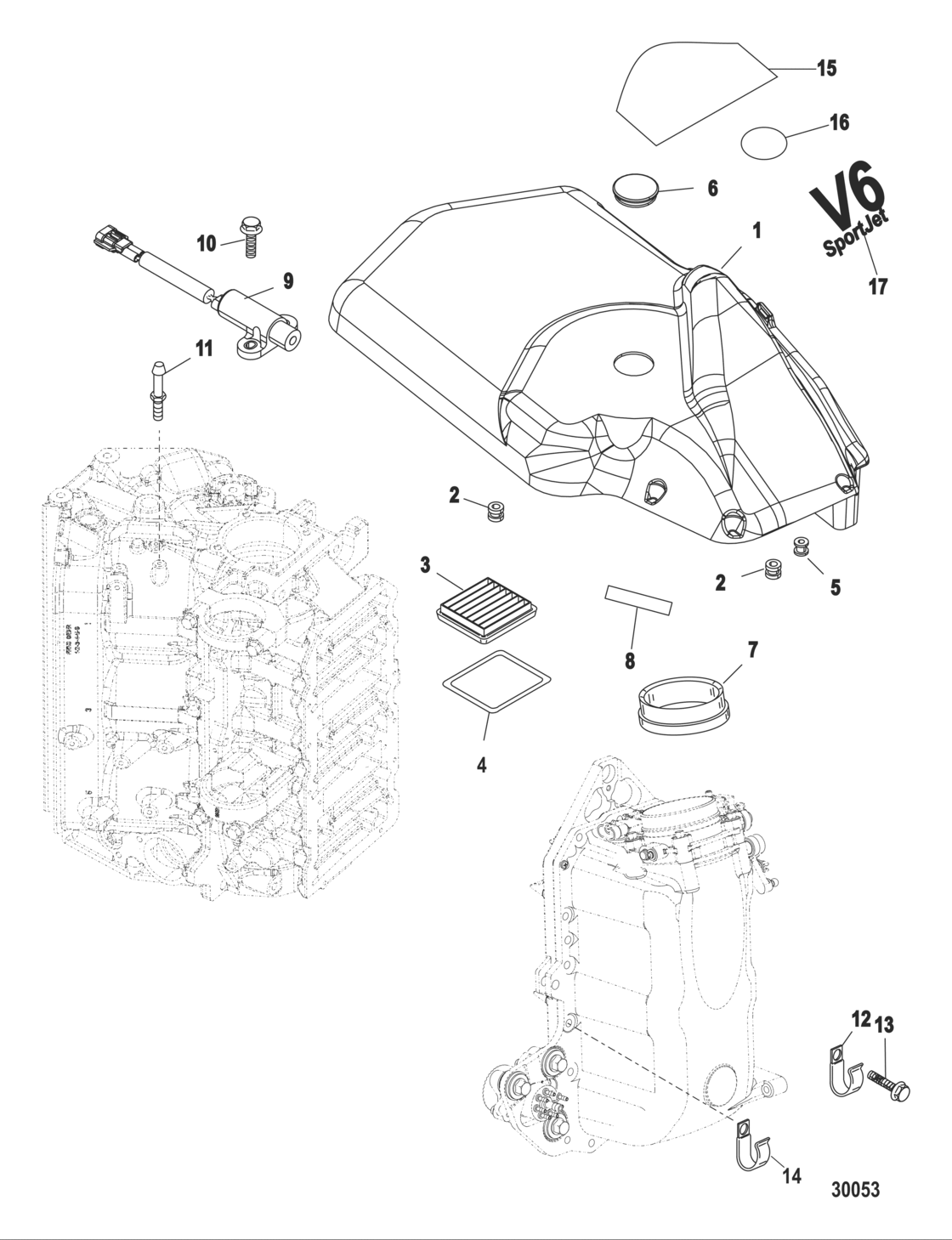

Air Handler/flywheel Cover Diagram Mercury-Mercruiser D175 OptiMax
- Engine Capacity
- 2.5
- Power
- 175
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1B516339 & Up
- Серия
- Pro XS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
827325T11 New Genuine Part |
827325T11 |
US $388.11 |
||
|
2
|
2
821555001 Grommet |
821555001 |
US $4.99 |
||
|
3
|
3
853333T Filter, air |
853333T |
US $19.52 |
||
|
4
|
4
853352 New Genuine Part |
853352 |
US $14.85 |
||
|
5
|
5
857101 Grommet |
857101 |
US $1.50 |
||
|
6
|
6
89219001
Plug
|
89219001 |
— | ||
|
7
|
7
855613 Grommet |
855613 |
US $24.93 |
||
|
8
|
8
881865 Decal, caution-start in gear |
881865 |
US $10.21 |
||
|
9
|
9
8283582 Sensor, Crank Position |
8283582 |
US $117.22 |
||
| replacement | |||||
|
9
|
9
8M0082988 Sensor Crankshaft Position |
8M0082988 |
US $174.18 |
||
|
10
|
10
40011107 Screw, housing to adaptor plate |
40011107 |
US $1.62 |
||
|
11
|
11
8215832 New Genuine Part |
8215832 |
US $17.28 |
||
|
11
|
11
8M0042972 Pin Special (1.75 Inches) |
8M0042972 |
US $14.90 |
||
|
12
|
12
883080 J clip |
883080 |
US $4.86 |
||
|
13
|
13
817504 Screw, stainless steel |
817504 |
US $4.18 |
||
|
14
|
14
55098 J clip |
55098 |
US $4.40 |
||
|
NI
|
NI
879809A08 Long block assembly |
879809A08 |
US $11,817.14 |
||
