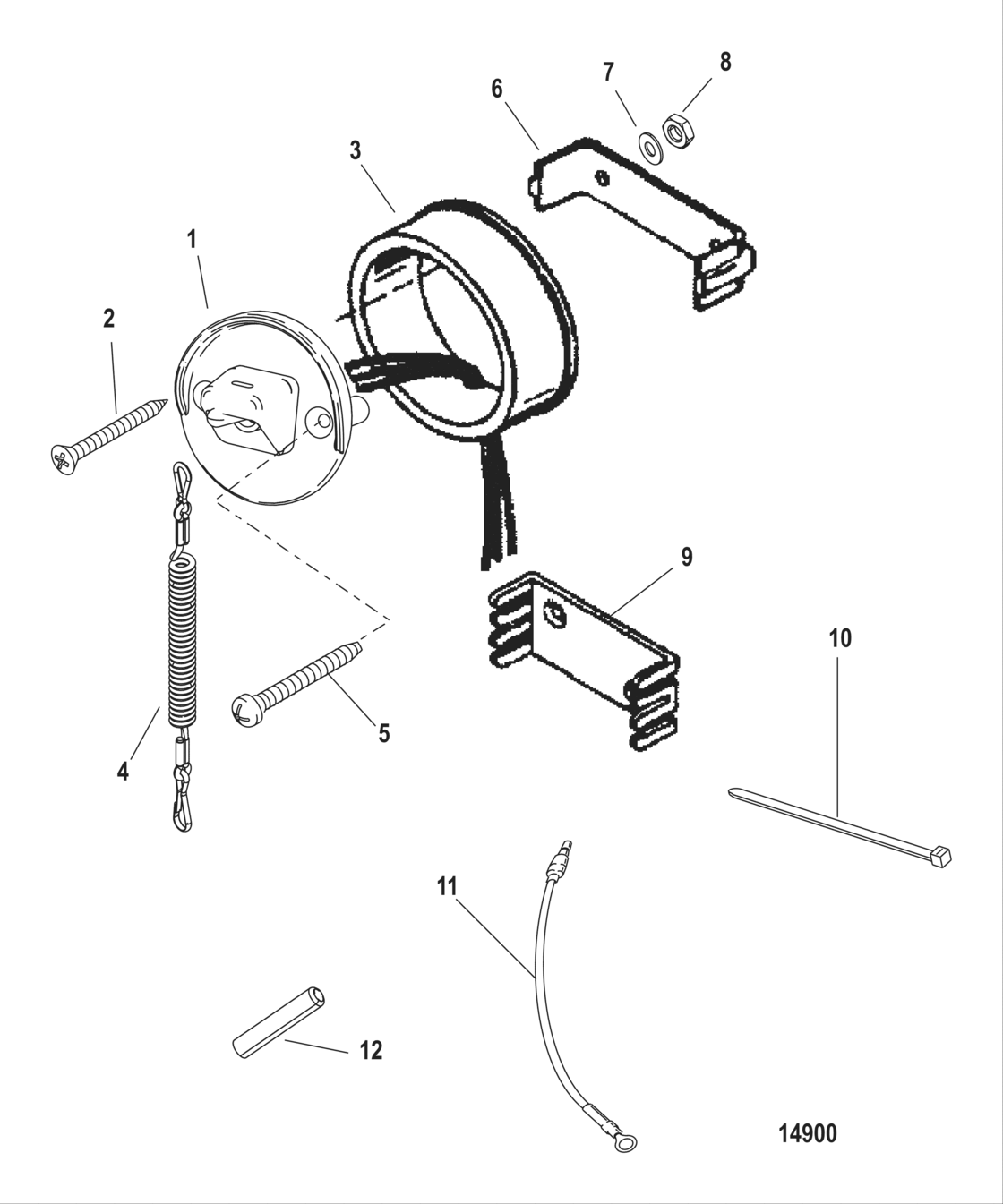

Switch/lanyard Assembly Diagram Mercury-Mercruiser D175 OptiMax
- Engine Capacity
- 2.5
- Power
- 175
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1B516339 & Up
- Серия
- Pro XS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19674A1
Switch Assembly Lanyard
|
19674A1 |
— | ||
|
2
|
2
18303 Screw, stainless steel |
18303 |
US $4.29 |
||
|
3
|
3
813679 New Genuine Part |
813679 |
US $15.10 |
||
|
4
|
4
15920A54
New Genuine Part
|
15920A54 |
— | ||
| replacement | |||||
|
4
|
4
15920Q54
New Genuine Part
|
15920Q54 |
— | ||
|
5
|
5
32866 Screw, inlet cover to boat |
32866 |
US $2.78 |
||
|
6
|
6
18321 New Genuine Part |
18321 |
US $6.85 |
||
|
7
|
7
24676 Washer, , control panel stud |
24676 |
US $1.28 |
||
|
8
|
8
68219 Nut, stainless steel |
68219 |
US $3.40 |
||
|
9
|
9
79146 New Genuine Part |
79146 |
US $4.64 |
||
|
10
|
10
816311 Tie strap, |
816311 |
US $0.51 |
||
| replacement | |||||
|
10
|
10
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
11
|
11
11149A3 Cable Assembly |
11149A3 |
US $3.94 |
||
|
12
|
12
623594 Insulator |
623594 |
US $2.32 |
||
|
NI
|
NI
19674Q2
Switch/lanyard kit
Quicksilver Branded |
19674Q2 |
— | ||
|
NI
|
NI
19674A2
Switch/lanyard Kit
|
19674A2 |
— | ||
| replacement | |||||
|
NI
|
NI
19674Q2
Switch/lanyard kit
|
19674Q2 |
— | ||
|
NS
|
NS
257113 Neoprene, |
257113 |
US $97.76 |
||
