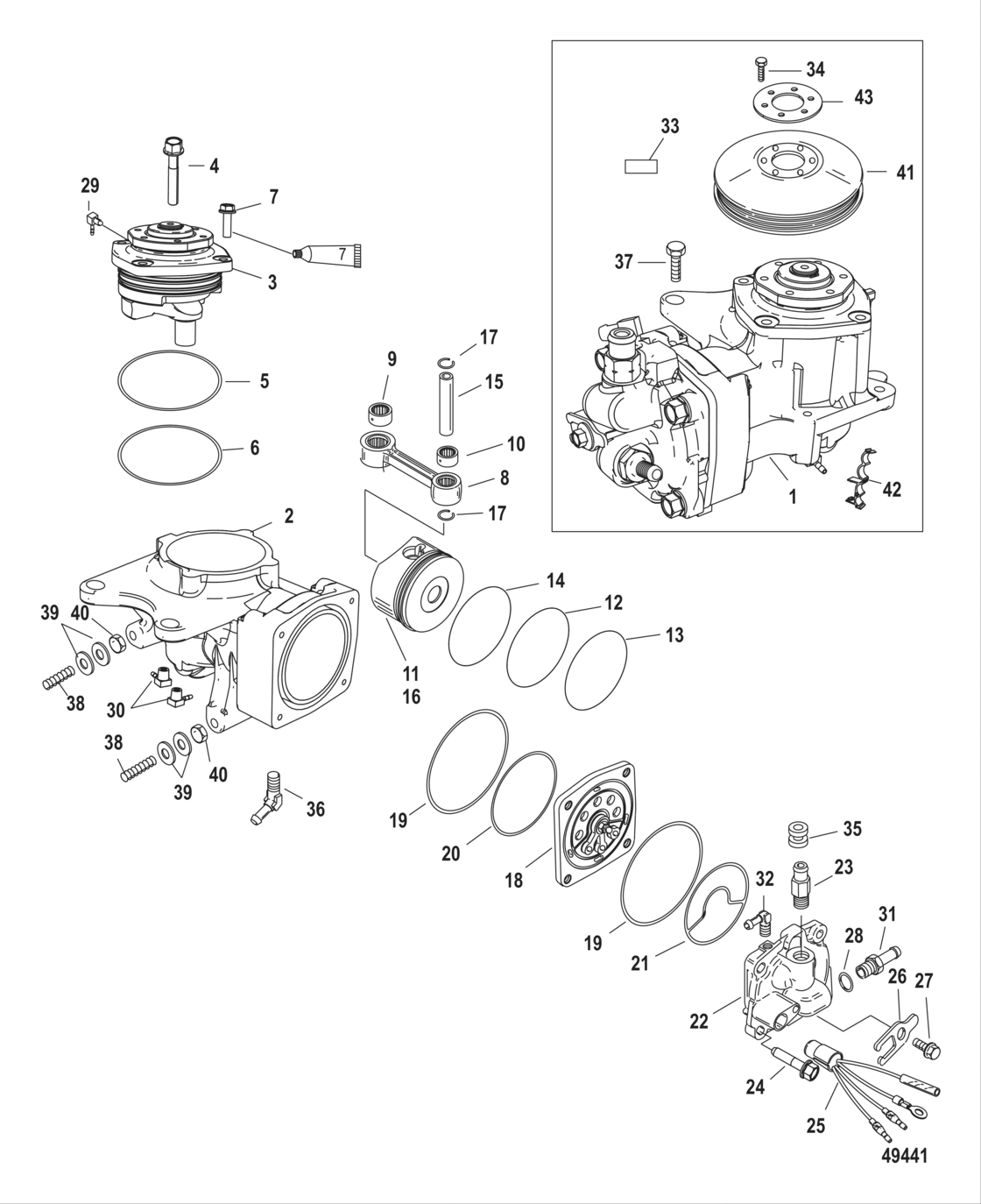

Air Compressor Components Sn 1B884881 And Up Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M0060053 Compressor Assembly AirBlack |
8M0060053 |
US $2,440.35 |
||
|
2
|
2
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
3
|
3
8M0060381 End Cap Assembly |
8M0060381 |
US $519.30 |
||
|
4
|
4
8M0045380 Screw (M8 X 50) |
8M0045380 |
US $5.79 |
||
|
5
|
5
67206001 O-ring |
67206001 |
US $4.06 |
||
|
6
|
6
67206001 O-ring |
67206001 |
US $4.06 |
||
|
7
|
7
85593920 Screw |
85593920 |
US $8 |
||
|
8
|
8
833146T06 Connecting Rod Assembly |
833146T06 |
US $120.45 |
||
|
9
|
9
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
10
|
10
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
11
|
11
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
12
|
12
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
13
|
13
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
16
|
16
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
17
|
17
8348101 Ring, lock |
8348101 |
US $1.86 |
||
|
18
|
18
835088A10 New Genuine Part |
835088A10 |
US $306.22 |
||
|
19
|
19
67207 O-ring |
67207 |
US $3.82 |
||
|
20
|
20
832804 O-ring |
832804 |
US $4.40 |
||
|
21
|
21
828225 Seal |
828225 |
US $32.22 |
||
|
22
|
22
8M0073890 Head Kit Compressor |
8M0073890 |
US $120.34 |
||
|
23
|
23
8307535 Fitting, straight |
8307535 |
US $22.67 |
||
|
23
|
23
8M0042974 Fitting (1.87 Inches) |
8M0042974 |
US $16.90 |
||
|
24
|
24
82127335 Screw |
82127335 |
US $2.43 |
||
|
25
|
25
13536A14 New Genuine Part |
13536A14 |
US $61.22 |
||
|
26
|
26
137151 New Genuine Part |
137151 |
US $3.47 |
||
|
27
|
27
81893414 Screw |
81893414 |
US $3.01 |
||
|
28
|
28
831985 O-ring |
831985 |
US $4.64 |
||
|
29
|
29
151331 Fitting |
151331 |
US $10.67 |
||
|
30
|
30
428641 Fitting, check valve |
428641 |
US $22.50 |
||
|
31
|
31
856744 Fitting |
856744 |
US $44.22 |
||
|
32
|
32
14868 Fitting, fuel pump |
14868 |
US $19.47 |
||
|
33
|
33
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
34
|
34
85593920 Screw |
85593920 |
US $8 |
||
|
35
|
35
855349002 Grommet |
855349002 |
US $8 |
||
|
36
|
36
851975 Fitting, elbow - 45 degree - brass |
851975 |
US $28.56 |
||
|
37
|
37
4010825 Screw, hex flange - stainless steel |
4010825 |
US $3.36 |
||
|
38
|
38
858762001 Stud (.312-18/.312-24 X 4.190) |
858762001 |
US $13.68 |
||
|
39
|
39
854640 Washer, special |
854640 |
US $2.78 |
||
|
40
|
40
46356 Nut |
46356 |
US $3.94 |
||
|
41
|
41
8M0051194 Pulley Compressor |
8M0051194 |
US $338.56 |
||
| replacement | |||||
|
41
|
41
8M0138680 PULLEY |
8M0138680 |
US $338.56 |
||
|
42
|
42
8M0024533 Clamp |
8M0024533 |
US $5.79 |
||
|
43
|
43
884594 Washer |
884594 |
US $6.72 |
||
|
NI
|
NI
832804A03 O-Ring Kit |
832804A03 |
US $29.57 |
||
