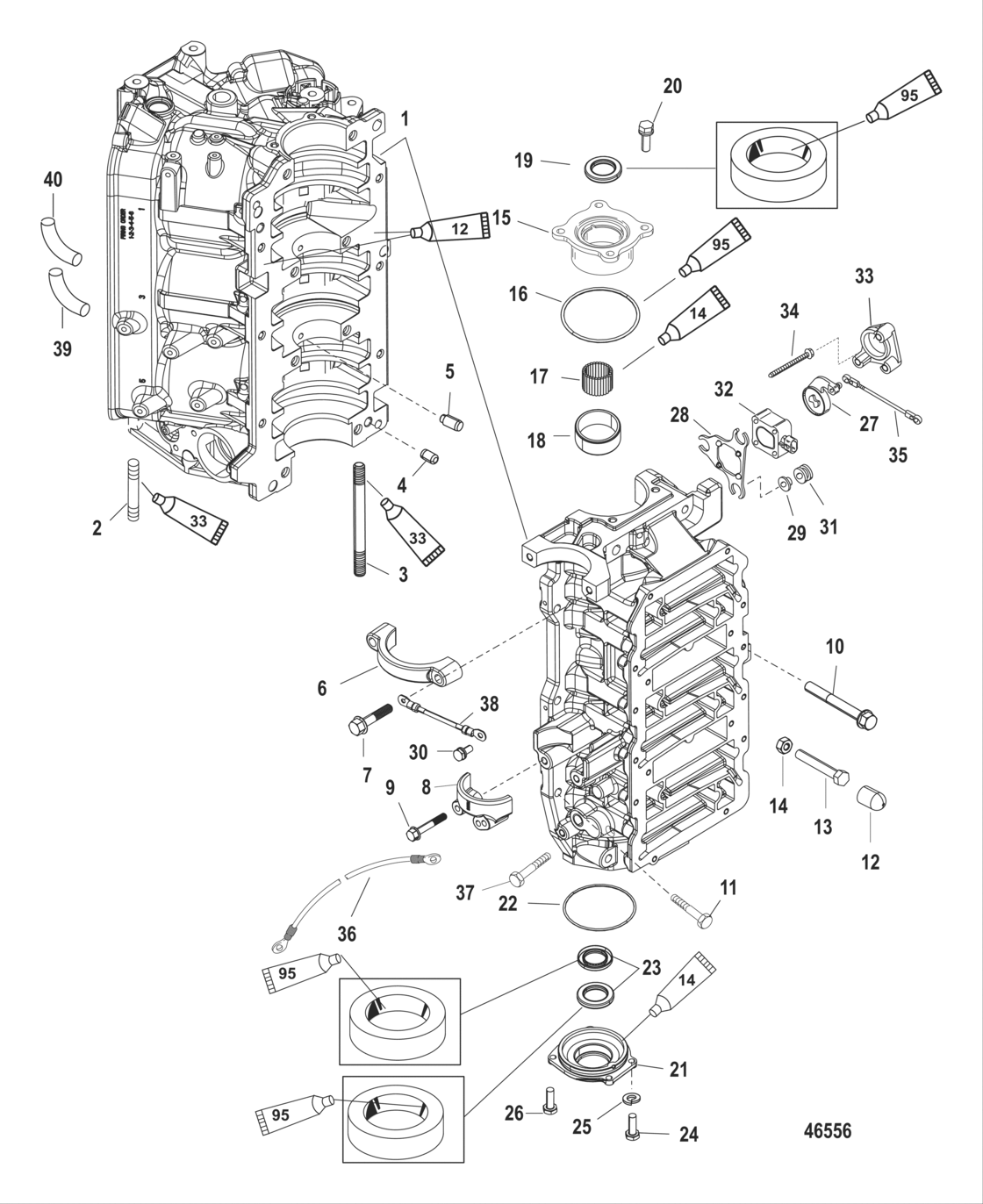

Cylinder Block And End Caps Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M8027364 Cylinder Block Assembly |
8M8027364 |
US $6,346.38 |
||
|
2
|
2
8M0034455 Stud 1.750 |
8M0034455 |
US $5.68 |
||
|
3
|
3
670654 Stud |
670654 |
US $12.40 |
||
|
3
|
3
8M0034454 Stud (.375-16/.375-24 X 6.87) |
8M0034454 |
US $14.03 |
||
|
4
|
4
43044 Pin, dowel - without hole |
43044 |
US $1.92 |
||
|
5
|
5
8M0036405 Pin (Bearing Race) |
8M0036405 |
US $3.14 |
||
|
6
|
6
8M0041759 Bracket |
8M0041759 |
US $46.90 |
||
| replacement | |||||
|
6
|
6
8M0111325 COVER |
8M0111325 |
US $46.90 |
||
|
7
|
7
828213 Screw, hex flange |
828213 |
US $1.62 |
||
|
8
|
8
76867 N.l.a. |
76867 |
US $27.66 |
||
|
9
|
9
828214 Screw, hex flange |
828214 |
US $1.62 |
||
|
10
|
10
66717 Screw, , crankcase to cylinder block |
66717 |
US $4.40 |
||
|
11
|
11
74824 Screw, , alternator brace |
74824 |
US $1.62 |
||
|
12
|
12
26852 New Genuine Part |
26852 |
US $3.47 |
||
|
13
|
13
856832 Screw |
856832 |
US $2.90 |
||
|
14
|
14
64015 Nut, alternator terminal |
64015 |
US $2.43 |
||
|
15
|
15
832760T1 End Cap Assembly Upper |
832760T1 |
US $337.33 |
||
|
16
|
16
54029 "o" ring, gear housing |
54029 |
US $3.47 |
||
|
17
|
17
16756A4 Bearing Kit Top Main |
16756A4 |
US $74.11 |
||
|
18
|
18
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
19
|
19
41953 Oil seal |
41953 |
US $22.02 |
||
|
20
|
20
881190 Screw |
881190 |
US $1.28 |
||
|
21
|
21
8M0050233 End Cap Assembly |
8M0050233 |
US $169.95 |
||
|
22
|
22
62700 "o" ring, oil filter adaptor |
62700 |
US $3.47 |
||
|
23
|
23
41953 Oil seal |
41953 |
US $22.02 |
||
|
24
|
24
28636 Scerw, cover |
28636 |
US $2.09 |
||
|
25
|
25
26992 Lockwasher, stainless steel, control valve screw |
26992 |
US $0.93 |
||
|
26
|
26
8M0046139 Screw Flat Head (.250-20 X 0.75) |
8M0046139 |
US $1.86 |
||
|
27
|
27
8519371 New Genuine Part |
8519371 |
US $21.89 |
||
|
28
|
28
8538821 New Genuine Part |
8538821 |
US $27.10 |
||
|
29
|
29
856954 Bushing |
856954 |
US $6.03 |
||
|
30
|
30
69035 Screw and lockwasher, stainless steel |
69035 |
US $1.62 |
||
|
31
|
31
834985 Grommet |
834985 |
US $4.08 |
||
|
32
|
32
83295211 Tpi |
83295211 |
US $164.67 |
||
| replacement | |||||
|
32
|
32
8M6005165 TPI |
8M6005165 |
US $164.67 |
||
|
33
|
33
8582261 New Genuine Part |
8582261 |
US $19.36 |
||
|
34
|
34
8508281 Screw |
8508281 |
US $1.97 |
||
|
35
|
35
8M0008117 New Genuine Part |
8M0008117 |
US $21.22 |
||
| replacement | |||||
|
35
|
35
8M0084738 LINK ASSY |
8M0084738 |
US $21.22 |
||
|
36
|
36
88439A26 Cable Assembly Battery - Negative |
88439A26 |
US $107.90 |
||
|
36
|
36
88439A46 Cable Assembly Battery - Positive |
88439A46 |
US $67.33 |
||
|
37
|
37
81893414 Screw |
81893414 |
US $3.01 |
||
|
38
|
38
93388A1 Cable, starter to sound attenuator |
93388A1 |
US $8.93 |
||
|
39
|
39
8M0047428 Hose (.25 Inch Id, 57.00 Inches Bulk) (Cut To 6 Inches) |
8M0047428 |
US $54.61 |
||
| replacement | |||||
|
39
|
39
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
40
|
40
8M0047428 Hose (.25 Inch Id, 57.00 Inches Bulk) (Cut To 6 Inches) |
8M0047428 |
US $54.61 |
||
| replacement | |||||
|
40
|
40
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
