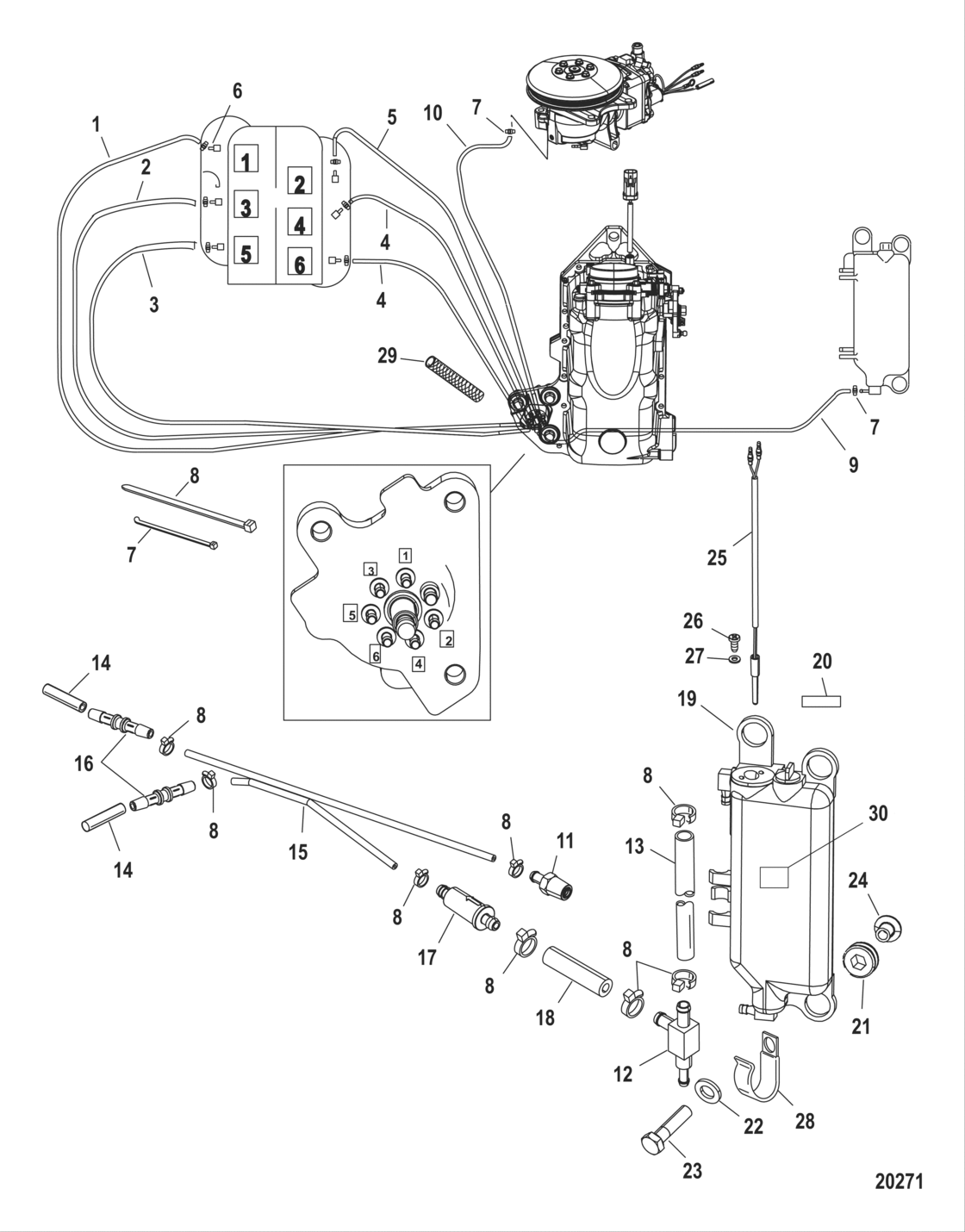

Oil Injection Components Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85606065 Tubing, |
85606065 |
US $39.78 |
||
| replacement | |||||
|
1
|
1
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
2
|
2
85606065 Tubing, |
85606065 |
US $39.78 |
||
| replacement | |||||
|
2
|
2
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
3
|
3
85606065 Tubing, |
85606065 |
US $39.78 |
||
| replacement | |||||
|
3
|
3
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
4
|
4
85606065 Tubing, |
85606065 |
US $39.78 |
||
| replacement | |||||
|
4
|
4
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
5
|
5
85606065 Tubing, |
85606065 |
US $39.78 |
||
| replacement | |||||
|
5
|
5
8M0054152 Tubing (39.00 Inches Bulk) (Cut To 20.50 Inches) |
8M0054152 |
US $39.78 |
||
|
6
|
6
858805 Check valve |
858805 |
US $26.78 |
||
|
7
|
7
69355 New Genuine Part |
69355 |
US $0.27 |
||
|
8
|
8
816311T Tie Strap (8.00 Inches) |
816311T |
US $0.51 |
||
|
8
|
8
56762 New Genuine Part |
56762 |
US $0.35 |
||
|
9
|
9
892830053 Hose |
892830053 |
US $31.66 |
||
|
10
|
10
85583466 Hose |
85583466 |
US $56.34 |
||
| replacement | |||||
|
10
|
10
8M0054213 Hose Cut To 34 Inches - To Oil Pump Connection Illustrated As #3 |
8M0054213 |
US $56.34 |
||
|
11
|
11
8781051 Check valve |
8781051 |
US $26.32 |
||
|
12
|
12
424254 Fitting |
424254 |
US $41.39 |
||
|
13
|
13
8M0047428 Hose (.25 Inch Id, 57.00 Inches Bulk) (Cut To 6 Inches) |
8M0047428 |
US $54.61 |
||
| replacement | |||||
|
13
|
13
8M0108355 Hose (57 Inches Bulk) To Vapor Separator Cover - Cut To 18 Inches |
8M0108355 |
US $54.61 |
||
|
14
|
14
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
15
|
15
875289 Hose |
875289 |
US $83.10 |
||
|
16
|
16
858955 Connector |
858955 |
US $3.14 |
||
|
17
|
17
875284T01 Filter Oil - In Line |
875284T01 |
US $5.92 |
||
|
18
|
18
875283 Hose |
875283 |
US $6.03 |
||
|
19
|
19
833069T9 Reservoir asy-oil |
833069T9 |
US $187.01 |
||
| replacement | |||||
|
19
|
19
8M0063190 OIL TANK ASSY |
8M0063190 |
US $187.01 |
||
|
20
|
20
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
|
21
|
21
855362001 Grommet |
855362001 |
US $2.78 |
||
|
22
|
22
49436 Washer |
49436 |
US $0.69 |
||
|
23
|
23
60411 Screw |
60411 |
US $1.28 |
||
|
24
|
24
855364 Bushing |
855364 |
US $5.22 |
||
|
25
|
25
856156T02 Switch Assembly |
856156T02 |
US $32.83 |
||
|
26
|
26
58376 Screw |
58376 |
US $1.20 |
||
|
27
|
27
72761 Washer, stainless steel |
72761 |
US $1.55 |
||
|
28
|
28
814634 Clamp |
814634 |
US $4.40 |
||
|
29
|
29
NLA
No Longer Available Old Design
|
NLA |
— | ||
|
30
|
30
NSS
Not Sold Separate O-Ring
|
NSS |
— | ||
