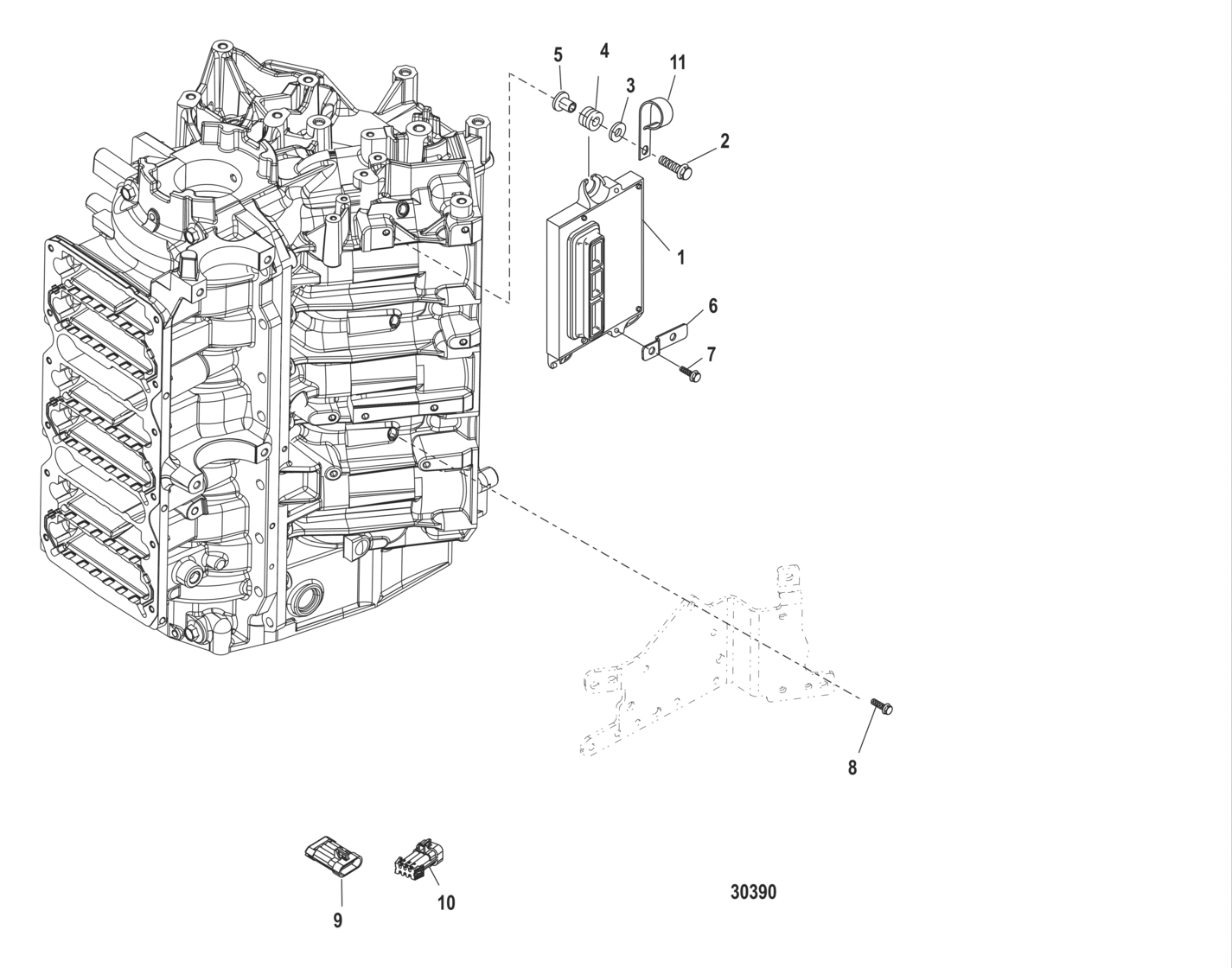

Pcm Mounting Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M8025140 Pcm Propulsion Control Module200 XS ROS |
8M8025140 |
US $2,863.79 |
||
|
2
|
2
82130025 Screw |
82130025 |
US $3.47 |
||
|
3
|
3
65567 Washer, stainless steel |
65567 |
US $2.24 |
||
|
4
|
4
834985 Grommet |
834985 |
US $4.08 |
||
|
5
|
5
856954 Bushing |
856954 |
US $6.03 |
||
|
6
|
6
858953 New Genuine Part |
858953 |
US $11.82 |
||
|
7
|
7
82129114 Screw |
82129114 |
US $1.97 |
||
|
8
|
8
82130012 Screw |
82130012 |
US $1.62 |
||
|
9
|
9
830796A04 Connector assembly, weather cap - male |
830796A04 |
US $6.96 |
||
|
10
|
10
877613A02 Connector |
877613A02 |
US $7.18 |
||
|
11
|
11
65292 J clip |
65292 |
US $2.43 |
