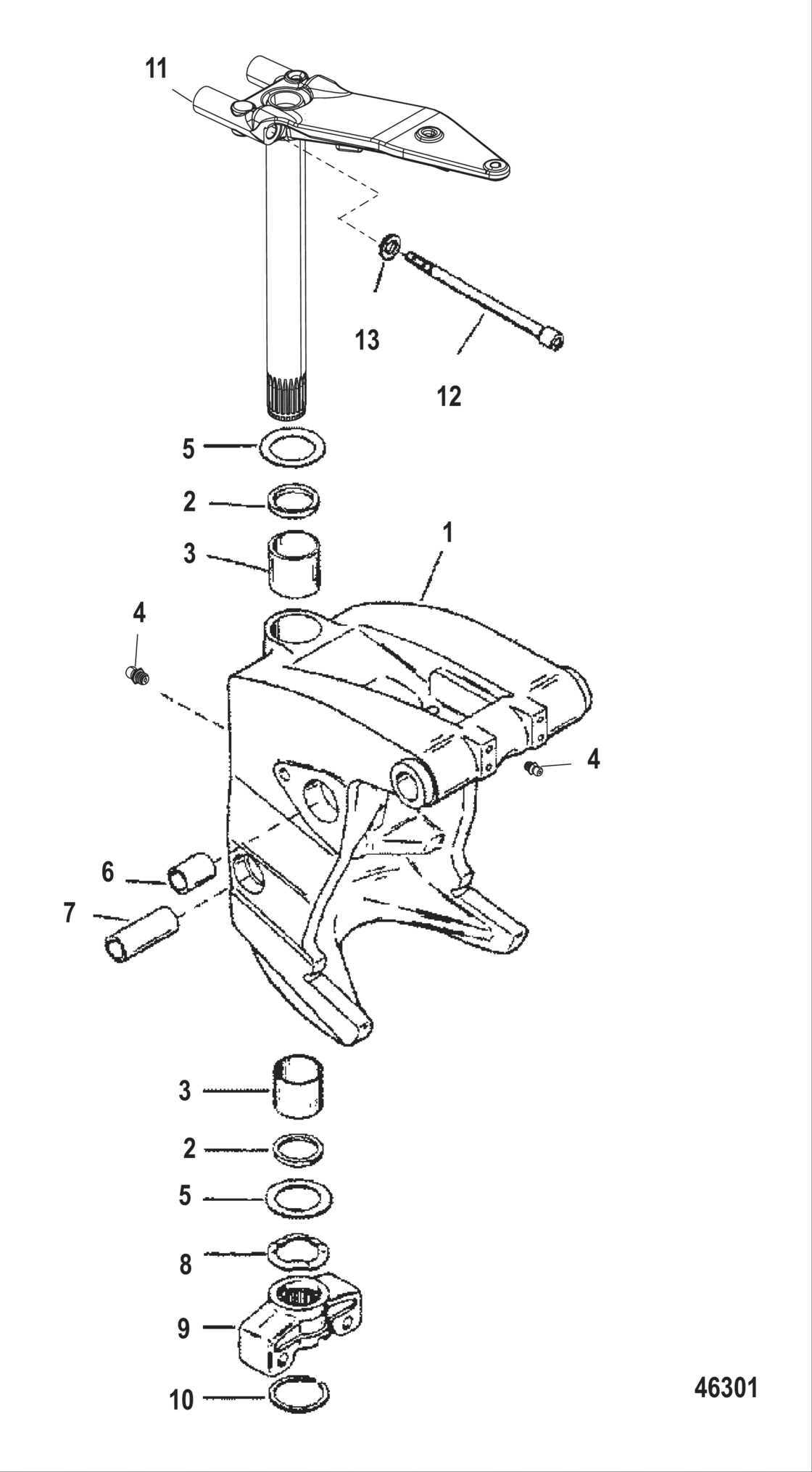

Swivel Bracket (Short) Diagram Mercury-Mercruiser D200 OptiMax
- Engine Capacity
- 2.5
- Power
- 200
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Серийный номер
- 1E050852 & Up
- Серия
- XS ROS
- Кол-в цилиндров
- 6
- Подача топлива
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
818810T16 Swivel Bracket Assembly |
818810T16 |
US $1,956.10 |
||
|
2
|
2
847729 Seal, oil |
847729 |
US $23.66 |
||
|
3
|
3
8M0042131 Bearing |
8M0042131 |
US $45.66 |
||
|
4
|
4
74036 Fitting, grease, gimbal housing |
74036 |
US $4.11 |
||
|
5
|
5
847728 Bearing |
847728 |
US $20.69 |
||
|
6
|
6
82203516 Bearing(Starboard)(1 Inch) |
82203516 |
US $36.24 |
||
|
6
|
6
82203522 Bearing(Port)(1.375 Inches) |
82203522 |
US $36.24 |
||
|
7
|
7
82203540 Bearing (2-1/2 In.) |
82203540 |
US $69.38 |
||
|
8
|
8
78854 Wave washer, bottom yoke |
78854 |
US $10.90 |
||
|
9
|
9
86580F4
New Genuine Part
|
86580F4 |
— | ||
|
10
|
10
848125 Ring, retaining - spiral lock |
848125 |
US $25.47 |
||
|
11
|
11
8M0028057 Swivel Pin (Black) |
8M0028057 |
US $1,200.37 |
||
| replacement | |||||
|
11
|
11
8M0056723 PIN-SWIVEL |
8M0056723 |
US $1,200.37 |
||
|
12
|
12
132121 Screw |
132121 |
US $13.81 |
||
|
13
|
13
816056 Washer |
816056 |
US $3.65 |
||
